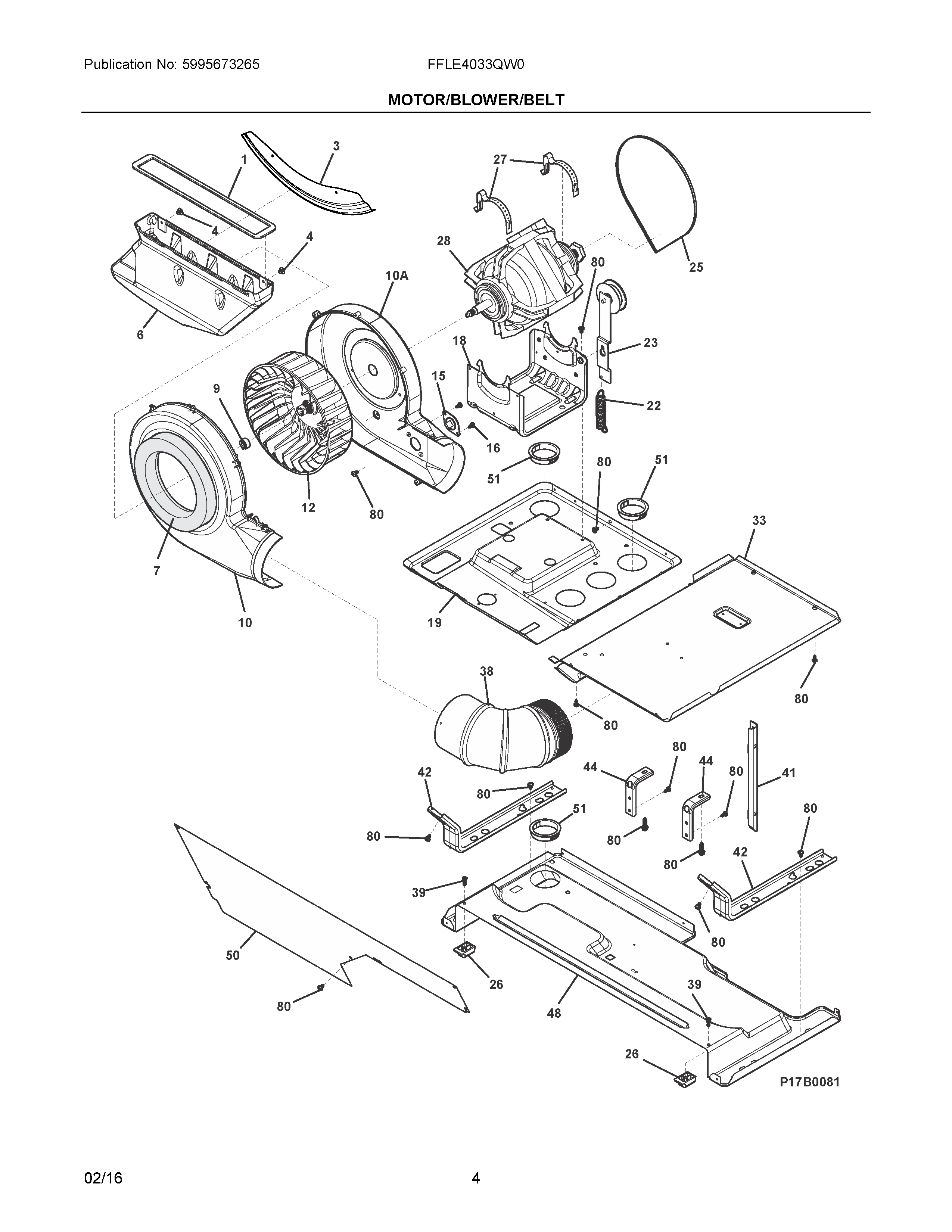

FFLE4033QW0 03 – MOTOR/BLOWER/BELT

FFLE4033QW0 03 – MOTOR/BLOWER/BELT

Written by

in

FFLE4033QW0 03 – MOTOR/BLOWER/BELT

Products

PositionProduct
NIA134101400 Frigidaire Dryer Kit Terminal Block
NIA131362400 Frigidaire Fastener
1131295200 Frigidaire Seal
3137539100 Frigidaire Shield
4CLIP (8)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
95304488479 Frigidaire Washer Hose Clamp
10137551600 Frigidaire Housing
10A137551800 Frigidaire Housing
12BLOWER WHEEL
15134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18131367110 Frigidaire Assembly Motor Cradle
19137490900 Frigidaire Pan
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26137511300 Frigidaire Block
27134242400 Frigidaire Washer Clamp Assembly
28134196602 Frigidaire Washer Dryer Motor
33WCI 131731401
38ELBOW
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
80131168200 Frigidaire Dryer Screw
