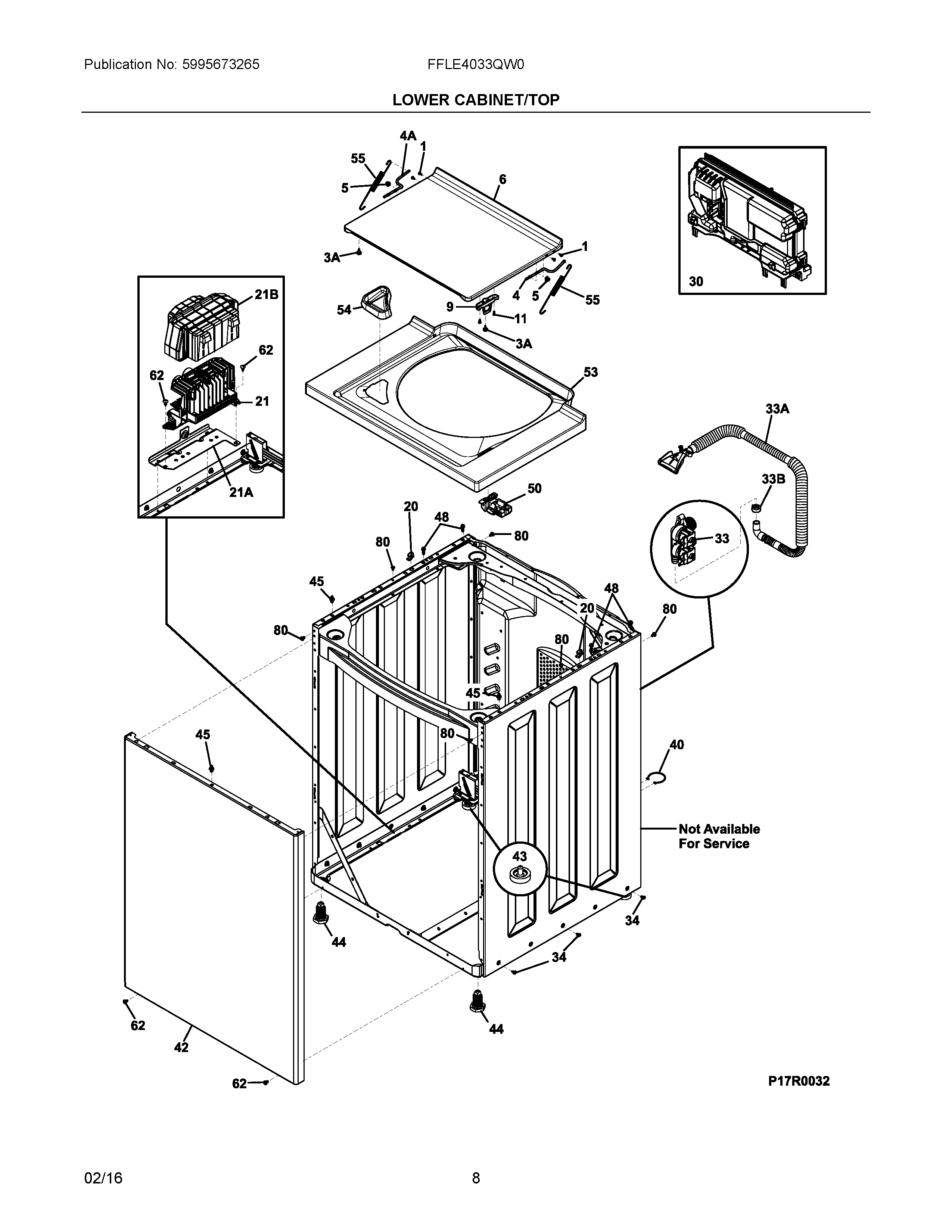

FFLE4033QW0 05 – LOWER CABINET/TOP

Products

Position	Product
NIA	WCI 808702601
NIA	137205500 Frigidaire Bezel
NI	137360821 Frigidaire Protector
NIA	5304500416 Frigidaire Hose
NIA	5304500439 Frigidaire Cover
NIB	5304500476 Frigidaire Harness Assembly
NIA	134178901 Frigidaire Screw
NI	131362400 Frigidaire Fastener
1	134203900 Frigidaire Scr 6-32X.337 Pph D
3A	134075500 Frigidaire Bumper-LID
4A	137470900 Frigidaire Hinge Bar
4	137469900 Frigidaire Hinge Bar
5	5304488483 Frigidaire GROMMET
6	5303212872 Frigidaire Lid
9	137513712 Frigidaire Striker
11	3204368 Frigidaire Screw-Strike
20	3204374 Frigidaire Pin
21B	5304500440 Frigidaire Cover
21A	809161501 Frigidaire Bracket
21	WASHER CONTROL BOARD
30	CONTROL-ELECTRICAL
33A	FILL HOSE
33B	5304488479 Frigidaire Washer Hose Clamp
33	137465101 Frigidaire Washer Water Inlet Valve
34	131205500 Frigidaire Screw
40	5303309503 Frigidaire Clip
42	5304501141 Frigidaire Panel
43	131422200 Frigidaire P-1 Self Level Leg Pad
44	134548800 Frigidaire Washer Leg Levelling
45	131346401 Frigidaire Pin
48	137329800 Frigidaire Screw 12-24 Unc X .
50	WASHER LID LOCK
53	137190810 Frigidaire Panel
54	5304500534 Frigidaire Dispenser
55	134890500 Frigidaire Spring
62	131302800 Frigidaire Drum Vane Screw
80	131168200 Frigidaire Dryer Screw
