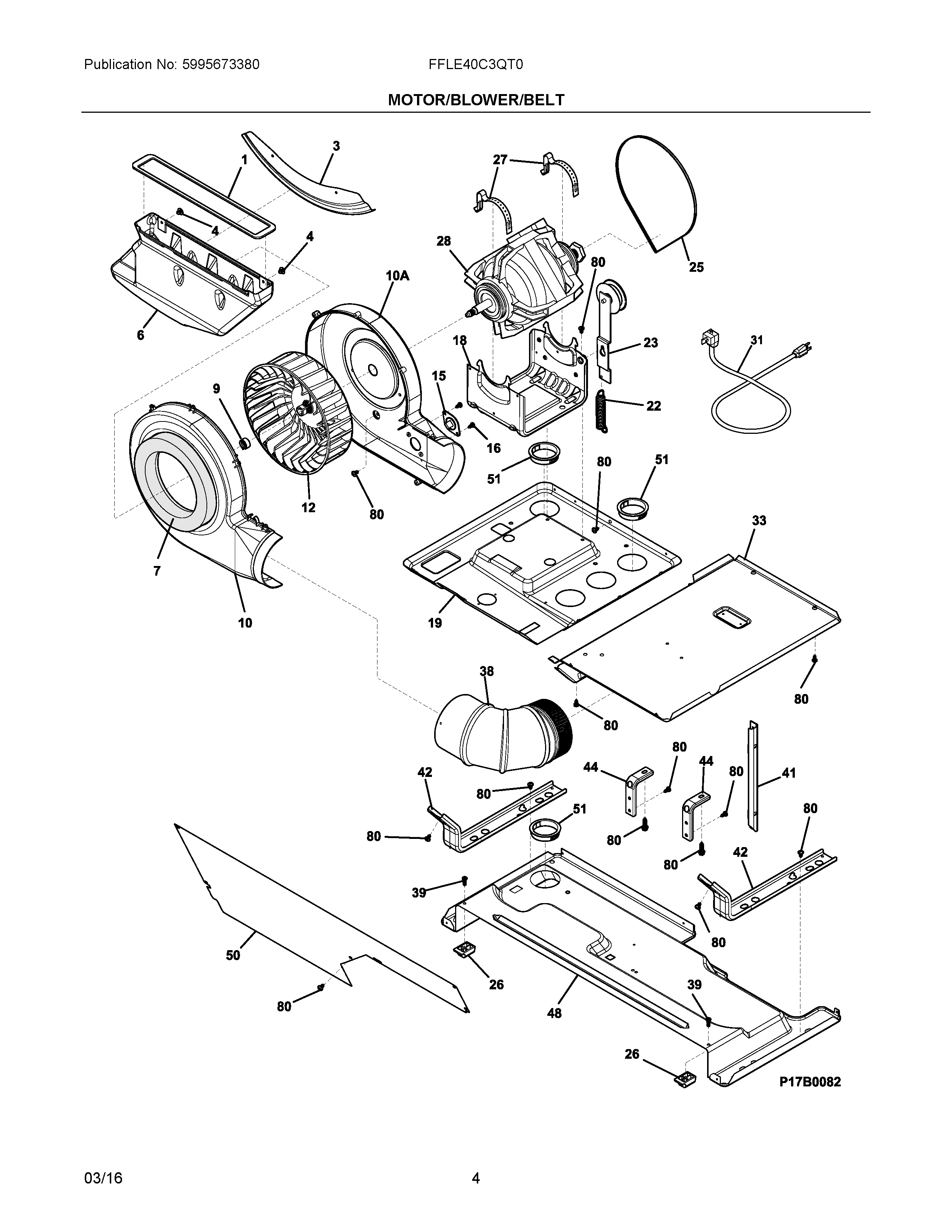

FFLE40C3QT0 03 – MOTOR/BLOWER/BELT

Products

Position	Product
NIA	134101400 Frigidaire Dryer Kit Terminal Block
NIA	131362400 Frigidaire Fastener
1	131295200 Frigidaire Seal
3	137539100 Frigidaire Shield
4	CLIP (8)
6	5304521121 Frigidaire Duct
7	WCI 137390900
9	5304488479 Frigidaire Washer Hose Clamp
10	137551600 Frigidaire Housing
10A	137551800 Frigidaire Housing
12	BLOWER WHEEL
15	134587700 Frigidaire Washer Control Thermistor
16	131243700 Frigidaire Screw
18	131367110 Frigidaire Assembly Motor Cradle
19	137490900 Frigidaire Pan
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	137511300 Frigidaire Block
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	WCI 137110200
33	WCI 131731401
38	ELBOW, EXHAUST DUCT
39	131205100 Frigidaire Screw
41	131091300 Frigidaire Bracket
42	137304710 Frigidaire Bracket
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	5304488478 Frigidaire Cover
51	131453000 Frigidaire Bushing
80	131168200 Frigidaire Dryer Screw
