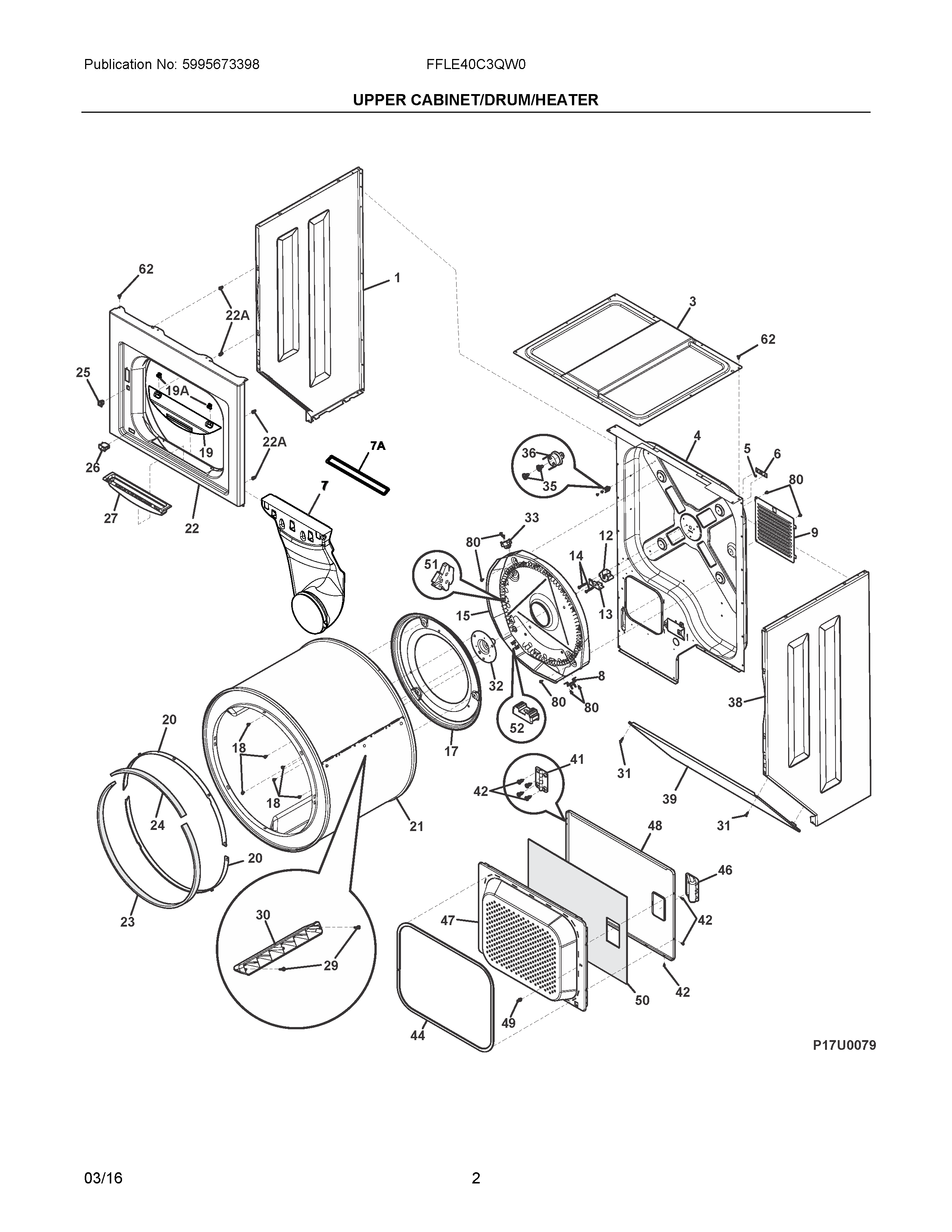

FFLE40C3QW0 02 – UPPER CABINET/DRUM/HEATER

FFLE40C3QW0 02 – UPPER CABINET/DRUM/HEATER

Written by

in

FFLE40C3QW0 02 – UPPER CABINET/DRUM/HEATER

Products

PositionProduct
NI137352600 Frigidaire Harness
NIAWCI 137604901
NIA131295200 Frigidaire Seal
NIA137576600 Frigidaire Dryer Hole Plug Light
1137510410 Frigidaire Panel
3131883301 Frigidaire Panel
4WCI 137491301
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
75304521121 Frigidaire Duct
8THERMAL LIMITER – GAS
95304488480 Frigidaire Panel
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15137392700 Frigidaire Dryer Heating Element Assembly
173204254 Frigidaire Baffle Assembly
18131168200 Frigidaire Dryer Screw
19131729301 Frigidaire Cover
19ACLIP (8)
20137513300 Frigidaire Dryer Drum Glide
21134122556 Frigidaire Drum
22137552111 Frigidaire Panel
22A137362600 Frigidaire Pin
235303937183 Frigidaire Dryer Lower Front Felt Seal
245303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813600 Frigidaire Dryer Door Switch
27LINT FILTER
29131382300 Frigidaire Screw-VANE
30137552902 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
35131892100 Frigidaire Screw
36134120900 Frigidaire Dryer Limiter Thermal
38137510510 Frigidaire Panel
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131789400 Frigidaire Handle
47137365110 Frigidaire Panel
48137408403 Frigidaire Panel Assembly
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
51131472100 Frigidaire Dryer Insulator Heater Coil
523202786 Frigidaire Terminal Block
62131302800 Frigidaire Drum Vane Screw
