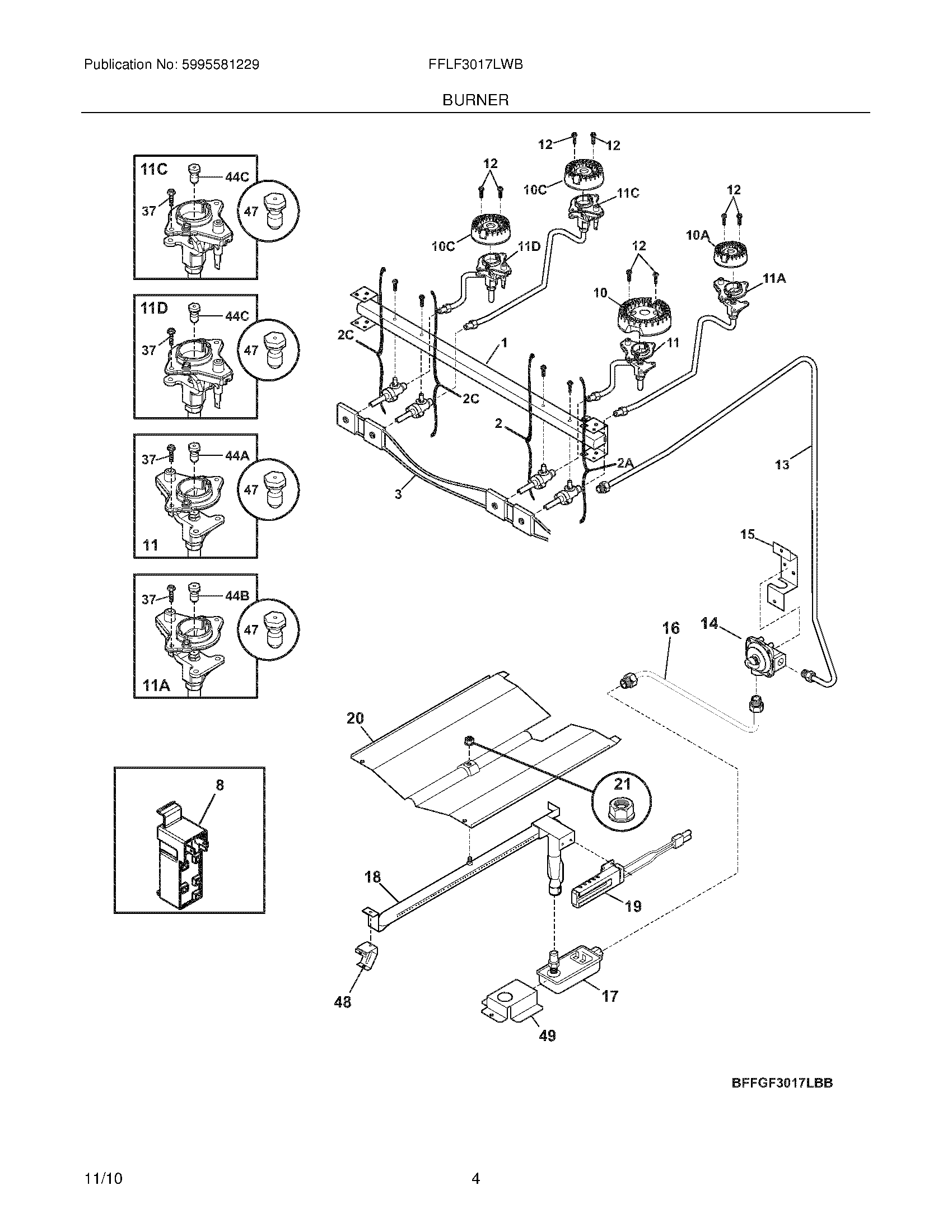

FFLF3017LWB 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	WCI 316566900
NI	5304535516 Frigidaire Range Harness-Igniter
NI	316021109 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	316257400 Frigidaire Oven Bracket
NI	316215600 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316417900 Frigidaire Pipe Manifold
2A	WCI 5303935353
2	WCI 5303935355
2C	WCI 5303935354
3	316580611 Frigidaire Harness Igniters
8	808608802 Frigidaire Oven Spark Ignition Four Pole
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10A	316438200 Frigidaire Range Sealed Burner, 5K
10	316438000 Frigidaire Sealed Burner 12K Assembly
11	WCI 316536609
11C	WCI 316536604
11D	316536606 Frigidaire Igniter/Orifice Assembly
11A	WCI 316536611
12	316540900 Frigidaire Oven Screw
13	5304513126 Frigidaire Oven Tube
14	316416702 Frigidaire Oven Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44B	316527505 Frigidaire Oven Orifice
44C	316527501 Frigidaire Oven Orifice
44A	316527503 Frigidaire Oven Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
