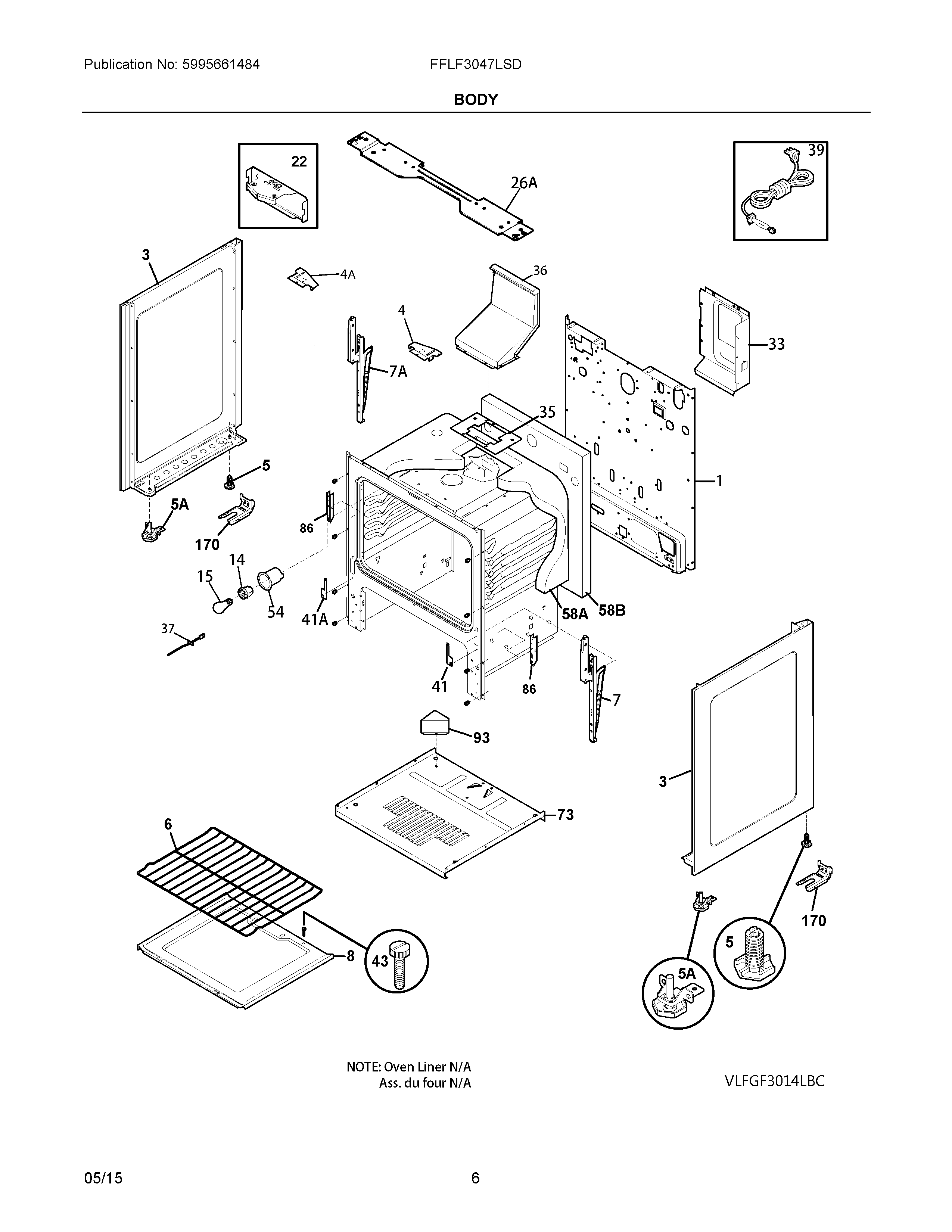

FFLF3047LSD 04 – BODY

FFLF3047LSD 04 – BODY

Written by

in

FFLF3047LSD 04 – BODY

Products

PositionProduct
NI5304491650 Frigidaire Block
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316539800 Frigidaire Oven Retainer
NI316580100 Frigidaire Wire Harness Main
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIWASHER-BLACK
NI316418901 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIB316116000 Frigidaire Screw
NI316279600 Frigidaire Screw
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
NIA316064600 Frigidaire Oven Support
NI316021105 Frigidaire Oven Screw
1WCI 316029419
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4AWCI 316285001
4316285000 Frigidaire Maintop Bracket
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316067902 Frigidaire Oven Rack
7A316566207 Frigidaire Oven Hinge
7316566206 Frigidaire Oven Hinge
8WCI 316495901
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
22316286300 Frigidaire Bodyside Bracket
26A316498200 Frigidaire Oven Bracket
33WCI 316055600
35316542102 Frigidaire Flue Gasket
36FLUE
37316233903 Frigidaire Range Oven Temperature Sensor
395304515659 Frigidaire Oven Power Cord
41AWCI 316233500
41WCI 316233400
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58B316054202 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
73WCI 316109902
86316441300 Frigidaire Receptacle
93WCI 316110000
