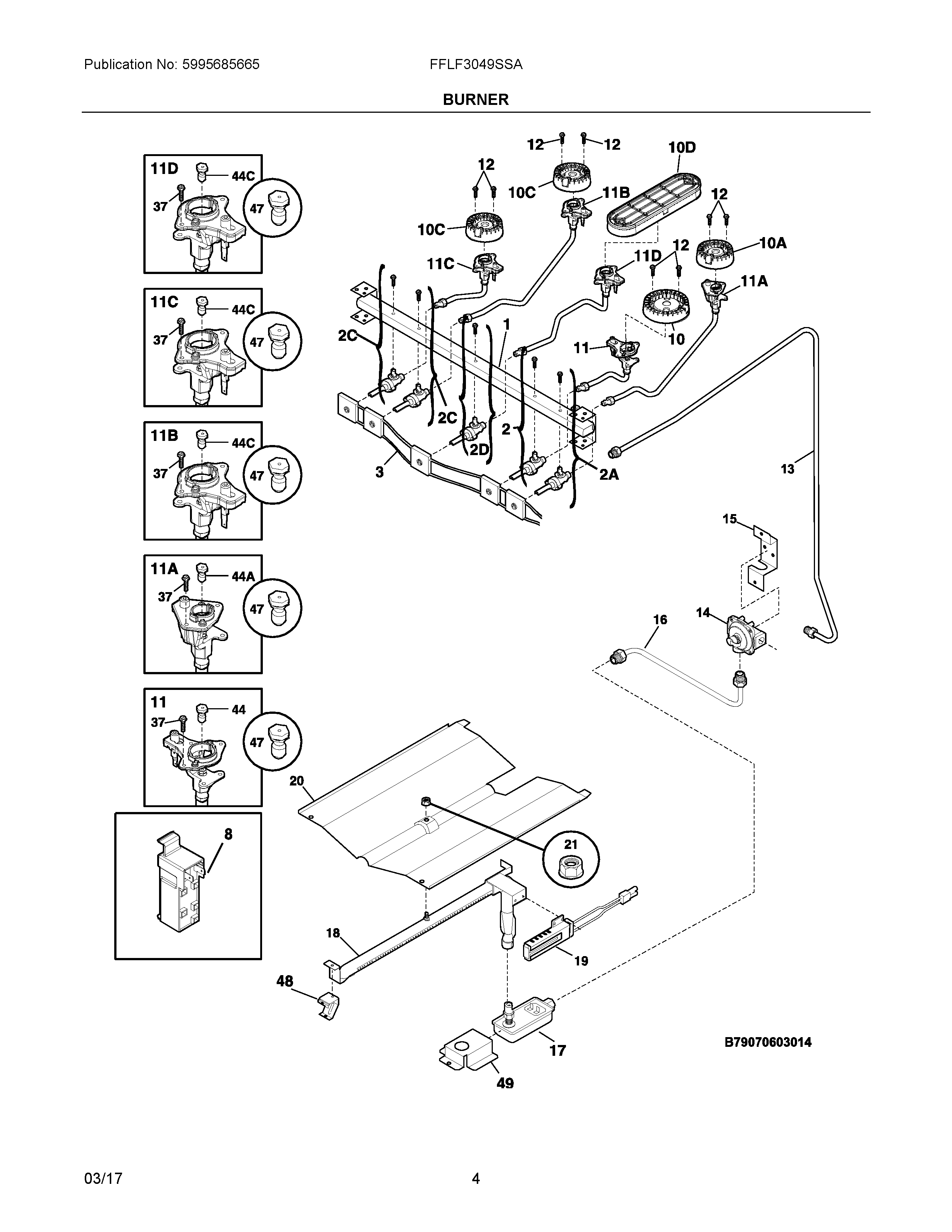

FFLF3049SSA 03 – BURNER

Products

Position	Product
NIA	316021104 Frigidaire Oven Screw Assembly
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NIA	316021109 Frigidaire Oven Screw
NI	5304494425 Frigidaire Oven Harness
NI	5303271648 Frigidaire Oven Screw
NIB	316257400 Frigidaire Oven Bracket
NI	316021105 Frigidaire Oven Screw
NI	316215600 Frigidaire Oven Screw
1	316417901 Frigidaire Oven Manifold
2C	5304506553 Frigidaire Valve
2A	5304506552 Frigidaire Valve
2	WCI 5304507061
2D	WCI 5304507062
3	5304528828 Frigidaire Harness
8	SPARK MODULE
10D	316559300 Frigidaire Oven Burner
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438600 Frigidaire Range Sealed Burner, 14K
10A	316438200 Frigidaire Range Sealed Burner, 5K
11A	WCI 316536611
11D	316536624 Frigidaire Igniter Orifice Assembly
11C	WCI 316536604
11	WCI 316536615
11B	316536606 Frigidaire Igniter/Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	5304512535 Frigidaire Oven Tube
14	WCI 316091712
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44C	316527501 Frigidaire Oven Orifice
44A	316527505 Frigidaire Oven Orifice
44	316527512 Frigidaire Oven Orifice
47	GRLP4 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
