FFLF3052USA 03 – BURNER

FFLF3052USA 03 – BURNER

Written by

in

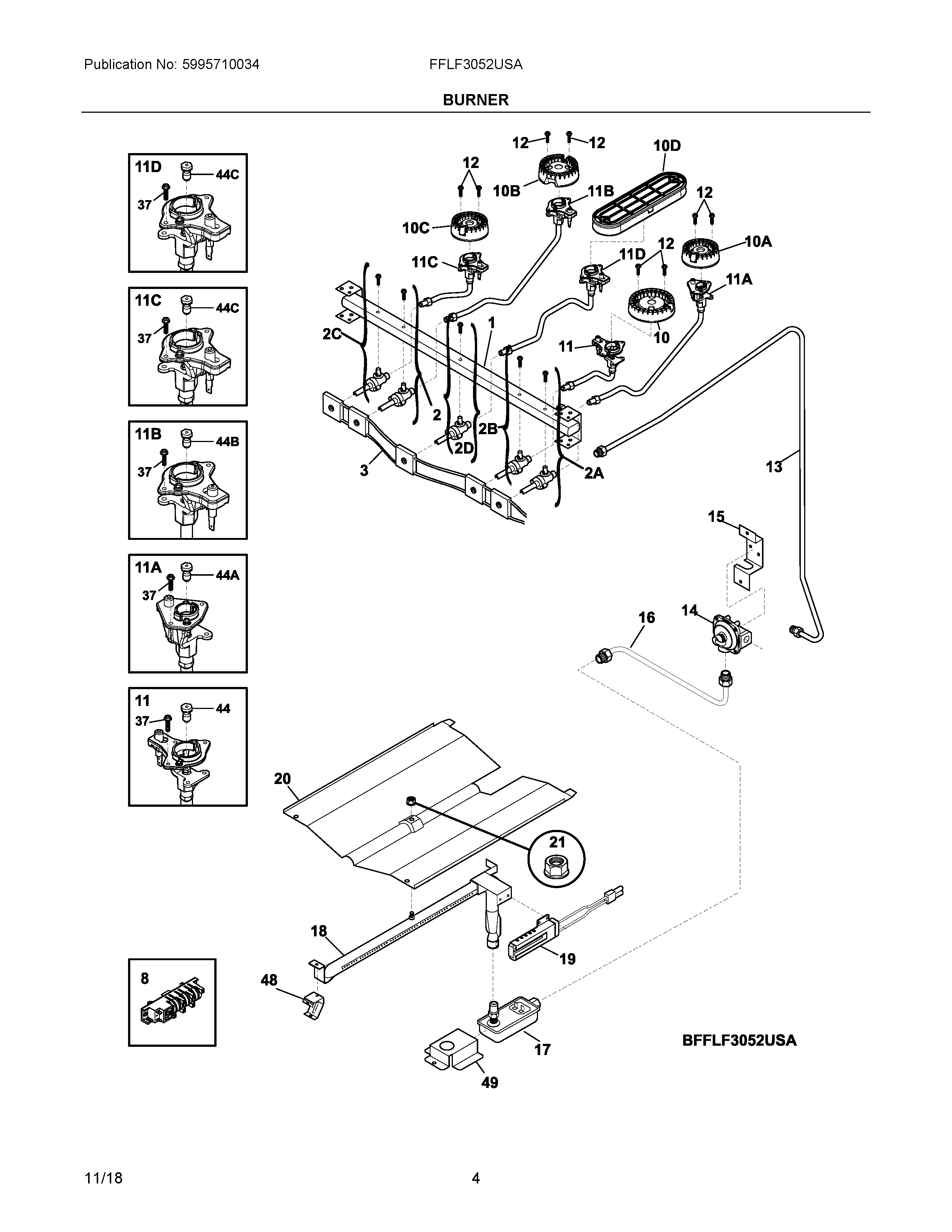

FFLF3052USA 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NIC316021109 Frigidaire Oven Screw
NIA5304494425 Frigidaire Oven Harness
NI5303271648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NIB5304505563 Frigidaire Oven Wire
15304513540 Frigidaire Oven Manifold
2C5304506553 Frigidaire Valve
2BWCI 5304507061
2A5304506552 Frigidaire Valve
2DWCI 5304507062
2WCI 5304506554
35304506557 Frigidaire Oven Harness
8SPARK MODULE
10B316438000 Frigidaire Sealed Burner 12K Assembly
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
10D316559300 Frigidaire Oven Burner
11WCI 316536620
11AWCI 316536611
11D316536624 Frigidaire Igniter Orifice Assembly
11C316536606 Frigidaire Igniter/Orifice Assembly
11B316536613 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
135304512535 Frigidaire Oven Tube
14REGULATOR, PRESSURE, LP
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44316527507 Frigidaire Oven Orifice
44A316527505 Frigidaire Oven Orifice
44C316527501 Frigidaire Oven Orifice
44B316527503 Frigidaire Oven Orifice
48WCI 3018603
49WCI 316416300
