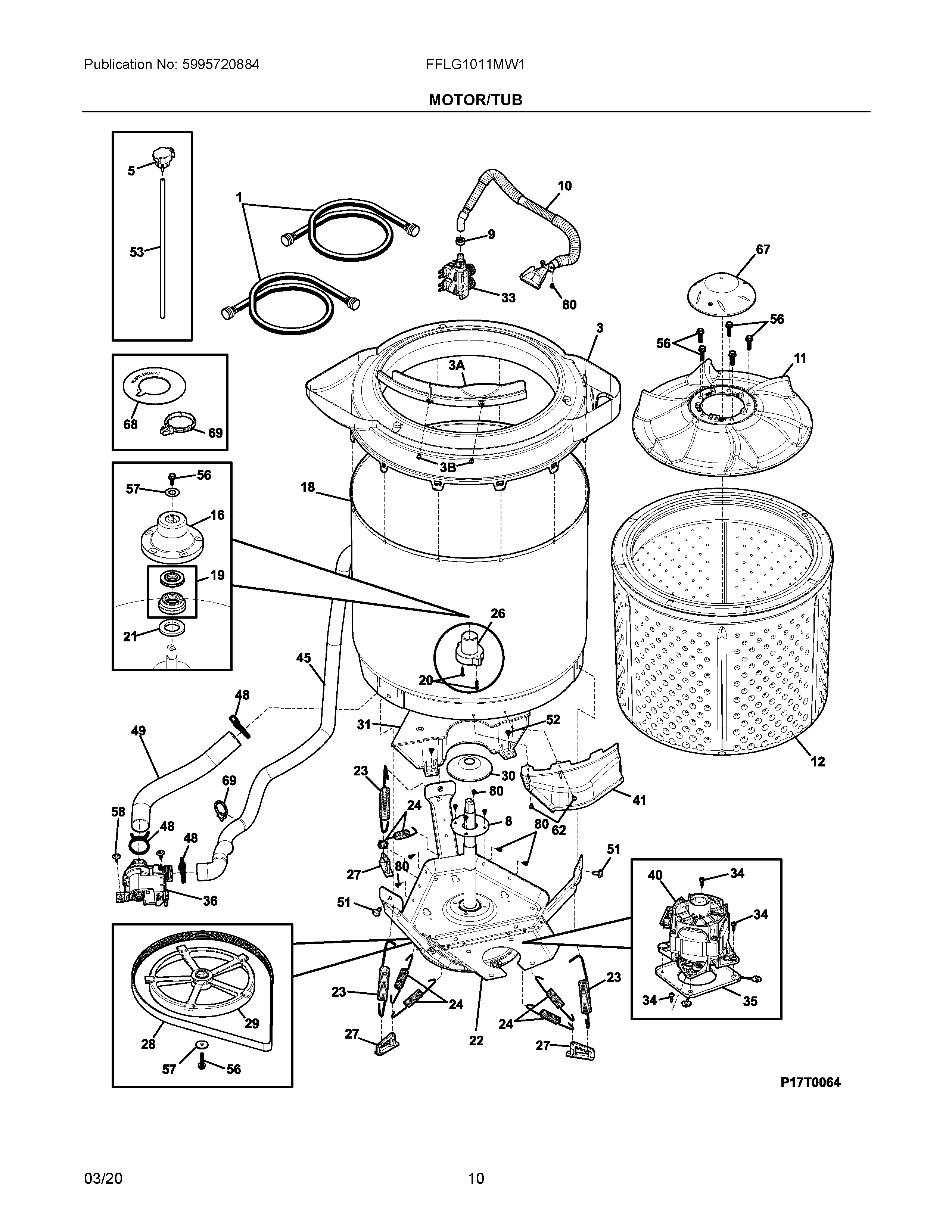

FFLG1011MW1 06 – MOTOR/TUB

Products

Position	Product
NIA	131901400 Frigidaire Seal
NIB	WCI 131663500
NID	WCI 134745300
NIB	WCI 137457100
NIC	134261300 Frigidaire Clip
NIA	131453000 Frigidaire Bushing
1	Hose,water inlet ,4 ft. ,hose & washer
3	5304504977 Frigidaire Cover
3A	WCI 137419200
5	137055800 Frigidaire Pressure Sensor
8	WCI 137363400
9	5304488479 Frigidaire Washer Hose Clamp
10	137308000 Frigidaire Washer Hose
11	WCI 137494000
12	WCI 137492900
16	137489100 Frigidaire Trunnion
18	WCI 137326200
19	WCI 137547700
20	3205150 Frigidaire Tub Bearing Screw
21	WCI 137272000
22	WCI 137513900
23	134885900 Frigidaire Spring
24	WCI 137272300
26	WCI 137466100
27	WCI 137491600
28	137051400 Frigidaire Belt Assembly
29	137489000 Frigidaire Drive Pulley
30	WCI 137049800
31	WCI 137466600
33	137353500 Frigidaire Valve Coil 2
34	WCI 137470600
35	WCI 137510300
36	137221600 Frigidaire Washer Drain Pump
40	137326000 Frigidaire Motor
40A	137324300 Frigidaire Wiring Harness
41	WCI 137282900
45	134592700 Frigidaire Washer Drain Hose
48	131306234 Frigidaire Clamp Pump
49	131494800 Frigidaire Hose-Pump P1 to Tub
51	WCI 137466300
52	131202300 Frigidaire Screw
53	5304401845 Frigidaire Tube Pressure
56	137050600 Frigidaire Screw 5/16-18-2A Un
57	134716700 Frigidaire Washer
58	134160900 Frigidaire Screw
62	131302800 Frigidaire Drum Vane Screw
67	WCI 137193200
68	131707800 Frigidaire Drain Hose Ring
69	5303309503 Frigidaire Clip
80	137511100 Frigidaire Screw
