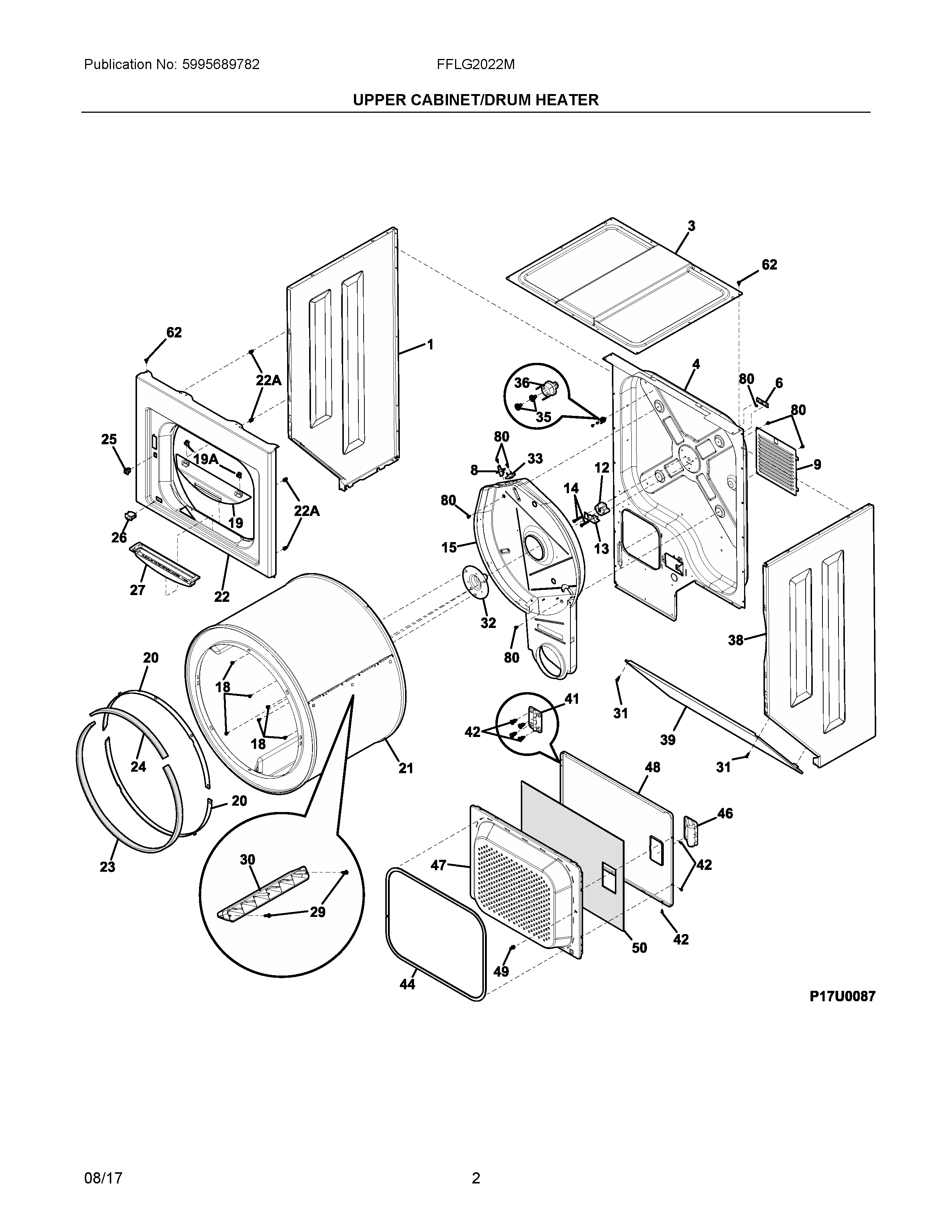

FFLG2022MW2 02 – UPPER CABINET/DRUM HEATER

Products

Position	Product
NI	5304510071 Frigidaire Harness
NI	137352600 Frigidaire Harness
NIA	137576600 Frigidaire Dryer Hole Plug Light
1	137510410 Frigidaire Panel
3	131883301 Frigidaire Panel
4	WCI 137491301
6	5303281020 Frigidaire Ball Clip
8	THERMAL LIMITER – GAS
9	5304488480 Frigidaire Panel
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	137470801 Frigidaire Heater Housing
18	131168200 Frigidaire Dryer Screw
19A	CLIP (8)
19	131729301 Frigidaire Cover
20	137513300 Frigidaire Dryer Drum Glide
21	DRUM, LC GALV GD
22	WCI 137511811
22A	137362600 Frigidaire Pin
23	5303937183 Frigidaire Dryer Lower Front Felt Seal
24	5303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813600 Frigidaire Dryer Door Switch
27	LINT FILTER
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	5304406099 Frigidaire Safety Thermostat
35	131243700 Frigidaire Screw
36	134120900 Frigidaire Dryer Limiter Thermal
38	137510510 Frigidaire Panel
39	137546910 Frigidaire Panel
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	131789400 Frigidaire Handle
47	137365110 Frigidaire Panel
48	137408403 Frigidaire Panel Assembly
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
62	131302800 Frigidaire Drum Vane Screw
