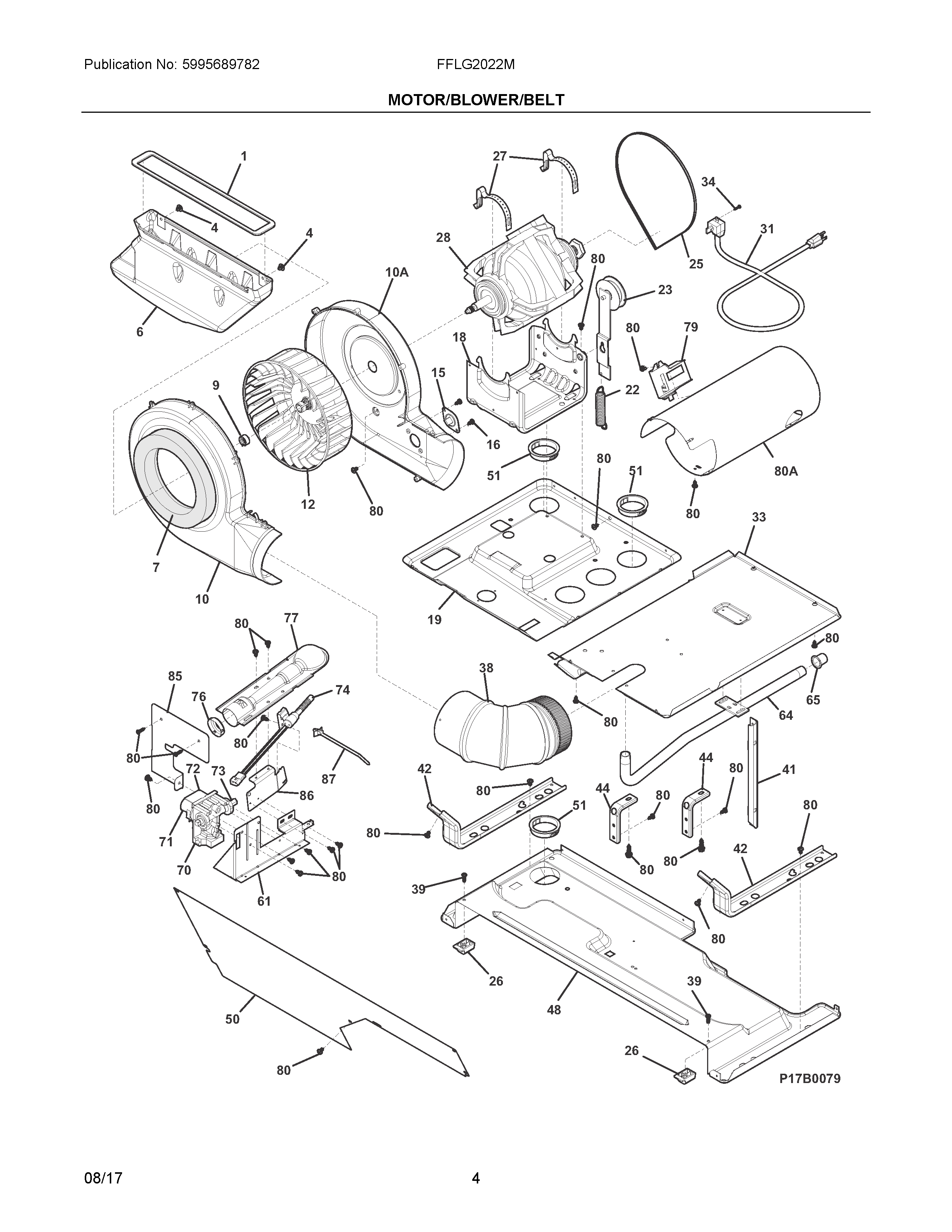

FFLG2022MW3 03 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	PCK3100 Frigidaire Conversion Kit
1	131295200 Frigidaire Seal
4	CLIP (8)
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	134611700 Frigidaire Housing
10A	137551800 Frigidaire Housing
12	BLOWER WHEEL
15	134587700 Frigidaire Washer Control Thermistor
16	131243700 Frigidaire Screw
18	131367110 Frigidaire Assembly Motor Cradle
19	137490900 Frigidaire Pan
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	137511300 Frigidaire Block
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	134500500 Frigidaire Power Cord
33	SHIELD-ACCESS
34	134154100 Frigidaire Screw 10-32 x 0.375 Co
38	ELBOW
39	131205100 Frigidaire Screw
41	131091300 Frigidaire Bracket
42	137304710 Frigidaire Bracket
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	5304488478 Frigidaire Cover
51	131453000 Frigidaire Bushing
61	WCI 5303309493
64	137076300 Frigidaire Pipe
65	08015112 Frigidaire CAP
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	5304517325 IGNITOR
76	134714401 Frigidaire Collar
77	134197700 Frigidaire Burner
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80	131168200 Frigidaire Dryer Screw
80A	131712405 Frigidaire Tube
85	134287301 Frigidaire SHIELD
86	134264800 Frigidaire Plate
87	5304528020 Frigidaire Cable Tie
