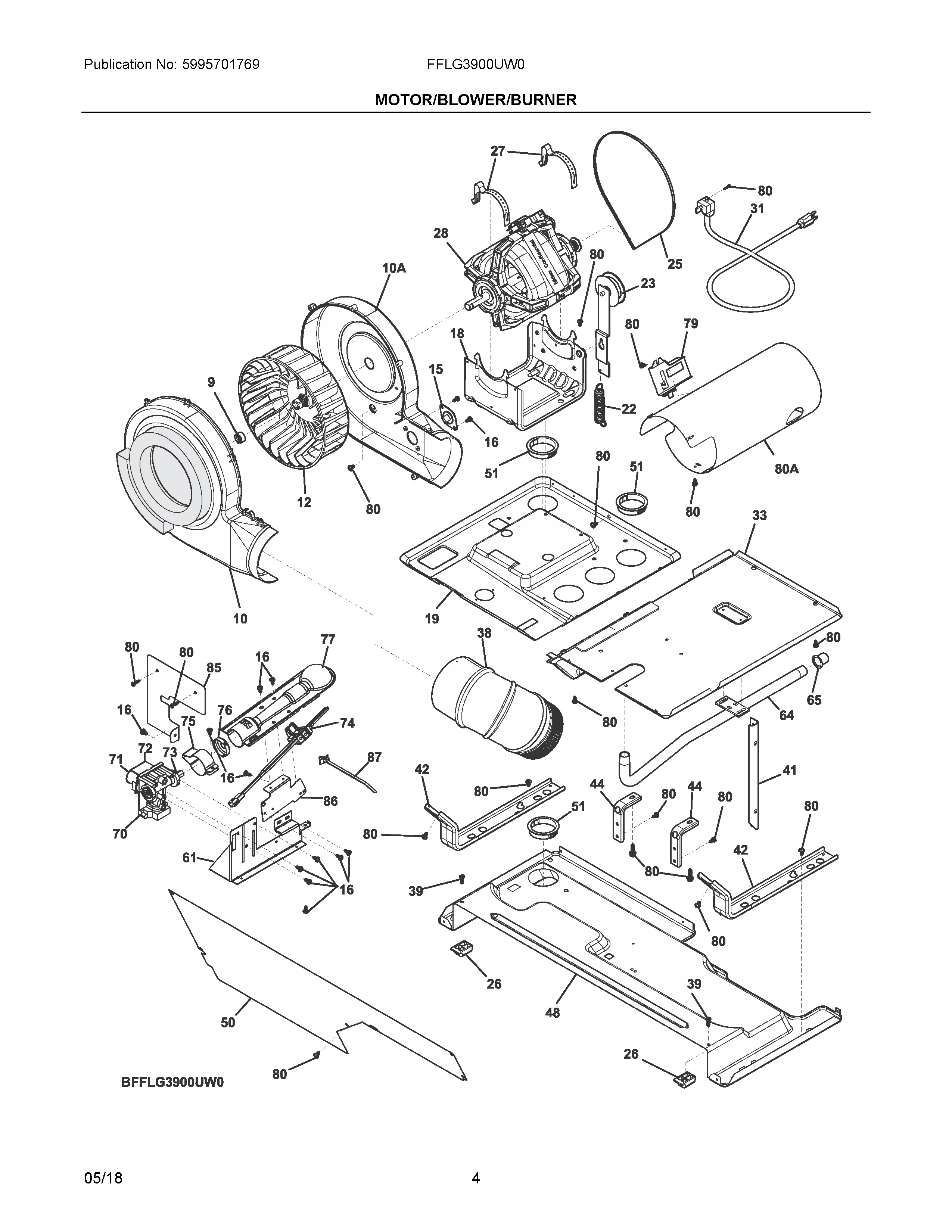

FFLG3900UW0 03 – MOTOR/BLOWER/BURNER

FFLG3900UW0 03 – MOTOR/BLOWER/BURNER

Written by

in

FFLG3900UW0 03 – MOTOR/BLOWER/BURNER

Products

PositionProduct
NI134402900 Frigidaire Screw
NIA5304521438 Frigidaire Wiring Harness
NIPCK3100 Frigidaire Conversion Kit
NIA137212300 Frigidaire Gasket
95304488479 Frigidaire Washer Hose Clamp
10A137551800 Frigidaire Housing
105304515916 Frigidaire Housing Assembly
12BLOWER WHEEL
15134587700 Frigidaire Washer Control Thermistor
16131243700 Frigidaire Screw
18131367110 Frigidaire Assembly Motor Cradle
19137490900 Frigidaire Pan
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26137511300 Frigidaire Block
27134242400 Frigidaire Washer Clamp Assembly
28134196602 Frigidaire Washer Dryer Motor
31134500500 Frigidaire Power Cord
33BAFFLE, ASSEMBLY, W/FELT SEAL
38ELBOW, EXHAUST DUCT
39131205100 Frigidaire Screw
41131091300 Frigidaire Bracket
42137304710 Frigidaire Bracket
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
505304488478 Frigidaire Cover
51131453000 Frigidaire Bushing
61WCI 5303309493
64137076300 Frigidaire Pipe
6508015112 Frigidaire CAP
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
74IGNITER
75134258500 Frigidaire Air Shutter
76134714401 Frigidaire Collar
77134197701 Frigidaire Burner
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131168200 Frigidaire Dryer Screw
80A131712405 Frigidaire Tube
85134287301 Frigidaire SHIELD
86BRACKET, IGNITOR
875304528020 Frigidaire Cable Tie
