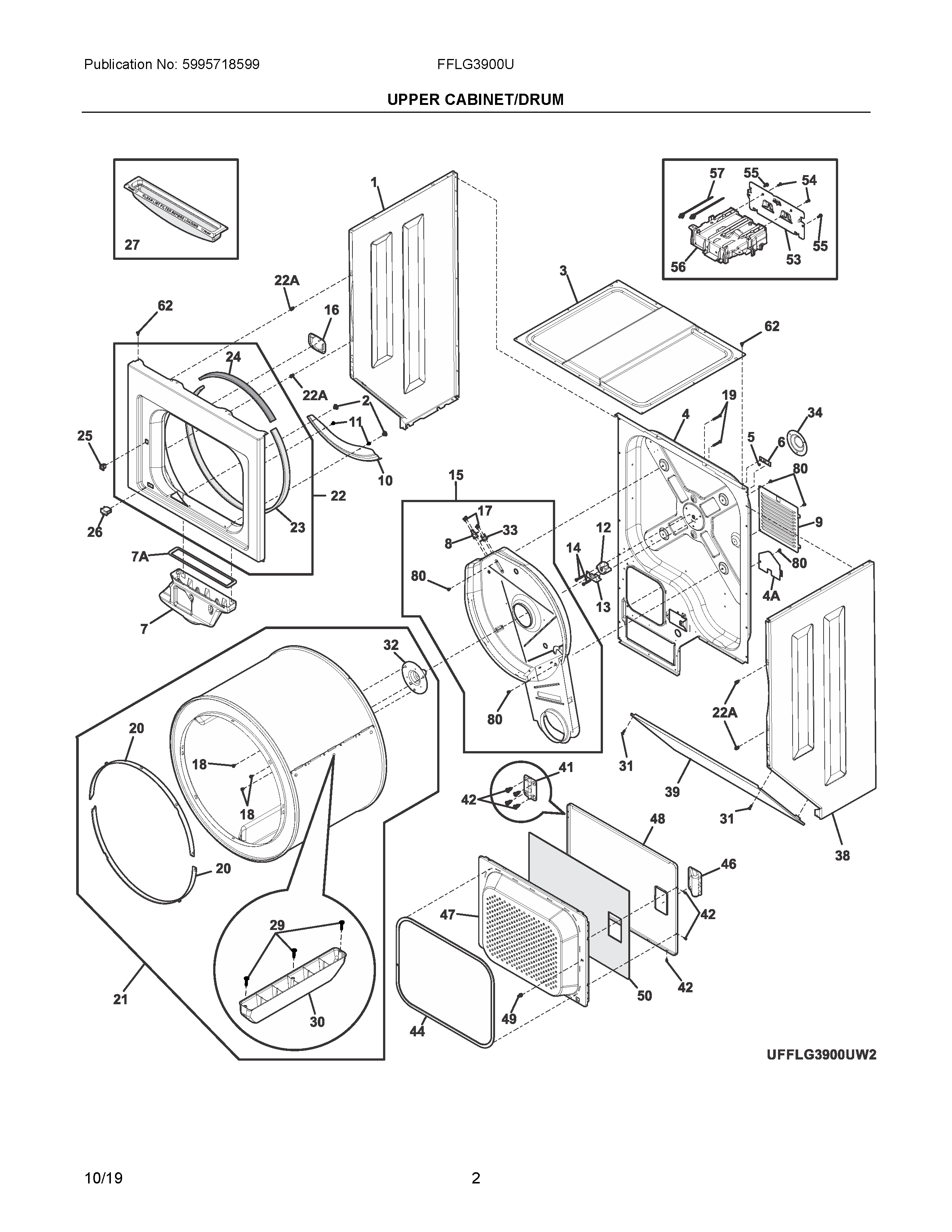

FFLG3900UW5 02 – UPPER CABINET/DRUM

FFLG3900UW5 02 – UPPER CABINET/DRUM

Products

PositionProduct
NIA5304520336 Frigidaire Wiring Harness
NIA5304505258 Frigidaire Harness
NI5304523160 Frigidaire Wiring Harness
NI134154100 Frigidaire Screw 10-32 x 0.375 Co
NI5304523161 Frigidaire Wiring Harness
1137510410 Frigidaire Panel
2131362400 Frigidaire Fastener
3131883301 Frigidaire Panel
4A137389801 Frigidaire Cover
45304500431 Frigidaire Panel
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
7A131295200 Frigidaire Seal
75304523177 Frigidaire Duct Assembly
8THERMAL LIMITER - GAS
95304488480 Frigidaire Panel
10137539100 Frigidaire Shield
11131168200 Frigidaire Dryer Screw
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15137470801 Frigidaire Heater Housing
16137576600 Frigidaire Dryer Hole Plug Light
17131243700 Frigidaire Screw
185304502598 Frigidaire Screw
20137513300 Frigidaire Dryer Drum Glide
215304517316 Frigidaire Drum Assembly
22A137362600 Frigidaire Pin
225304517315 Frigidaire Panel
235303937183 Frigidaire Dryer Lower Front Felt Seal
245303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813663 Frigidaire Washer Switch
27LINT FILTER
29131382300 Frigidaire Screw-VANE
305304515811 Frigidaire Vane
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
335304406099 Frigidaire Safety Thermostat
345304506372 Frigidaire Cover Plate
38137510510 Frigidaire Panel
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131789400 Frigidaire Handle
47137365110 Frigidaire Panel
48137408403 Frigidaire Panel Assembly
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
535304515761 Frigidaire Cover Assembly
54131205100 Frigidaire Screw
55137511100 Frigidaire Screw
565304526221 Frigidaire Board
575304515894 Frigidaire Clip
62131302800 Frigidaire Drum Vane Screw
