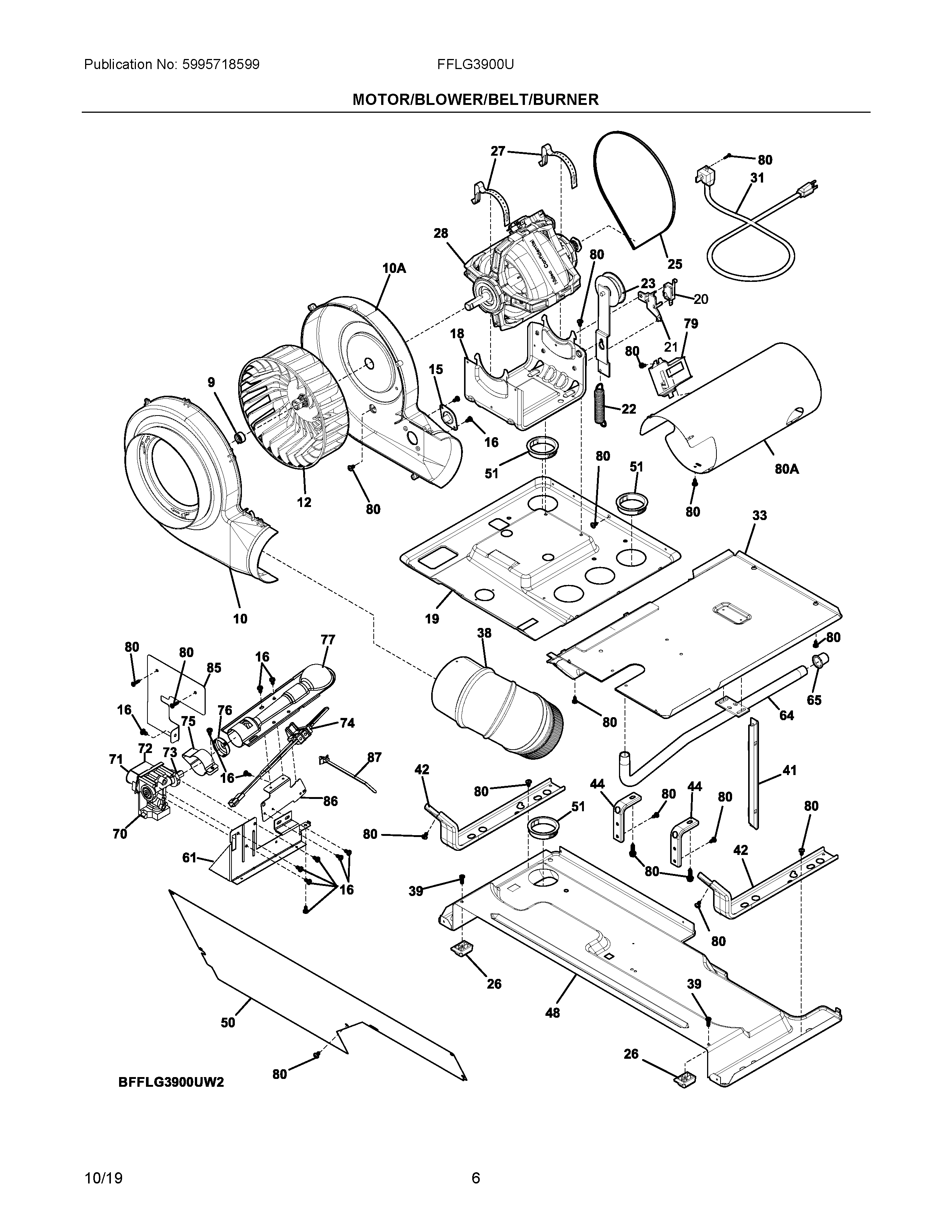

FFLG3900UW5 03 – MOTOR/BLOWER/BELT/BURNER

Products

Position	Product
NI	134402900 Frigidaire Screw
NI	PCK3100 Frigidaire Conversion Kit
NIA	137212300 Frigidaire Gasket
NIA	5304521438 Frigidaire Wiring Harness
9	5304488479 Frigidaire Washer Hose Clamp
10	5304523176 Frigidaire Housing Assembly
10A	137551800 Frigidaire Housing
12	BLOWER WHEEL
15	134587700 Frigidaire Washer Control Thermistor
16	131243700 Frigidaire Screw
18	131367110 Frigidaire Assembly Motor Cradle
19	137490900 Frigidaire Pan
20	5304521496 Frigidaire Limit Switch
21	5304521495 Frigidaire Bracket
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	137511300 Frigidaire Block
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	134500500 Frigidaire Power Cord
33	BAFFLE, ASSEMBLY, W/FELT SEAL
38	5304521383 Frigidaire Elbow
39	131205100 Frigidaire Screw
41	131091300 Frigidaire Bracket
42	137304710 Frigidaire Bracket
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	5304488478 Frigidaire Cover
51	131453000 Frigidaire Bushing
61	WCI 5303309493
64	137076300 Frigidaire Pipe
65	08015112 Frigidaire CAP
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	IGNITER
75	134258500 Frigidaire Air Shutter
76	134714401 Frigidaire Collar
77	134197701 Frigidaire Burner
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80A	131712405 Frigidaire Tube
80	131168200 Frigidaire Dryer Screw
85	134287301 Frigidaire SHIELD
86	BRACKET, IGNITOR
87	5304528020 Frigidaire Cable Tie
