FFLG4033QW0 06 – MOTOR/TUB – Aparts

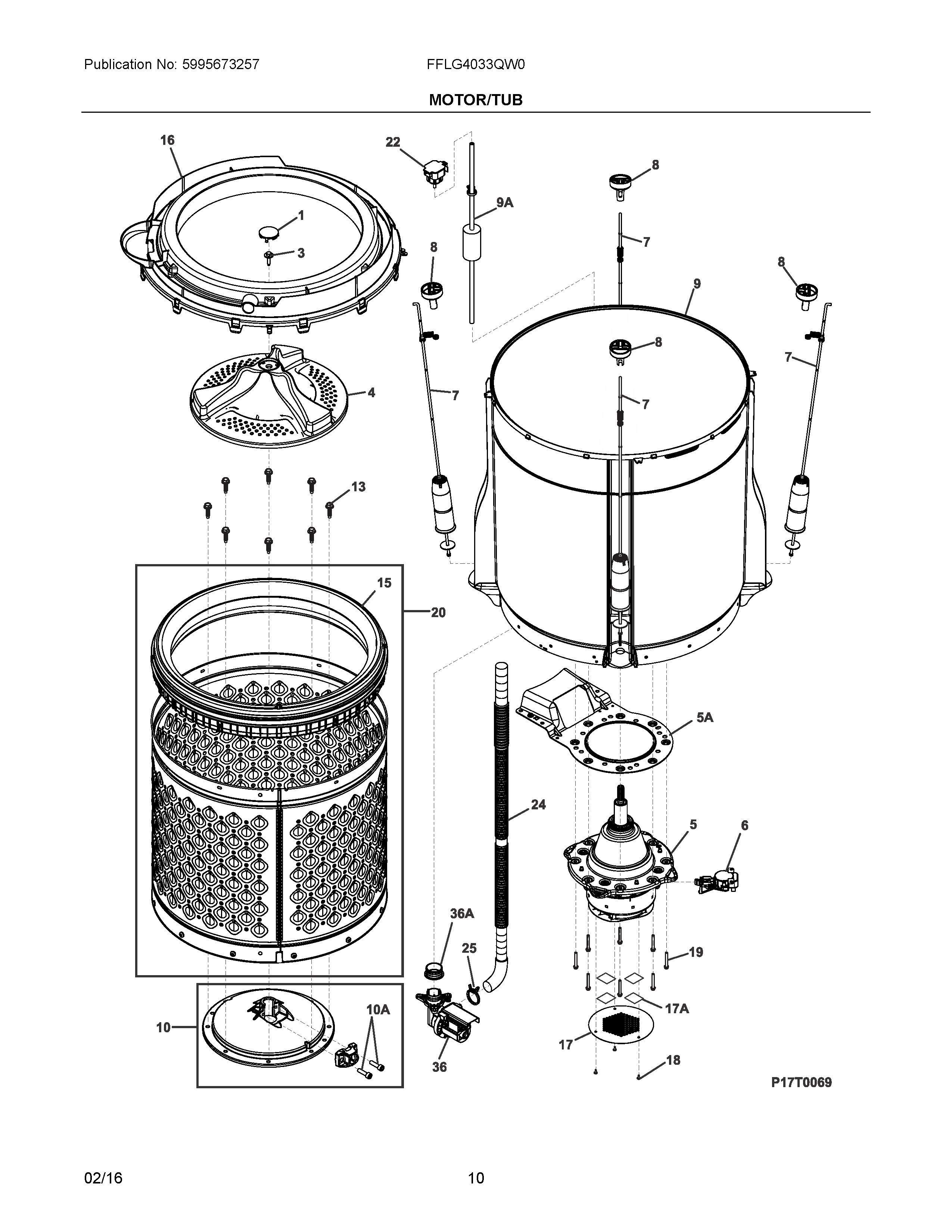

FFLG4033QW0 06 – MOTOR/TUB

Products

Position	Product
NI	5304500823 Frigidaire Harness
NI	5304500575 Frigidaire Screw
NIA	5304500571 Frigidaire Screw
NI	5304500556 Frigidaire Screw
NIA	5304500487 Frigidaire Bracket
NIA	WCI 5304500475
NI	5304500554 Frigidaire Screw Assembly
1	WCI 808676601
3	5304500572 Frigidaire Screw
4	808726001 Frigidaire Agitator
5	5304501142 Frigidaire Trans/Motor/Gear
5A	5304500463 Frigidaire Plate
6	5304536495 Frigidaire Actuator
7	SUSPENSION
8	5304500580 Frigidaire Suspension
9	5304520189 Frigidaire Tub Service Kit
9A	5304500517 Frigidaire Hose
10A	5304500432 Frigidaire Screw Assembly
10	5304500426 Frigidaire Hub Assembly
13	5304504896 Frigidaire Screw
15	809088904 Frigidaire Ring
16	809090501 Frigidaire Cover
17A	WCI 5304500543
17	WCI 5304500519
18	SCREW, MACHINE TRUSS, M4X8
19	5304501446 Frigidaire Screw
20	5304500427 Frigidaire Tub
22	5304504885 Frigidaire Washer Sensor
24	WCI 5304500511
25	CLAMP, HOSE, WIRE
36A	5304500585 Frigidaire Seal Assembly
36	PUMP ASSEMBLY
