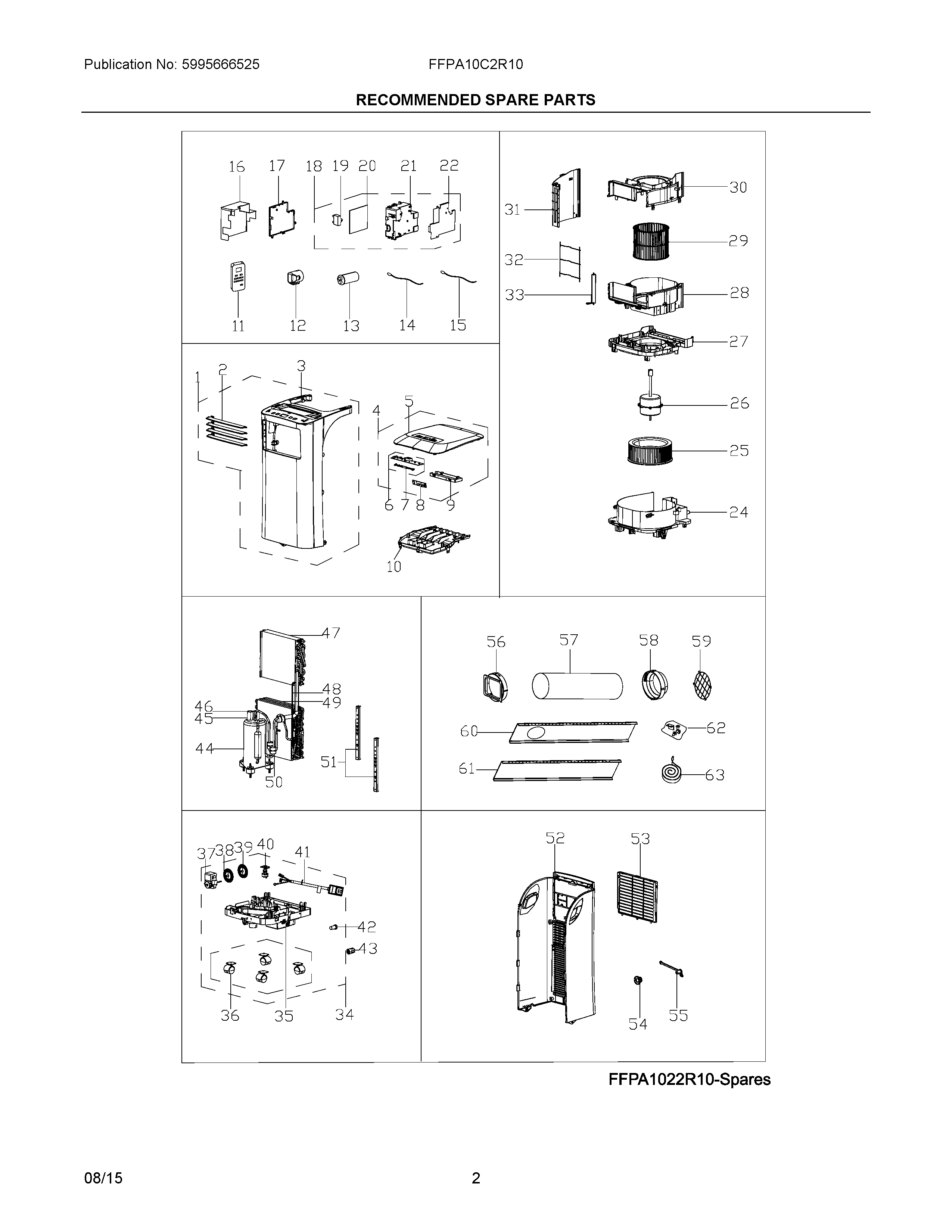

FFPA10C2R10 02 – RECOMMENDED SPARE PARTS

FFPA10C2R10 02 – RECOMMENDED SPARE PARTS

Written by

in

FFPA10C2R10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1PANEL ASSEMBLY, FRONT, W/LOUVERS
2LOUVER, HORIZONTAL
3PANEL, FRONT
4WCI 5304502006
5WCI 5304502007
6WCI 5304502008
7WCI 5304502009
8WCI 5304502010
9WCI 5304502011
10TOP CLAPBOARD, DISPLAY BOX
11WCI 5304502075
12WCI 5304502014
13CAPACITOR, COMPRESSOR
14WCI 5304502016
15WCI 5304502017
16WCI 5304502018
17WCI 5304502019
185304502020 Frigidaire Assembly Control
19CAPACITOR, FAN MOTOR
20WCI 5304502022
21WCI 5304502023
22WCI 5304502024
24WCI 5304502025
255304502026 Frigidaire Air Conditioner Blower
265304502027 Frigidaire Air Conditioner Motor
27COVER, EXHAUST SCROLL
28SCROLL, AIR INLET
29WCI 5304502030
30COVER, SCROLL, AIR INLET
31PANEL, RIGHT SIDE
32GRILLE, AIR OUTLET
33LOUVER, VERTICAL
34WCI 5304502035
35WCI 5304502036
365304502037 Frigidaire Caster
37MOTOR, SLINGER, SHADED POLE
38SLINGER, WATER WHEEL, CONDENSATE
39SLINGER, WATER WHEEL 2
405304502041 Frigidaire Air Conditioner Switch
41POWER CORD
425304502043 Frigidaire Stopper
43COVER, DRAIN CONNECTOR
44COMPRESSOR
45WCI 5304502046
46WCI 5304502047
47WCI 5304502048
48TUBE, CAPILLARY
49WCI 5304502050
50WCI 5304502051
51EXHAUST HOSE, CONDENSER MTG.
52EXHAUST ADAPTER A, CABINET, BACK
535304525555 Frigidaire Grille
545304502055 Frigidaire Connector
555304502056 Frigidaire Plug
565304502057 Frigidaire Air Conditioner Adapter A
57HOSE, EXHAUST
585304502059 Frigidaire Air Conditioner Adapter
595304502060 Frigidaire Air Conditioner Screen
605304502061 Frigidaire Air Conditioner Window Slider-1
615304502062 Frigidaire Air Conditioner Window Slider-2
625304502063 Frigidaire Installation Kit
635304502064 Frigidaire Seal Kit
