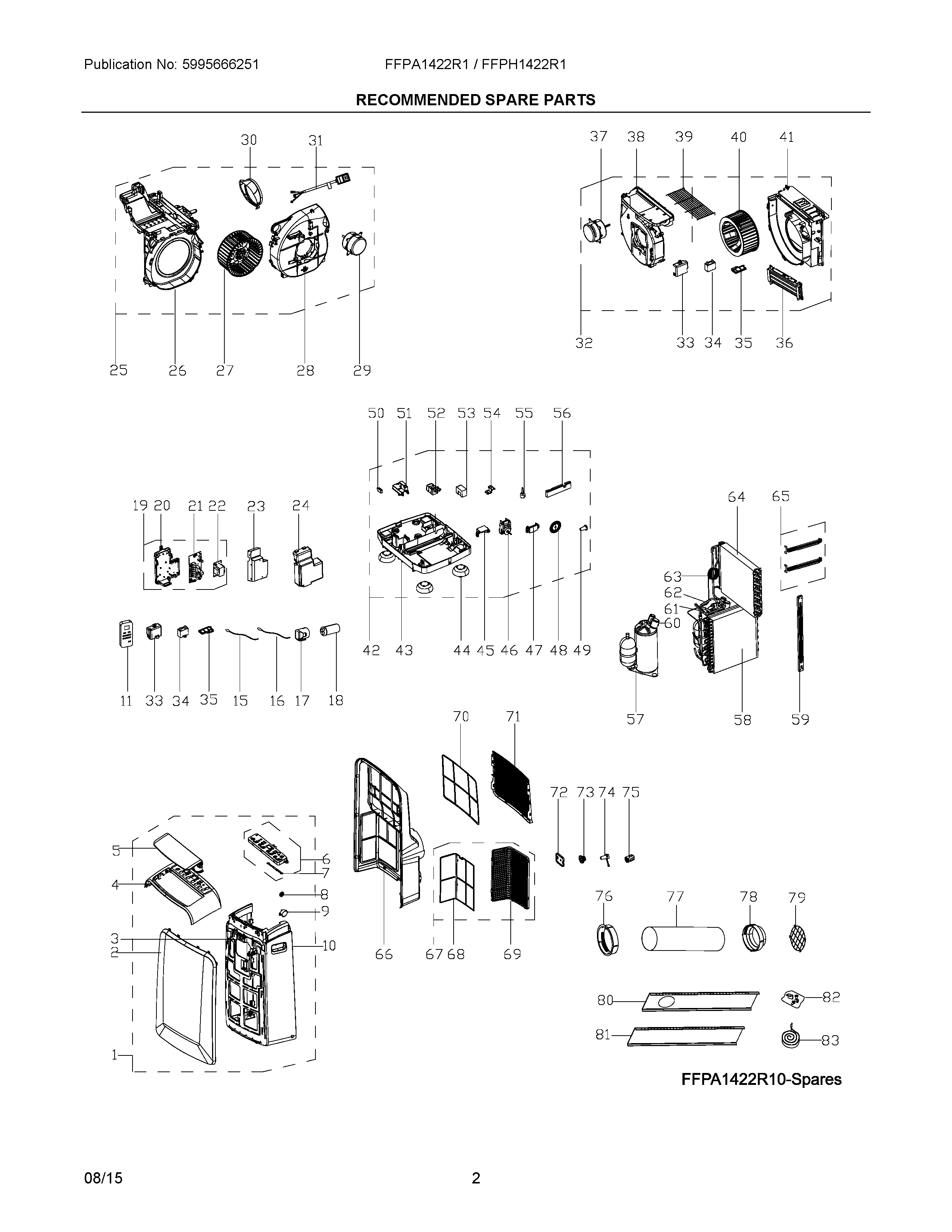

FFPA1422R10 02 – RECOMMENDED SPARE PARTS

FFPA1422R10 02 – RECOMMENDED SPARE PARTS

Written by

in

FFPA1422R10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304502083
2PANEL, FRONT
3RECEIVER ASSY, REMOTE CONTROL
4PANEL, TOP
5LOUVER, AIR DISCHARGE, TOP, SWING
6WCI 5304502088
7CONNECTOR, DISPLAY BOARD, WIRE
8GEAR, SWING MOTOR
9MOTOR, LOUVER SWING, STEPPING
10WRAPPER, CABINET, FRONT
115304502165 Frigidaire Air Conditioner Remote Control
155304502097 Frigidaire Sensor Air Conditioner
16SENSOR, TEMPERATURE, EVAPORATOR
17WCI 5304502014
185304502099 Frigidaire Capacitor
19WCI 5304502100
20WCI 5304502101
21WCI 5304502102
22TRANSFORMER
23WCI 5304502104
24WCI 5304502105
25WCI 5304502166
26SCROLL, EXHAUST
275304502108 Frigidaire Blower Air Conditioner
28WCI 5304502109
29WCI 5304502110
30WCI 5304502167
315304502112 Frigidaire Air Conditioner Power Cord
32WCI 5304502113
33WCI 5304502094
34WCI 5304502095
35WCI 5304502096
37WCI 5304502114
38SCROLL, AIR INLET
39GRILLE, AIR INLET, INDOOR
405304502117 Frigidaire Blower
41COVER, AIR INLET, SCROLL
42WCI 5304502181
43BASE, UNIT CHASSIS
445304502037 Frigidaire Caster
45WCI 5304502121
46WCI 5304502122
47WCI 5304502123
48SLINGER, WATER WHEEL, CONDENSATE
495304502043 Frigidaire Stopper
50MICROSWITCH
51BRACKET, SWITCH HOLDER
52HOUSING, FLOAT CASE
53FLOAT, BOBBER
54BRACKET, FLOAT SWITCH
55SWITCH, FLOAT, LOWER, PUMP OUT
56SPLASH GUARD, CONDENSATE, FOAM
57WCI 5304502133
58CONDENSER
59BRACKET, CONDENSER, VERTICAL
60WCI 5304502136
615304502137 Frigidaire Tube
625304502138 Frigidaire Tube
635304502172 Frigidaire Tube
64EVAPORATOR
65BRACKET, CONDENSER
66WCI 5304502174
67WCI 5304502175
68WCI 5304502176
69WCI 5304502178
70FILTER
71WCI 5304502148
72WCI 5304502149
73WCI 5304502183
74WCI 5304502184
75COVER, DRAIN CONNECTOR
765304502152 Frigidaire Air Conditioner Adapter
775304502153 Frigidaire Air Conditioner Hose
785304502059 Frigidaire Air Conditioner Adapter
795304502060 Frigidaire Air Conditioner Screen
805304502061 Frigidaire Air Conditioner Window Slider-1
815304502062 Frigidaire Air Conditioner Window Slider-2
825304502063 Frigidaire Installation Kit
835304502064 Frigidaire Seal Kit
