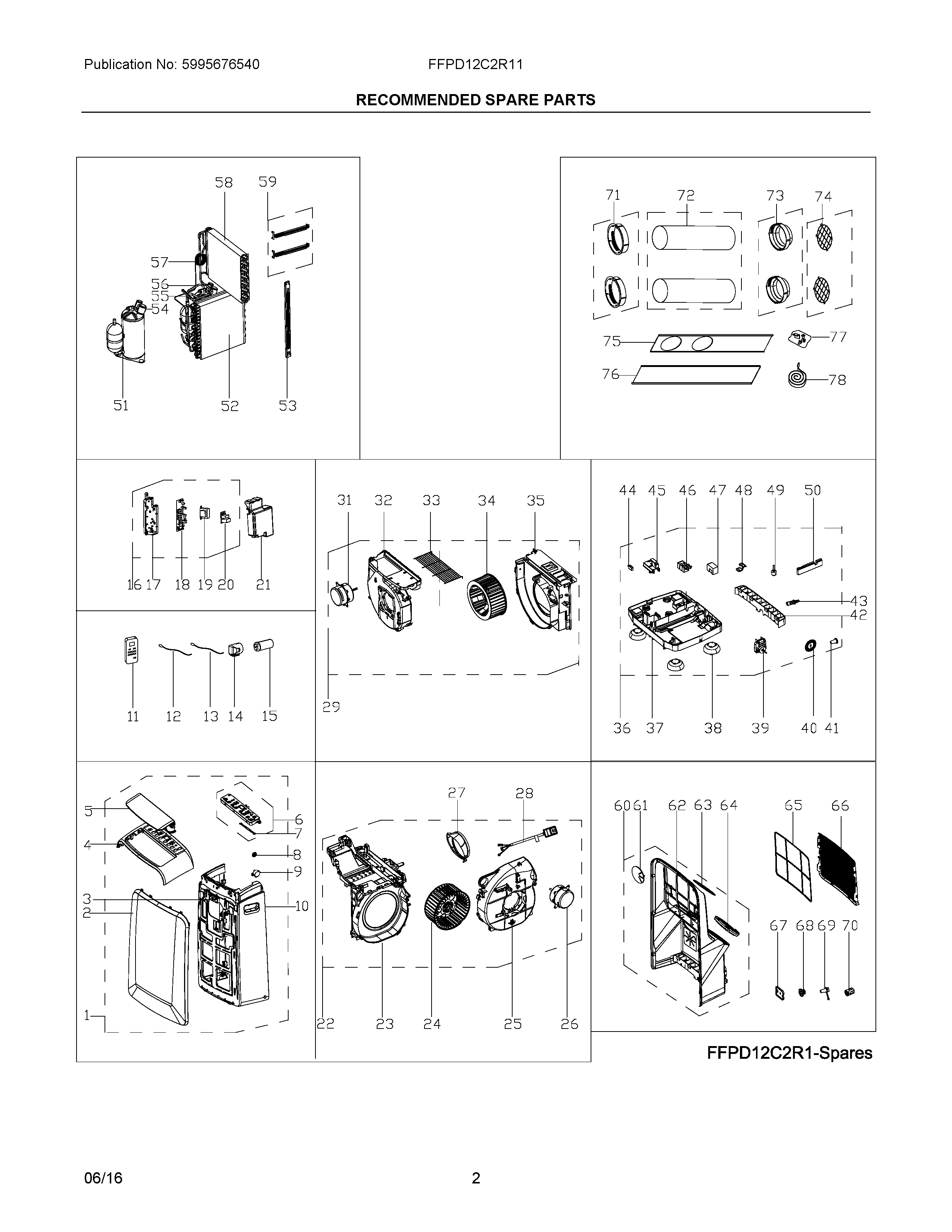

FFPD12C2R11 02 – RECOMMENDED SPARE PARTS

FFPD12C2R11 02 – RECOMMENDED SPARE PARTS

Written by

in

FFPD12C2R11 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304502083
2PANEL, FRONT
3RECEIVER ASSY, REMOTE CONTROL
4PANEL, TOP
5LOUVER, AIR DISCHARGE, TOP, SWING
6WCI 5304502088
7CONNECTOR, DISPLAY BOARD, WIRE
8GEAR, SWING MOTOR
9MOTOR, LOUVER SWING, STEPPING
10WRAPPER, CABINET, FRONT
11WCI 5304502093
125304502097 Frigidaire Sensor Air Conditioner
13SENSOR, TEMPERATURE, EVAPORATOR
14WCI 5304502014
155304502099 Frigidaire Capacitor
16CONTROL ASSEMBLY
17CONTROL BOX
185304506034 Frigidaire Air Conditioner PC Board
19TRANSFORMER
20CAPACITOR ASSEMBLY, BOARD
21WCI 5304502105
22WCI 5304506036
23SCROLL, EXHAUST
245304502108 Frigidaire Blower Air Conditioner
25WCI 5304502109
26MOTOR, EXHAUST FAN
27WCI 5304502111
285304502112 Frigidaire Air Conditioner Power Cord
29SCROLL ASSEMBLY, AIR INLET
31MOTOR, AIR INLET FAN
32SCROLL, AIR INLET
33GRILLE, AIR INLET, INDOOR
345304502117 Frigidaire Blower
35COVER, AIR INLET, SCROLL
36WCI 5304506040
37BASE, UNIT CHASSIS
385304502037 Frigidaire Caster
39MOTOR, SLINGER, SHADED POLE
40SLINGER, WATER WHEEL, CONDENSATE
415304502043 Frigidaire Stopper
42WCI 5304502124
43WCI 5304502125
44MICROSWITCH
45BRACKET, SWITCH HOLDER
46HOUSING, FLOAT CASE
47FLOAT, BOBBER
48BRACKET, FLOAT SWITCH
49SWITCH, FLOAT, LOWER, PUMP OUT
50SPLASH GUARD, CONDENSATE, FOAM
51WCI 5304502133
52CONDENSER
53BRACKET, CONDENSER, VERTICAL
54WCI 5304502136
555304502137 Frigidaire Tube
565304502138 Frigidaire Tube
57WCI 5304502139
58WCI 5304502140
59BRACKET, CONDENSER
60WCI 5304502142
61WCI 5304502143
62WCI 5304502144
63WCI 5304502145
64WCI 5304502146
65FILTER
66WCI 5304502148
67WCI 5304502149
68WCI 5304502150
695304502151 Frigidaire Plug
70COVER, DRAIN CONNECTOR
715304502152 Frigidaire Air Conditioner Adapter
725304502153 Frigidaire Air Conditioner Hose
735304502059 Frigidaire Air Conditioner Adapter
745304502060 Frigidaire Air Conditioner Screen
75WINDOW SLIDER-1, WITH HOLE
765304502062 Frigidaire Air Conditioner Window Slider-2
775304502063 Frigidaire Installation Kit
785304502064 Frigidaire Seal Kit
