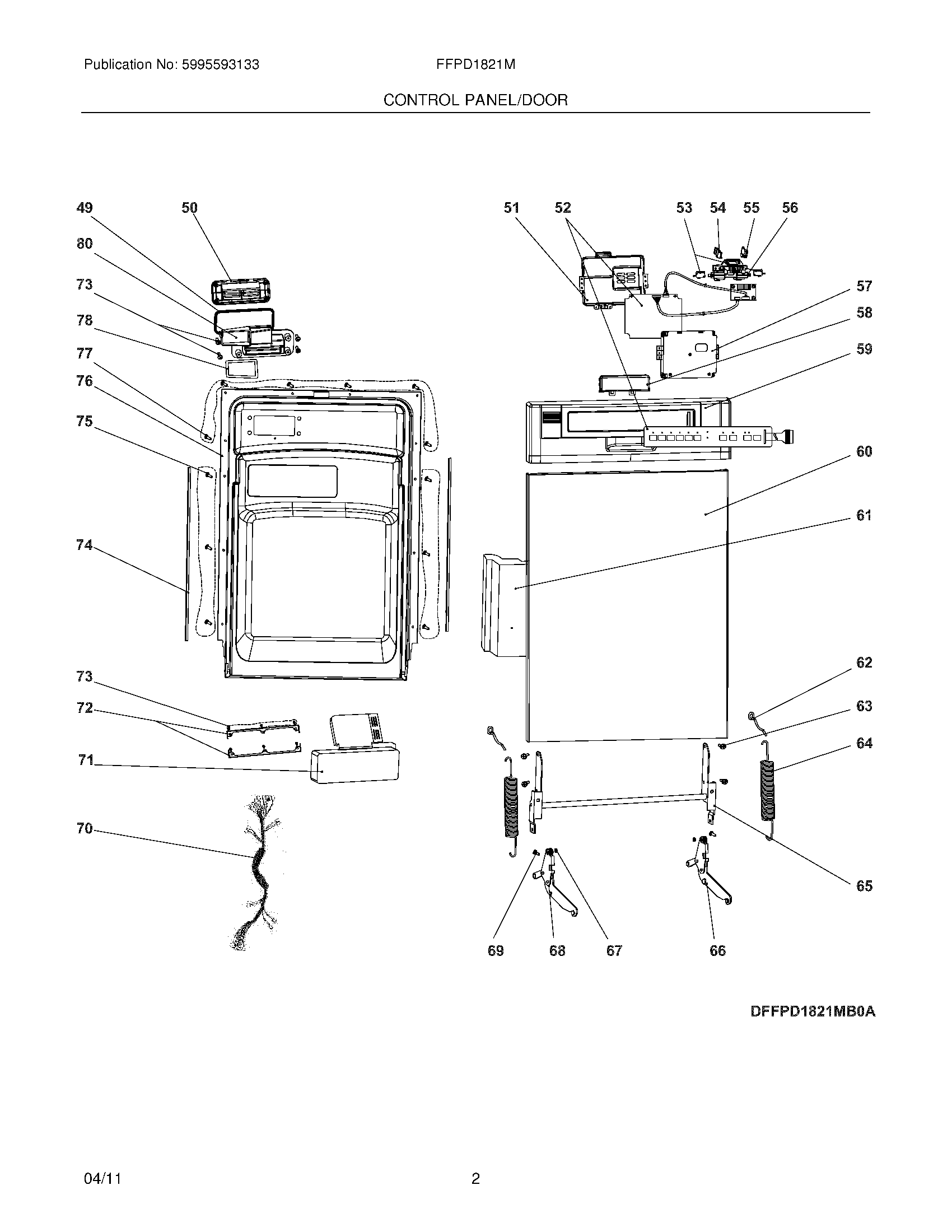

FFPD1821MB0A 03 – CONTROL PANEL/DOORadmin2025-04-26T11:52:45+00:00FFPD1821MB0A 03 – CONTROL PANEL/DOOR
Products
| Position | Product |
|---|
| NI | WCI 5304484058 |
| 49 | GASKET, VENT, TO DOOR LINER |
| 50 | COVER, DOOR VENT |
| 51 | COVER, CONTROL BOARD |
| 52 | 5304483462 Frigidaire Dishwasher Touch Pad |
| 52 | WCI 5304483459 |
| 52 | WCI 5304483461 |
| 53 | 5304483463 Frigidaire Dishwasher Switch |
| 54 | WCI 5304483464 |
| 55 | WCI 5304483465 |
| 56 | 5304535183 Frigidaire Door Latch |
| 57 | WCI 5304483466 |
| 58 | COVER, HANDLE, BLACK |
| 59 | WCI 5304483469 |
| 60 | WCI 5304483511 |
| 61 | FOAM ASSEMBLY, DOOR, INNER |
| 62 | BOLT, DOOR SPRING, (2) |
| 63 | SCREW, REC, M5 X 6, (5) |
| 64 | WCI 5304483475 |
| 65 | HINGE ASSEMBLY, DOOR |
| 66 | WCI 5304482484 |
| 67 | RING, CLAMPING, (2) |
| 68 | WCI 5304482483 |
| 69 | PIN, HINGE JOINT, (2) |
| 70 | WCI 5304483477 |
| 71 | 5304509278 Frigidaire Dishwasher Dispenser |
| 72 | BRACKET, DISPENSER MTG., (2) |
| 73 | SCREW, DISPENSER MTG., (6) |
| 74 | WCI 5304482448 |
| 75 | SCREW, REC TAP, ST3.5 X 13, (6) |
| 76 | LINER ASSEMBLY, DOOR, INNER |
| 77 | SCREW, REC TAP, ST3.5 X 18, (6) |
| 78 | GASKET, VENT |
| 80 | VENT ASSEMBLY, DOOR |
