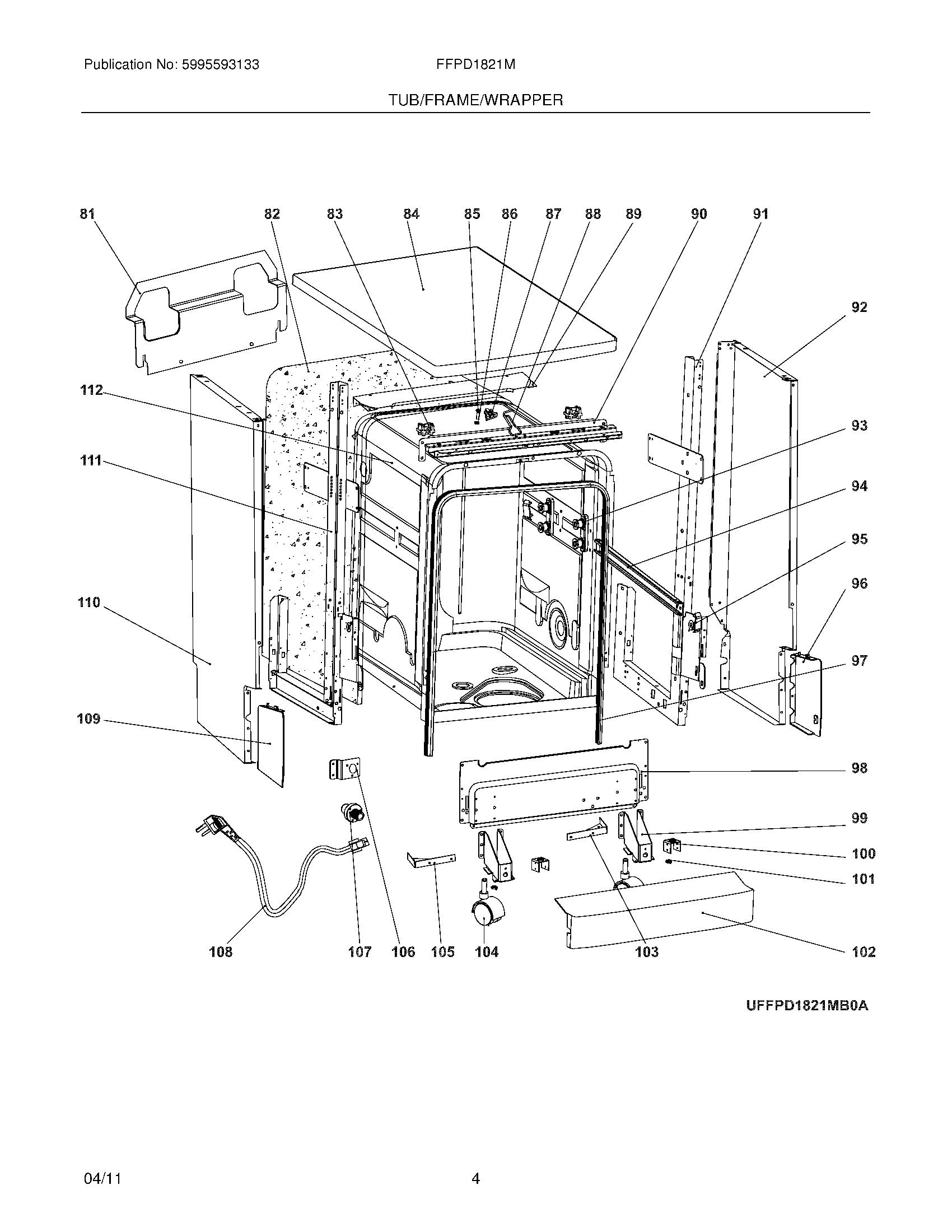

FFPD1821MB0A 05 – TUB/FRAME/WRAPPER

FFPD1821MB0A 05 – TUB/FRAME/WRAPPER

Written by

in

FFPD1821MB0A 05 – TUB/FRAME/WRAPPER

Products

PositionProduct
81WCI 5304483513
82WCI 5304483482
83BLOCK, TOP, BLACK, (2)
84WCI 5304483514
85SCREW, REC CNTRSUNK HD, M4 X 16
865304482375 Frigidaire Dishwasher Locknut
87WCI 5304483484
885304483485 Frigidaire Dishwasher Hook
89WCI 5304483516
90WCI 5304483517
91WCI 5304483518
92WCI 5304483519
93WCI 5304483488
94RAIL, GUIDE, UPPER RACK, (2)
95WCI 5304483490
96WCI 5304483522
975304512895 Frigidaire Dishwasher Gasket Assembly
98WCI 5304483523
99WCI 5304483524
100WCI 5304483525
101WCI 5304483526
102WCI 5304483527
103WCI 5304483529
104WCI 5304483530
105WCI 5304483531
106WCI 5304483532
107WCI 5304483533
108WCI 5304483534
109WCI 5304483536
110WCI 5304483537
111WCI 5304483539
112WCI 5304483540
