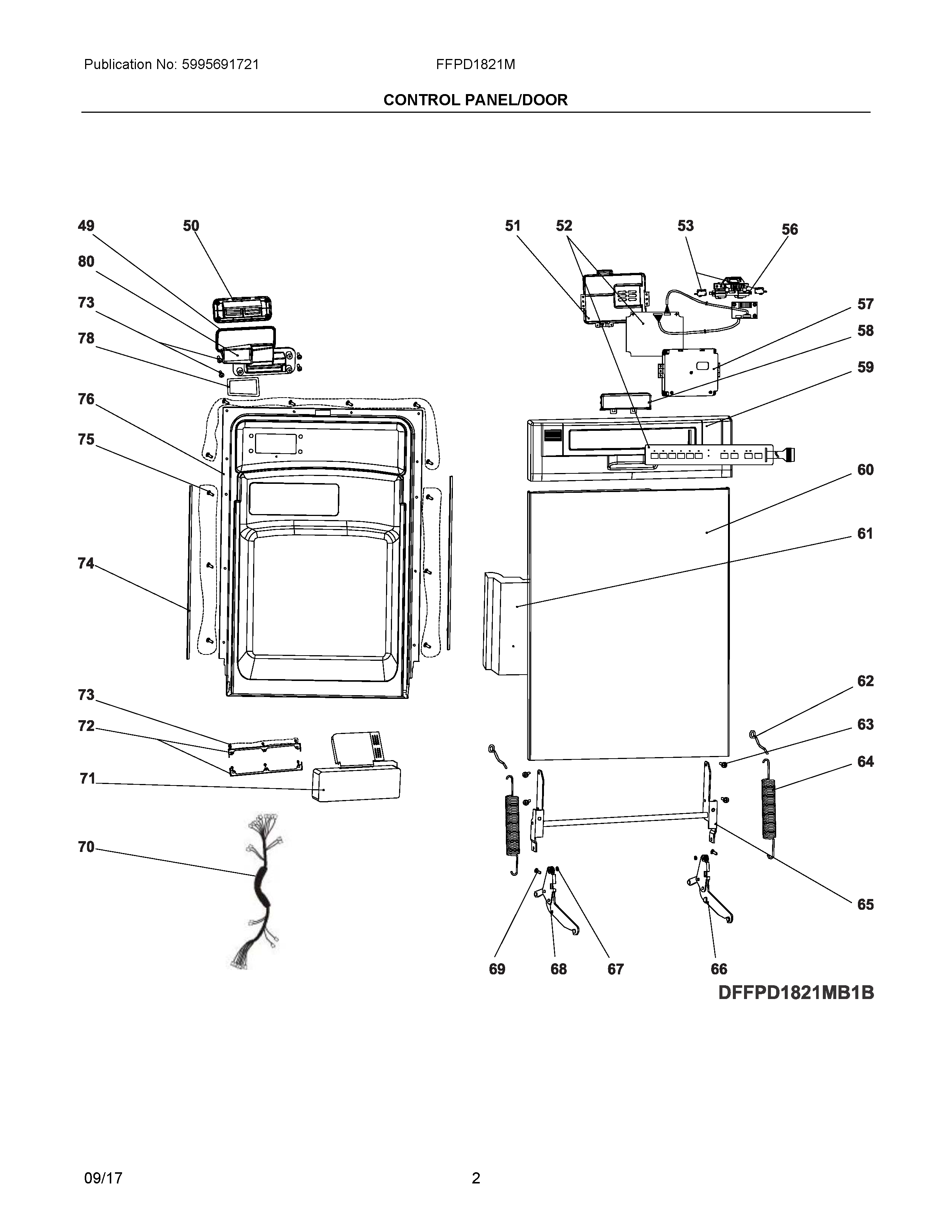

FFPD1821MB1B 02 – CONTROL PANEL/DOOR

FFPD1821MB1B 02 – CONTROL PANEL/DOOR

Written by

in

FFPD1821MB1B 02 – CONTROL PANEL/DOOR

Products

PositionProduct
49GASKET, VENT, TO DOOR LINER
50COVER, DOOR VENT
51COVER, CONTROL BOARD
52WCI 5304512885
535304483463 Frigidaire Dishwasher Switch
56WCI 5304512886
575304512887 Frigidaire Dishwasher Box
58COVER, HANDLE, BLACK
595304512888 Frigidaire Dishwasher Console
60WCI 5304483511
61FOAM ASSEMBLY, DOOR, INNER
62BOLT, DOOR SPRING, (2)
63SCREW, REC, M5 X 6, (5)
64WCI 5304483475
65HINGE ASSEMBLY, DOOR
66WCI 5304512889
67RING, CLAMPING, (2)
68WCI 5304512890
69PIN, HINGE JOINT, (2)
70WCI 5304483477
715304509267 Frigidaire Dishwasher Dispenser
72BRACKET, DISPENSER MTG., (2)
73SCREW, DISPENSER MTG., (6)
74WCI 5304482448
75SCREW, REC TAP, ST3.5 X 13, (6)
76LINER ASSEMBLY, DOOR, INNER
78GASKET, VENT
80VENT ASSEMBLY, DOOR
