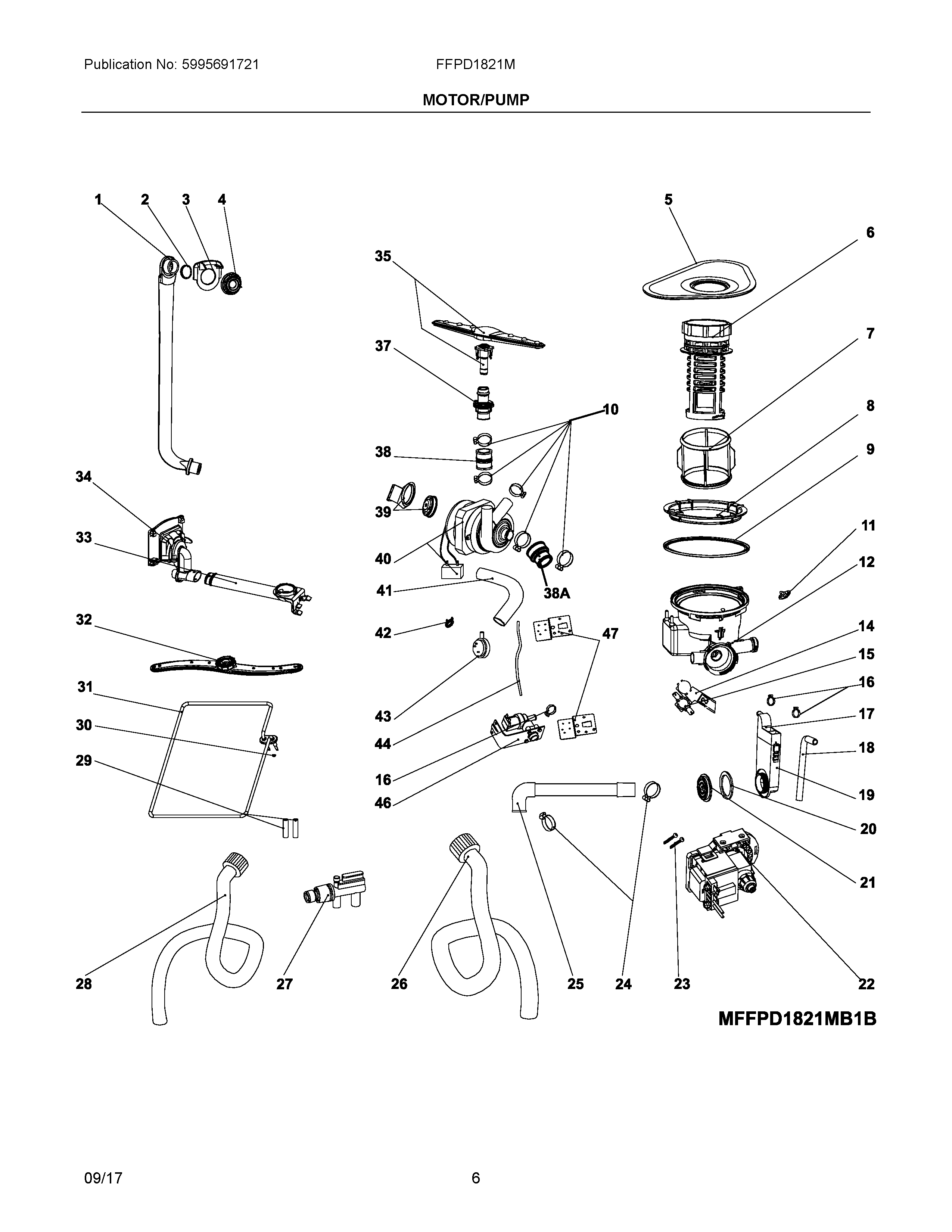

FFPD1821MW1B 04 – MOTOR/PUMP

Products

Position	Product
1	5304512881 Frigidaire Dishwasher Delivery Hose
2	O RING, DELIVERY TUBE, (2)
3	CASING, GUIDE, DELIVERY TUBE
4	NUT, PIPE, DELIVERY TUBE
5	FILTER ASSEMBLY, SCREEN, STAINLESS
6	FILTER ASSEMBLY
7	FILTER ASSEMBLY, MICRO
8	NUT, SUMP MTG.
9	5304512882 Frigidaire Dishwasher Gasket
10	5304482453 Frigidaire Dishwasher Clamp
11	5304483441 Frigidaire Dishwasher Thermistor
12	5304512883 Frigidaire Dishwasher Sump Assembly
14	BRACKET, THERMOSTAT
15	THERMOSTAT, 90
16	5304460970 Frigidaire Dishwasher Clamp
17	COVER, WATER TUNNEL
18	HOSE, INLET, TUNNEL
19	TUNNEL, WATER
20	GASKET, RING NUT
21	RING NUT
22	5304483444 Frigidaire Dishwasher Pump
23	WCI 5304482501
24	CLAMP, HOSE, OTK286, (2)
25	WCI 5304512897
26	WCI 5304483508
27	5304483509 Frigidaire Dishwasher Faucet Adapter
28	WCI 5304483510
29	CASING, HAETING ELEMENT, (2)
30	NUT, HEATING ELEMENT
31	ELEMENT ASSEMBLY, HEATING
32	SPRAY ARM, ASSEMBLY, UPPER
33	CONDUIT, SPRAY ARM, UPPER
34	DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE
35	5304512884 Frigidaire Dishwasher Arm Spray
37	CONNECTOR ASSEMBLY, SPRAY ARM, LOWER
38A	DUCT, CONNECTING, (2)
38	5304512129 Frigidaire Dishwasher Duct
39	SUPPORT ASSEMBLY, MOTOR, W/PAD
40	5304512880 Frigidaire Dishwasher Pump Assembly
41	DUCT, CONNECTING, EXTERNAL PIPE
42	CLAMP, HOSE, 12.9 X 1.8
43	SWITCH-PRESSURE, #32
44	HOSE, PRESSURE SWITCH
46	5304482406 Frigidaire Dishwasher Valve
47	SUPPORT, PRESSURE SWITCH
