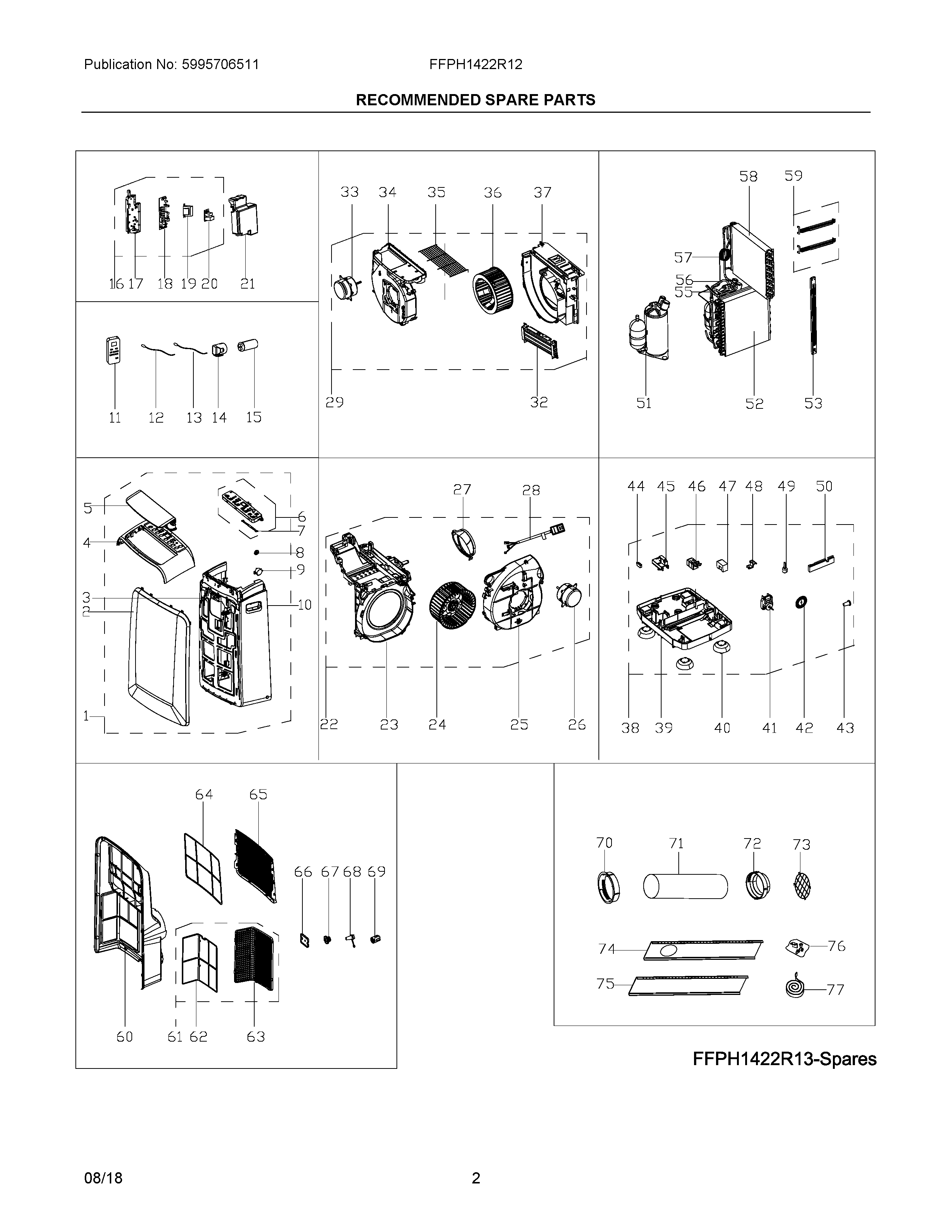

FFPH1422R12 02 – RECOMMENDED SPARE PARTS

FFPH1422R12 02 – RECOMMENDED SPARE PARTS

Written by

in

FFPH1422R12 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304517056
2PANEL, FRONT
3RECEIVER ASSY, REMOTE CONTROL
4PANEL, TOP
5LOUVER, AIR DISCHARGE, TOP, SWING
65304517042 Frigidaire Electrical Control
7CONNECTOR, DISPLAY BOARD, WIRE
8GEAR, SWING MOTOR
9MOTOR, LOUVER SWING, STEPPING
10WRAPPER, CABINET, FRONT
11WCI 5304517057
125304502097 Frigidaire Sensor Air Conditioner
13SENSOR, TEMPERATURE, EVAPORATOR
14WCI 5304517044
15WCI 5304509283
16WCI 5304506042
17CONTROL BOX
18WCI 5304506043
19TRANSFORMER
20CAPACITOR ASSEMBLY, BOARD
21WCI 5304517045
22SCROLL ASSEMBLY, AIR EXHAUST
23SCROLL, EXHAUST
245304502108 Frigidaire Blower Air Conditioner
25WCI 5304517046
26MOTOR, EXHAUST FAN
27WCI 5304517047
285304502112 Frigidaire Air Conditioner Power Cord
29WCI 5304506045
32WCI 5304502163
33MOTOR, AIR INLET FAN
34SCROLL, AIR INLET
35GRILLE, AIR INLET, INDOOR
365304502117 Frigidaire Blower
37COVER, AIR INLET, SCROLL
38BASE ASSEMBLY, CHASSIS
39BASE, UNIT CHASSIS
405304502037 Frigidaire Caster
41MOTOR, SLINGER, SHADED POLE
42SLINGER, WATER WHEEL, CONDENSATE
435304502043 Frigidaire Stopper
44MICROSWITCH
45BRACKET, SWITCH HOLDER
46HOUSING, FLOAT CASE
47FLOAT, BOBBER
48BRACKET, FLOAT SWITCH
49SWITCH, FLOAT, LOWER, PUMP OUT
50SPLASH GUARD, CONDENSATE, FOAM
51WCI 5304502133
52CONDENSER
53BRACKET, CONDENSER, VERTICAL
555304502137 Frigidaire Tube
565304502138 Frigidaire Tube
575304502172 Frigidaire Tube
58EVAPORATOR
59BRACKET, CONDENSER
60WCI 5304502174
61WCI 5304502175
62WCI 5304502176
63WCI 5304502178
64FILTER
65WCI 5304502148
66WCI 5304502149
67WCI 5304502183
68WCI 5304502184
69COVER, DRAIN CONNECTOR
705304535763 Frigidaire Adapter
715304502153 Frigidaire Air Conditioner Hose
725304518771 Frigidaire Exhaust Assembly
735304502060 Frigidaire Air Conditioner Screen
745304502061 Frigidaire Air Conditioner Window Slider-1
755304502062 Frigidaire Air Conditioner Window Slider-2
765304502063 Frigidaire Installation Kit
775304502064 Frigidaire Seal Kit
