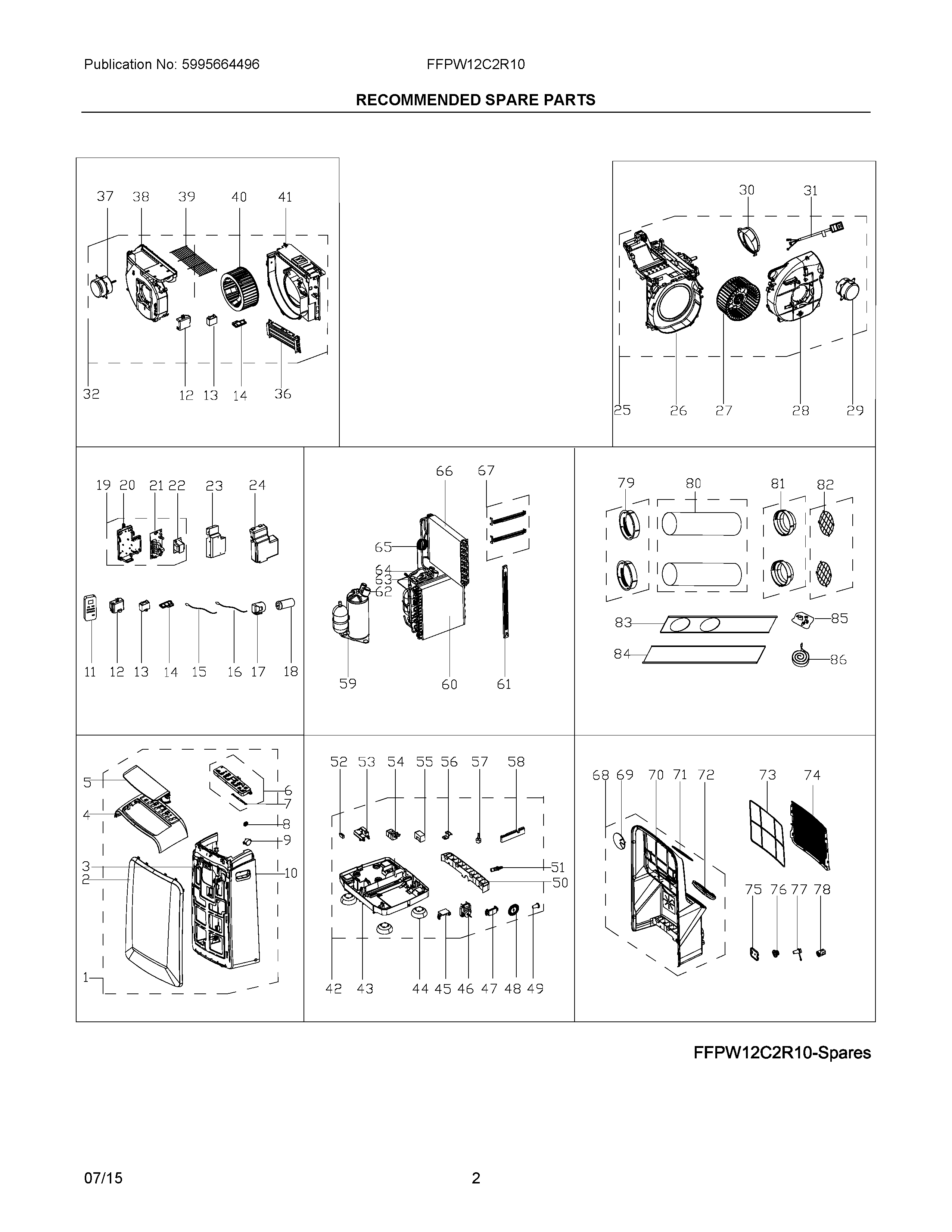

FFPW12C2R10 02 – RECOMMENDED SPARE PARTS

FFPW12C2R10 02 – RECOMMENDED SPARE PARTS

Written by

in

FFPW12C2R10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304502157
2PANEL, FRONT
3RECEIVER ASSY, REMOTE CONTROL
4PANEL, TOP
5LOUVER, AIR DISCHARGE, TOP, SWING
6WCI 5304502158
7CONNECTOR, DISPLAY BOARD, WIRE
8GEAR, SWING MOTOR
9MOTOR, LOUVER SWING, STEPPING
10WRAPPER, CABINET, FRONT
11WCI 5304502159
12WCI 5304502094
13WCI 5304502095
14WCI 5304502096
155304502097 Frigidaire Sensor Air Conditioner
16SENSOR, TEMPERATURE, EVAPORATOR
17WCI 5304502014
185304502099 Frigidaire Capacitor
19WCI 5304502160
20WCI 5304502101
21WCI 5304502161
22TRANSFORMER
23WCI 5304502104
24WCI 5304502105
25WCI 5304502106
26SCROLL, EXHAUST
275304502108 Frigidaire Blower Air Conditioner
28WCI 5304502109
29WCI 5304502110
30WCI 5304502111
315304502112 Frigidaire Air Conditioner Power Cord
32WCI 5304502162
36WCI 5304502163
37WCI 5304502114
38SCROLL, AIR INLET
39GRILLE, AIR INLET, INDOOR
405304502117 Frigidaire Blower
41COVER, AIR INLET, SCROLL
42WCI 5304502119
43BASE, UNIT CHASSIS
445304502037 Frigidaire Caster
45WCI 5304502121
46WCI 5304502122
47WCI 5304502123
48SLINGER, WATER WHEEL, CONDENSATE
495304502043 Frigidaire Stopper
50WCI 5304502124
51WCI 5304502125
52MICROSWITCH
53BRACKET, SWITCH HOLDER
54HOUSING, FLOAT CASE
55FLOAT, BOBBER
56BRACKET, FLOAT SWITCH
57SWITCH, FLOAT, LOWER, PUMP OUT
58SPLASH GUARD, CONDENSATE, FOAM
59WCI 5304502133
60CONDENSER
61BRACKET, CONDENSER, VERTICAL
62WCI 5304502136
635304502137 Frigidaire Tube
645304502138 Frigidaire Tube
65WCI 5304502139
66WCI 5304502140
67BRACKET, CONDENSER
68WCI 5304502142
69WCI 5304502143
70WCI 5304502144
71WCI 5304502145
72WCI 5304502146
73FILTER
74WCI 5304502148
75WCI 5304502149
76WCI 5304502150
775304502151 Frigidaire Plug
78COVER, DRAIN CONNECTOR
795304502152 Frigidaire Air Conditioner Adapter
805304502153 Frigidaire Air Conditioner Hose
815304535763 Frigidaire Adapter
825304502060 Frigidaire Air Conditioner Screen
83WINDOW SLIDER-1, WITH HOLE
845304502062 Frigidaire Air Conditioner Window Slider-2
855304502063 Frigidaire Installation Kit
865304502064 Frigidaire Seal Kit
