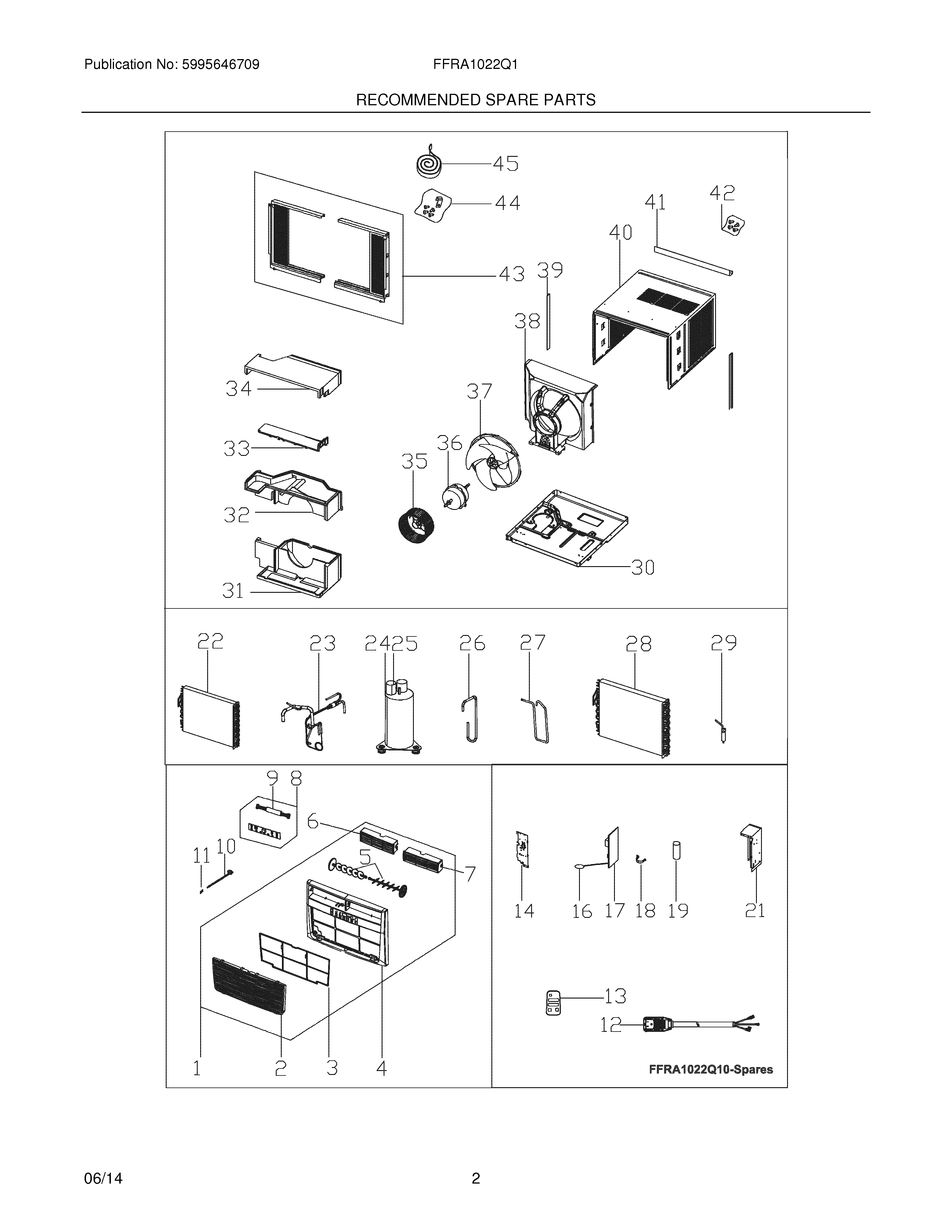

FFRA1022Q15 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476848
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	WCI 5304476795
5	WCI 5304476796
7	5304476798 Frigidaire Air Conditioner Louver
8	PC Board,display/input
9	5304482356 Frigidaire Wire
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	5304476802 Frigidaire Air Conditioner Remote Control
14	Cover,control box
16	5304504724 Frigidaire Sensor
17	WCI 5304496237
18	Strap,capacitor clamp
19	5304471300 Frigidaire Capacitor
21	WCI 5304492004
22	WCI 5304495096
23	WCI 5304495097
24	Compressor,w/overload
25	WCI 5304495098
26	WCI 5304495099
27	WCI 5304495100
28	WCI 5304491952
29	5304476201 Frigidaire Air Conditioner Filter Drier
30	WCI 5304495101
31	Scroll,blower housing ,bottom
32	5304495102 Frigidaire Scroll
33	WCI 5304495103
34	Scroll,blower housing ,top
35	5304485443 Frigidaire Air Conditioner Blower Wheel
36	5304493236 Frigidaire Air Conditioner Motor
37	5304476059 Frigidaire Air Conditioner Fan Blade
38	WCI 5304495104
39	Retainer,shutter ,cabinet sides
40	Cabinet,wrapper/sleeve
41	Rail,shutter track ,top angle
42	Screw Kit,top rail mount
43	5304476200 Frigidaire Air Conditioner Window Filler Kit
44	5304491953 Frigidaire Air Conditioner Hardware
45	Seal kit,foam ,sash filler
