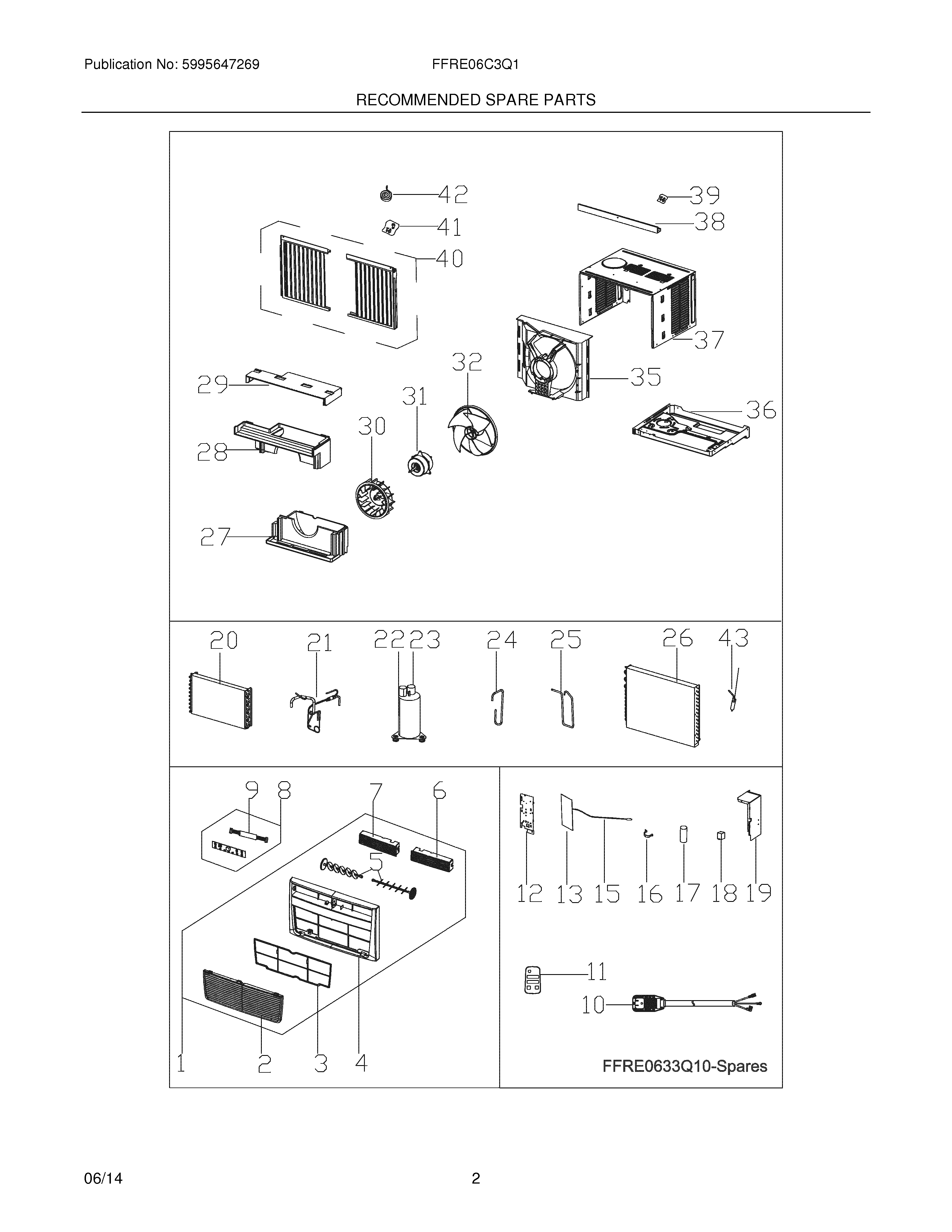

FFRE06C3Q12 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477067
2	Panel,front grille ,tilt-out
3	Filter,air ,plastic frame
4	WCI 5304477068
5	WCI 5304477050
6	5304477051 Frigidaire LOUVER
7	5304477052 Frigidaire LOUVER
8	PC Board,display/input
9	Wire,connecting
10	WCI 5304476515
11	5304476802 Frigidaire Air Conditioner Remote Control
12	5304495908 Frigidaire Cover Assembly
13	WCI 5304496240
15	5304504724 Frigidaire Sensor
16	Strap,capacitor clamp
17	5304476049 Frigidaire Capacitor
18	Ionizer,anion generator
19	WCI 5304495911
20	WCI 5304496332
21	WCI 5304496333
22	COMPRESSOR, WITH OVERLOAD
23	OVERLOAD PROTECTOR, COMPRESSOR
24	WCI 5304495913
25	WCI 5304492012
26	WCI 5304495914
27	WCI 5304476557
28	WCI 5304486038
29	WCI 5304486039
30	WCI 5304489717
31	WCI 5304496331
32	Fan Blade,axial
35	Shroud,condenser/fan
36	WCI 5304495915
37	WCI 5304495916
38	Rail,shutter track ,top
39	Screw Kit,top rail mount
40	5304495917 Frigidaire Air Conditioner Window Filler Kit
41	5304491953 Frigidaire Air Conditioner Hardware
42	Seal kit,foam ,sash filler
43	5304476201 Frigidaire Air Conditioner Filter Drier
