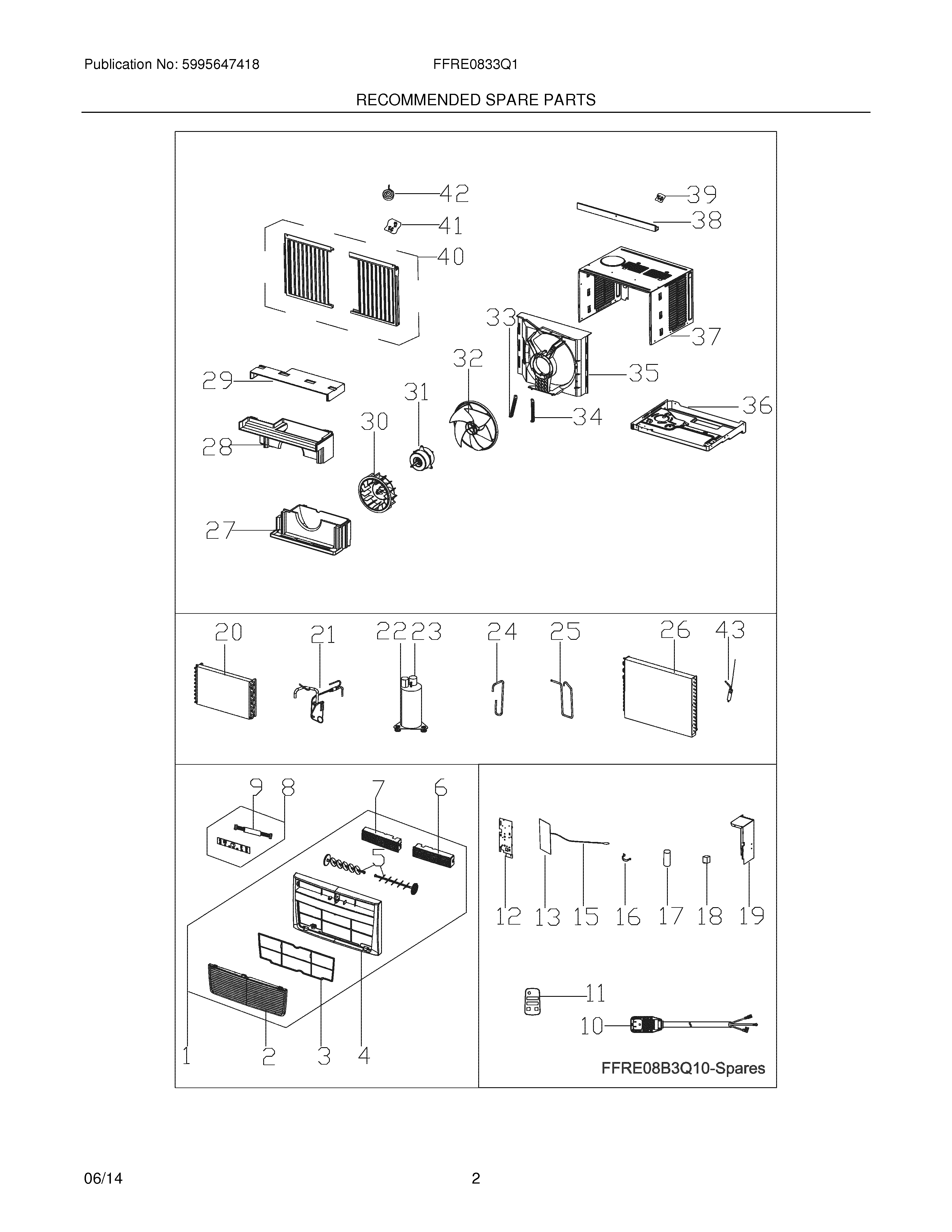

FFRE0833Q13 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477067
2	Panel,front grille ,tilt-out
3	Filter,air ,plastic frame
4	WCI 5304477068
5	WCI 5304477050
6	5304477051 Frigidaire LOUVER
7	5304477052 Frigidaire LOUVER
8	PC Board,display/input
9	Wire,connecting
10	Power Cord,electric ,LCDI
11	5304501878 Frigidaire Remote Control
12	5304495908 Frigidaire Cover Assembly
13	WCI 5304496240
15	5304504724 Frigidaire Sensor
16	Strap,capacitor clamp
17	WCI 5304476003
18	Ionizer,anion generator
19	WCI 5304495911
20	WCI 5304495947
21	WCI 5304495948
22	5304489721 Frigidaire Air Conditioner Compressor
23	5304492022 Frigidaire Air Conditioner Overload Protector
24	Tube,suction
25	WCI 5304495949
26	WCI 5304495944
27	WCI 5304495926
28	WCI 5304495927
29	WCI 5304495928
30	Blower Wheel,centrifugal fan
31	WCI 5304495945
32	5304483089 Frigidaire Blade Fan
33	Support,motor mount ,left
34	Support,motor mount ,right
35	Shroud,condenser/fan
36	WCI 5304496354
37	WCI 5304495916
38	Rail,shutter track ,top
39	Screw Kit,top rail mount
40	5304495917 Frigidaire Air Conditioner Window Filler Kit
41	5304491953 Frigidaire Air Conditioner Hardware
42	Seal kit,foam ,sash filler
43	5304476201 Frigidaire Air Conditioner Filter Drier
