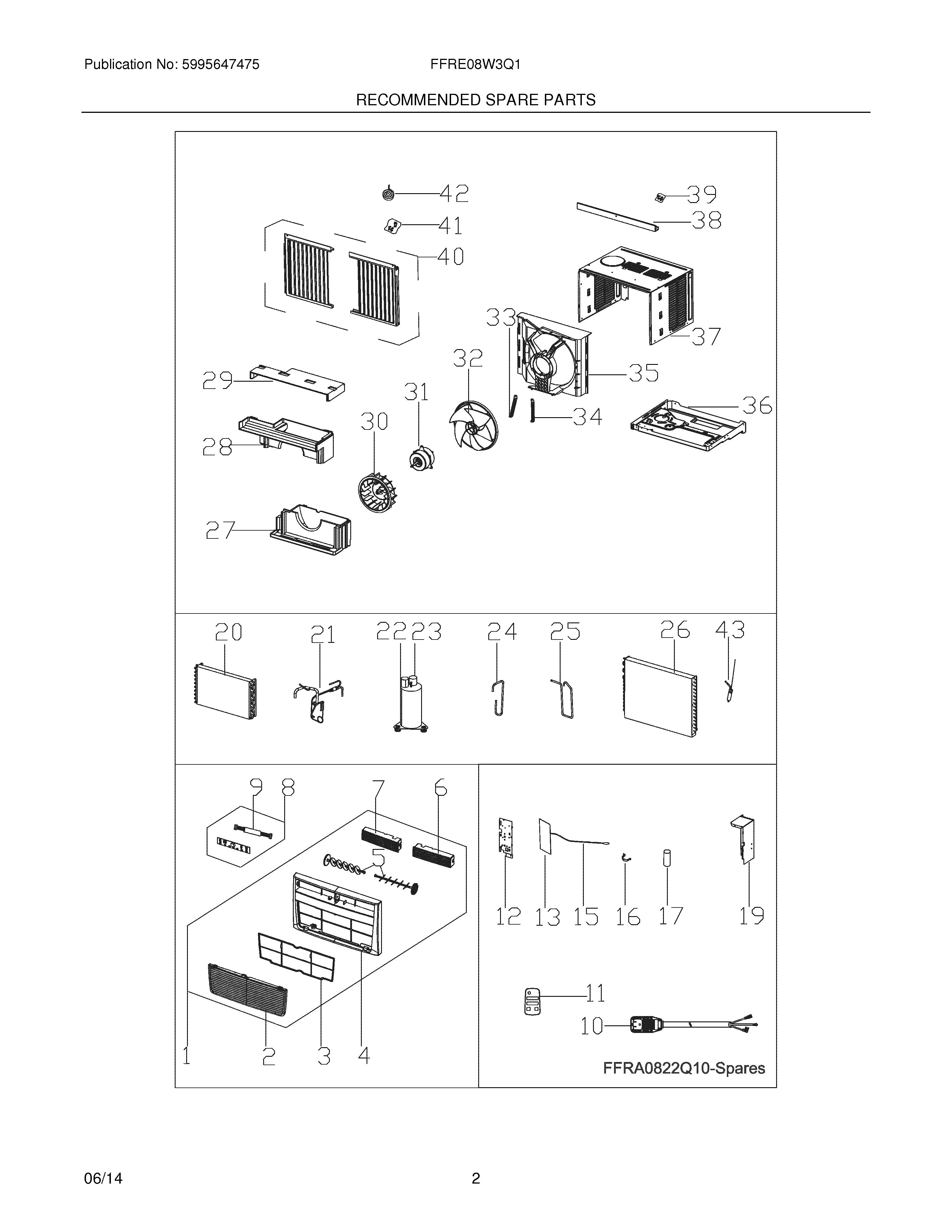

FFRE08W3Q15 03 – RECOMMENDED SPARE PART

FFRE08W3Q15 03 – RECOMMENDED SPARE PART

Written by

in

FFRE08W3Q15 03 – RECOMMENDED SPARE PART

Products

PositionProduct
1WCI 5304477069
2WCI 5304477070
3WCI 5304536669
4WCI 5304477072
5WCI 5304477073
6WCI 5304477074
7WCI 5304477075
85304536384 Frigidaire Electrical Control
95304482356 Frigidaire Wire
10Power Cord,electric ,LCDI
11WCI 5304496335
125304495908 Frigidaire Cover Assembly
13WCI 5304496327
155304504724 Frigidaire Sensor
16Strap,capacitor clamp
175304471294 Frigidaire CAPACITOR
19WCI 5304495911
20WCI 5304495947
21WCI 5304495948
22WCI 5304493827
23WCI 5304495930
24WCI 5304495931
25WCI 5304495932
26WCI 5304495951
27WCI 5304495926
28WCI 5304495927
29WCI 5304495928
30Blower Wheel,centrifugal fan
31WCI 5304495945
325304483089 Frigidaire Blade Fan
33Support,motor mount ,left
34Support,motor mount ,right
35Shroud,condenser/fan
36WCI 5304496354
37WCI 5304495916
38Rail,shutter track ,top
39Screw Kit,top rail mount
405304495917 Frigidaire Air Conditioner Window Filler Kit
415304491953 Frigidaire Air Conditioner Hardware
42Seal kit,foam ,sash filler
435304476201 Frigidaire Air Conditioner Filter Drier
