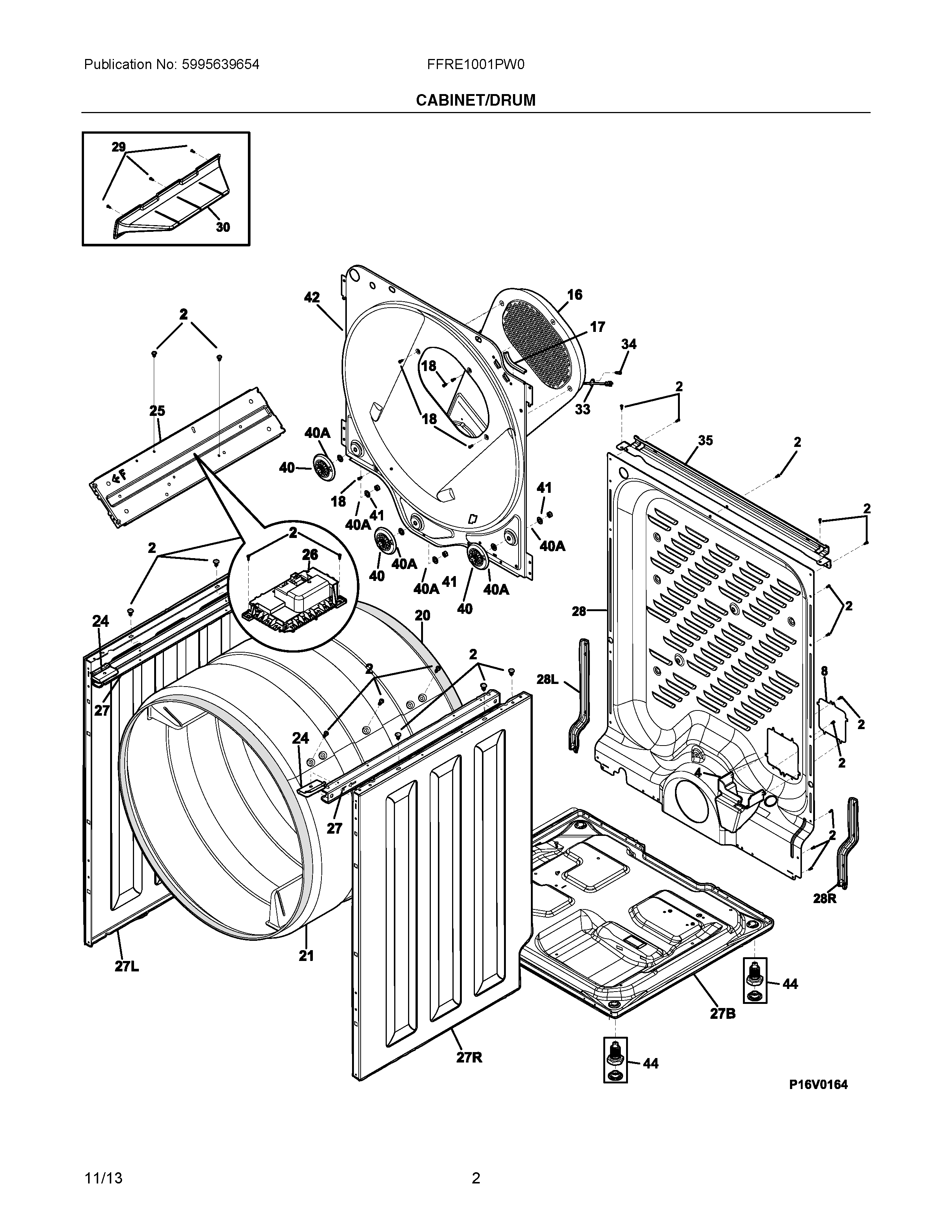

FFRE1001PW0 02 – CABINET/DRUM

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	134154100 Frigidaire Screw 10-32 x 0.375 Co
NI	137031800 Frigidaire Cushion
NIA	134716200 Frigidaire Retainer
4	WCI 134792200
8	137578600 Frigidaire Cover
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	137565300 Frigidaire Seal
21	WCI 137623100
24	BRACKET, FRONT, TOP SUPP
25	WCI 134912100
26	WCI 137204311
27L	WCI 134690310
27	WCI 137240400
27R	WCI 134690410
27B	134690203 Frigidaire Base
28R	WCI 137066800
28	WCI 137560300
28L	WCI 137029900
29	131205100 Frigidaire Screw
30	WCI 137623200
33	SAFETY THERMSTAT
34	131243700 Frigidaire Screw
35	BRACKET, REAR, TP, FSD
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	137556623 Frigidaire Bulkhead
44	WCI 137029700
