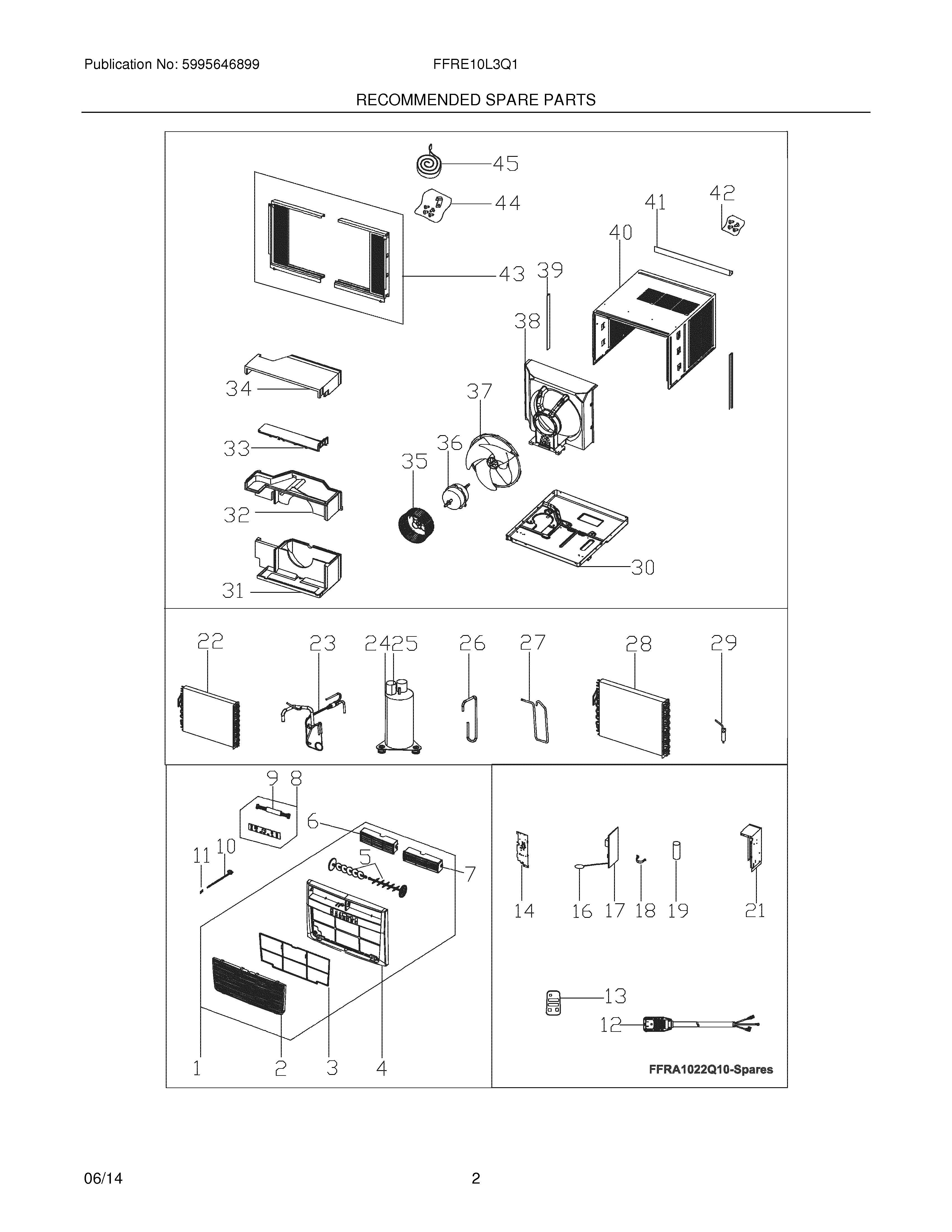

FFRE10L3Q15 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304496241
2	WCI 5304476860
3	5304535830 Frigidaire Filter
4	WCI 5304496242
5	WCI 5304476863
6	WCI 5304476864
7	WCI 5304476865
8	5304536384 Frigidaire Electrical Control
9	5304482356 Frigidaire Wire
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	5304487535 Frigidaire Air Conditioner Remote Control
14	Cover,control box
16	5304504724 Frigidaire Sensor
17	WCI 5304496237
18	Strap,capacitor clamp
19	5304476066 Frigidaire Air Conditioner Capacitor
21	WCI 5304492004
22	WCI 5304495112
23	WCI 5304495113
24	WCI 5304493235
25	Overload Protector,compressor
26	WCI 5304495121
27	WCI 5304495122
28	WCI 5304476233
29	5304476201 Frigidaire Air Conditioner Filter Drier
30	WCI 5304495101
31	Scroll,blower housing ,bottom
32	5304495102 Frigidaire Scroll
33	WCI 5304495103
34	Scroll,blower housing ,top
35	5304485443 Frigidaire Air Conditioner Blower Wheel
36	5304493236 Frigidaire Air Conditioner Motor
37	5304476059 Frigidaire Air Conditioner Fan Blade
38	WCI 5304495104
39	Retainer,shutter ,cabinet sides
40	Cabinet,wrapper/sleeve
41	Rail,shutter track ,top angle
42	Screw Kit,top rail mount
43	5304476200 Frigidaire Air Conditioner Window Filler Kit
44	5304491953 Frigidaire Air Conditioner Hardware
45	Seal kit,foam ,sash filler
