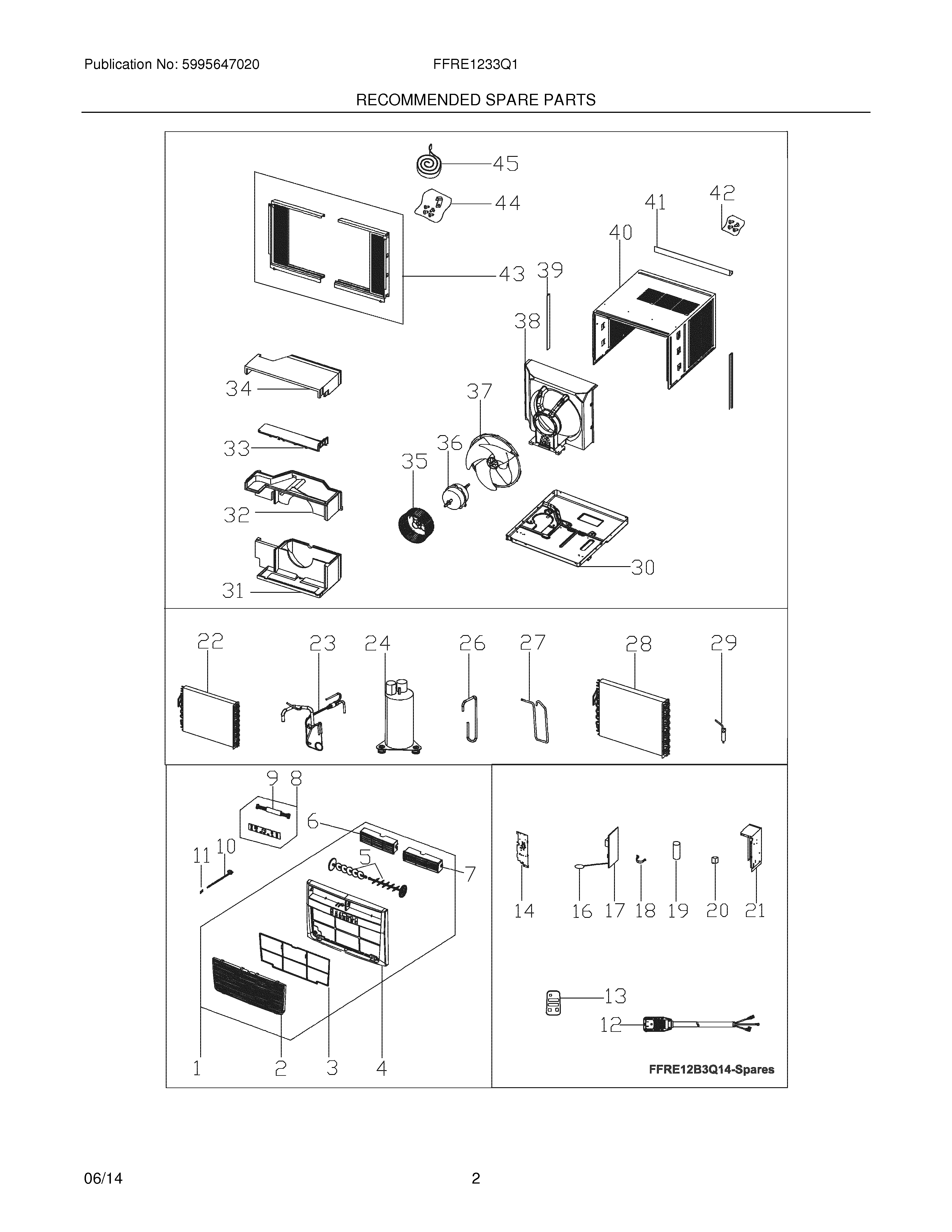

FFRE1233Q15 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476848
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	5304476849 Frigidaire FRAME
5	WCI 5304476796
7	5304476798 Frigidaire Air Conditioner Louver
8	WCI 5304476850
9	Wire,connecting
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	5304501878 Frigidaire Remote Control
14	Cover,control box
16	5304504724 Frigidaire Sensor
17	WCI 5304496240
18	Strap,capacitor clamp
19	5304495126 Frigidaire Air Conditioner Capacitor
20	Ionizer,anion generator
21	WCI 5304492004
22	WCI 5304495127
23	WCI 5304495128
24	WCI 5304495129
26	WCI 5304495130
27	WCI 5304495131
28	WCI 5304495132
29	5304476201 Frigidaire Air Conditioner Filter Drier
30	WCI 5304495101
31	Scroll,blower housing ,bottom
32	5304495102 Frigidaire Scroll
33	WCI 5304495103
34	Scroll,blower housing ,top
35	5304485443 Frigidaire Air Conditioner Blower Wheel
36	WCI 5304495133
37	5304476059 Frigidaire Air Conditioner Fan Blade
38	WCI 5304495104
39	Retainer,shutter ,cabinet sides
40	Cabinet,wrapper/sleeve
41	Rail,shutter track ,top angle
42	Screw Kit,top rail mount
43	5304476200 Frigidaire Air Conditioner Window Filler Kit
44	5304491953 Frigidaire Air Conditioner Hardware
45	Seal kit,foam ,sash filler
