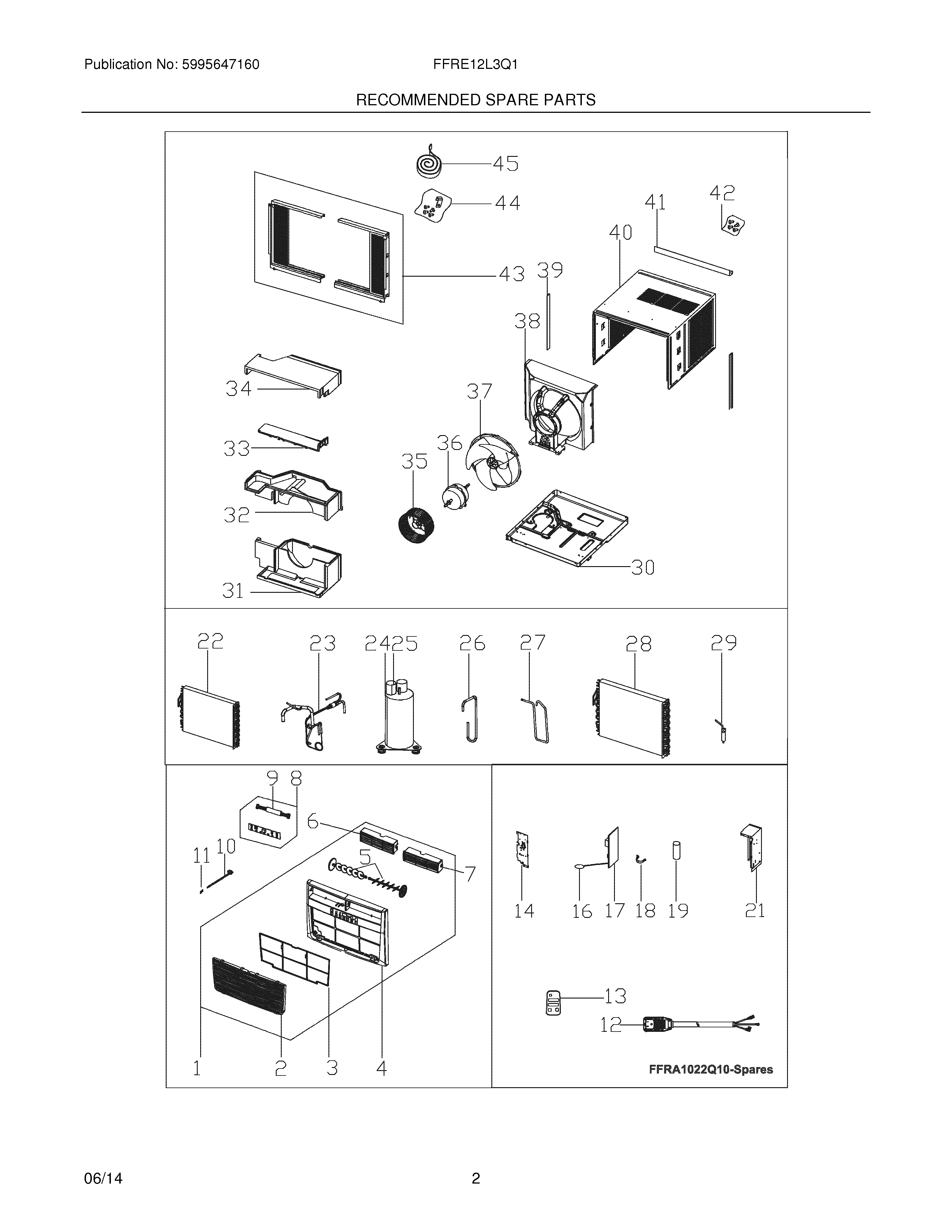

FFRE12L3Q14 03 – RECOMMENDED SPARE PARTSadmin2025-04-26T08:57:37+00:00FFRE12L3Q14 03 – RECOMMENDED SPARE PARTS
Products
| Position | Product |
|---|
| 1 | WCI 5304496241 |
| 2 | WCI 5304476860 |
| 3 | 5304535830 Frigidaire Filter |
| 4 | WCI 5304496242 |
| 5 | WCI 5304476863 |
| 6 | WCI 5304476864 |
| 7 | WCI 5304476865 |
| 8 | 5304536384 Frigidaire Electrical Control |
| 9 | 5304482356 Frigidaire Wire |
| 10 | 5304476178 Frigidaire Air Conditioner Door Assembly |
| 11 | 5304476179 Frigidaire Air Conditioner Sleeve |
| 12 | 5304476180 Frigidaire Power Cord Air Conditioner |
| 13 | 5304487535 Frigidaire Air Conditioner Remote Control |
| 14 | Cover,control box |
| 16 | 5304504724 Frigidaire Sensor |
| 17 | WCI 5304496237 |
| 18 | Strap,capacitor clamp |
| 19 | 5304495126 Frigidaire Air Conditioner Capacitor |
| 21 | WCI 5304492004 |
| 22 | WCI 5304495127 |
| 23 | WCI 5304495128 |
| 24 | WCI 5304495129 |
| 26 | WCI 5304495130 |
| 27 | WCI 5304495131 |
| 28 | WCI 5304495132 |
| 29 | 5304476201 Frigidaire Air Conditioner Filter Drier |
| 30 | WCI 5304495101 |
| 31 | Scroll,blower housing ,bottom |
| 32 | 5304495102 Frigidaire Scroll |
| 33 | WCI 5304495103 |
| 34 | Scroll,blower housing ,top |
| 35 | 5304485443 Frigidaire Air Conditioner Blower Wheel |
| 36 | WCI 5304495133 |
| 37 | 5304476059 Frigidaire Air Conditioner Fan Blade |
| 38 | WCI 5304495104 |
| 39 | Retainer,shutter ,cabinet sides |
| 40 | Cabinet,wrapper/sleeve |
| 41 | Rail,shutter track ,top angle |
| 42 | Screw Kit,top rail mount |
| 43 | 5304476200 Frigidaire Air Conditioner Window Filler Kit |
| 44 | 5304491953 Frigidaire Air Conditioner Hardware |
| 45 | Seal kit,foam ,sash filler |
