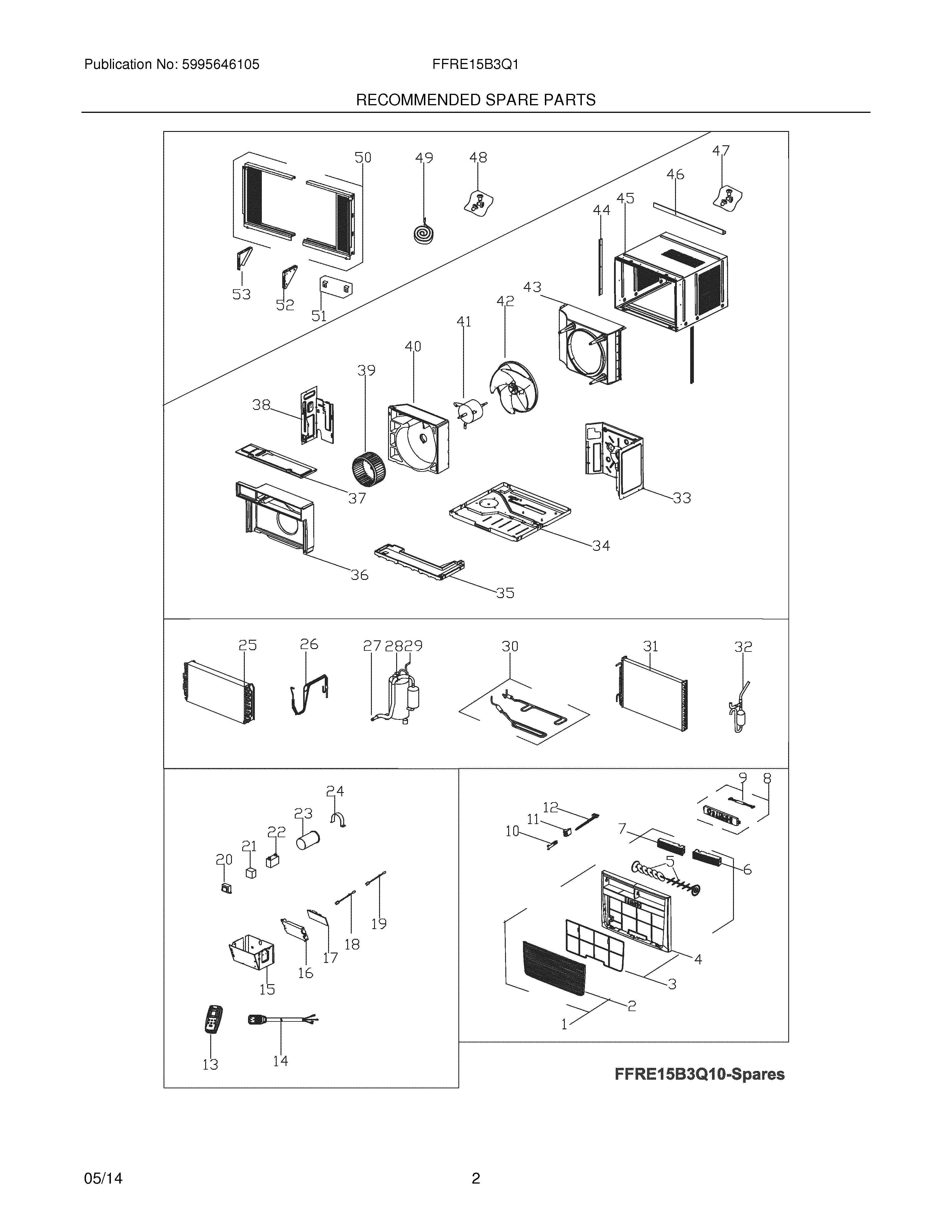

FFRE1533Q10 03 – RECOMMENDED SPARE PARTS

FFRE1533Q10 03 – RECOMMENDED SPARE PARTS

Written by

in

FFRE1533Q10 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476952
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304476953
55304476946 Frigidaire Louver
65304496310 Frigidaire Louver
75304496311 Frigidaire Louver Assembly
85304496312 Frigidaire Air Conditioner PC Board
95304496251 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
12Door,vent control ,with lever
135304501878 Frigidaire Remote Control
145304476180 Frigidaire Power Cord Air Conditioner
155304495623 Frigidaire Box Control
16WCI 5304495029
175304496252 Frigidaire Air Conditioner PC Board
185304504724 Frigidaire Sensor
195304512375 Frigidaire Air Conditioner Sensor
205304470989 Frigidaire Air Conditioner Transformer
21Ionizer,anion generator
225304483052 Frigidaire Air Conditioner Capacitor
235304471214 Frigidaire Air Conditioner Capacitor
24Strap,capacitor clamp
255304495624 Frigidaire Air Conditioner Evaporator
265304495625 Frigidaire Air Conditioner Tube
27WCI 5304495626
28WCI 5304493836
295304495627 Frigidaire Air Conditioner Tube
305304495628 Frigidaire Air Conditioner Tube
31WCI 5304495629
325304476367 Frigidaire Air Conditioner Filter Drier
33WCI 5304495630
34Base,unit chassis
35Tray,drip pan
36WCI 5304495631
375304495632 Frigidaire Cover
38WCI 5304495633
395304486010 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304483055 Frigidaire Air Conditioner Motor
42BLADE-FAN
435304495634 Frigidaire Air Conditioner Shroud
44Retainer,shutter ,cabinet sides
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top angle
47Screw Kit,top rail mount
48Hardware,mounting ,screws/locks
49Seal kit,foam ,sash & rails
50Window Filler Kit,slider panels ,accordion
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
