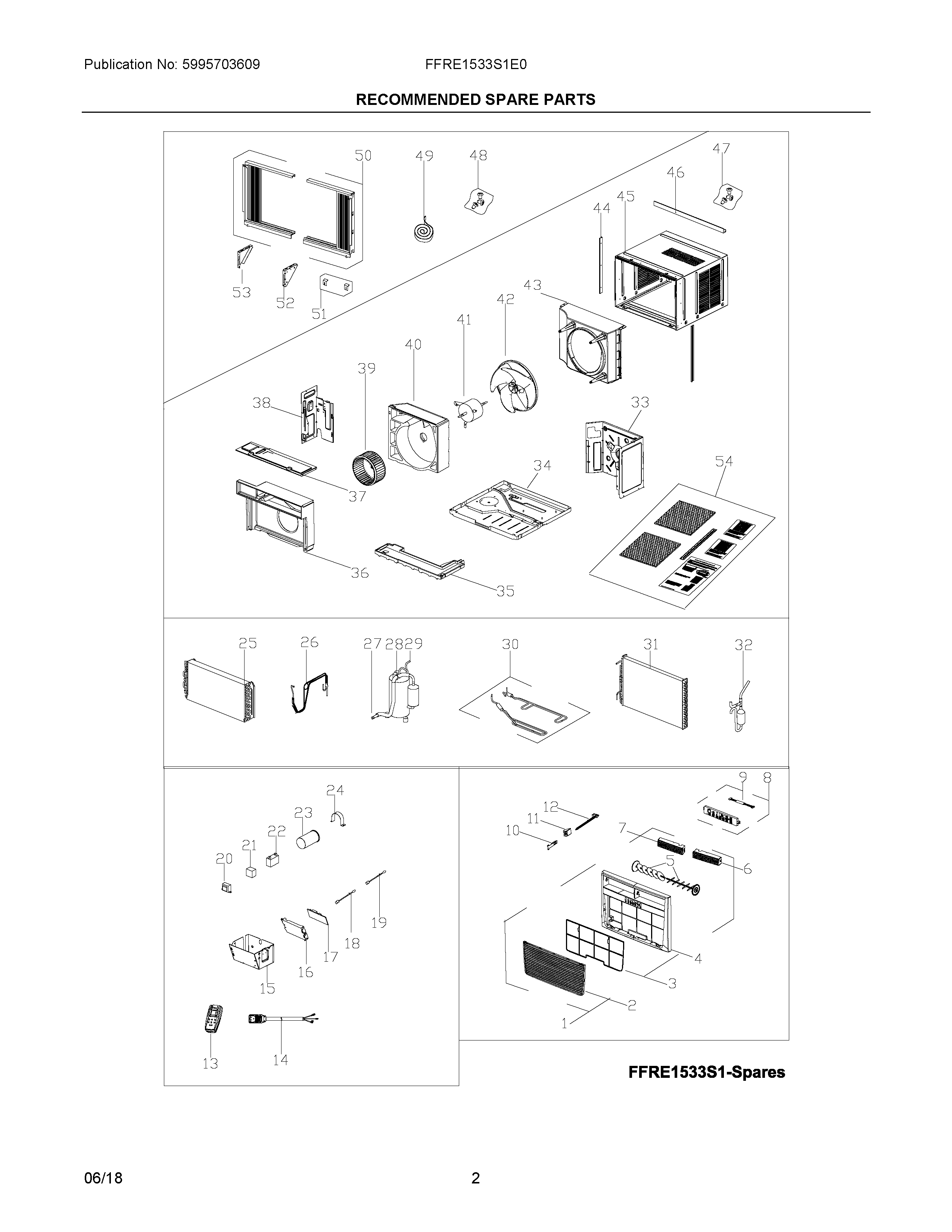

FFRE1533S1E0 02 – RECOMMENDED SPARE PARTS

FFRE1533S1E0 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRE1533S1E0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476952
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304476953
55304476946 Frigidaire Louver
65304496310 Frigidaire Louver
75304496311 Frigidaire Louver Assembly
85304496312 Frigidaire Air Conditioner PC Board
95304496251 Frigidaire Air Conditioner Wire
10WCI 5304512405
11LINK, LEVER/VENT DOOR, DETENTE
125304512407 Frigidaire Guide Sleeve
135304501878 Frigidaire Remote Control
145304476180 Frigidaire Power Cord Air Conditioner
155304512408 Frigidaire Control Box
165304512372 Frigidaire Holder
175304512373 Frigidaire Air Conditioner Electrical Control
185304504724 Frigidaire Sensor
195304512375 Frigidaire Air Conditioner Sensor
20Ionizer,anion generator
215304512409 Frigidaire Air Conditioner Transformer
225304483052 Frigidaire Air Conditioner Capacitor
235304471214 Frigidaire Air Conditioner Capacitor
24Strap,capacitor clamp
255304495624 Frigidaire Air Conditioner Evaporator
265304495625 Frigidaire Air Conditioner Tube
275304512410 Frigidaire Air Conditioner Suction Tube
285304504177 Frigidaire Air Conditioner Compressor
295304495627 Frigidaire Air Conditioner Tube
305304495628 Frigidaire Air Conditioner Tube
315304512411 Frigidaire Air Conditioner Condenser
325304476367 Frigidaire Air Conditioner Filter Drier
33WCI 5304495630
34Base,unit chassis
35Tray,drip pan
36WCI 5304495631
375304495632 Frigidaire Cover
38BULKHEAD, PARTITION, FRONT/LEFT
395304486010 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304483055 Frigidaire Air Conditioner Motor
42BLADE-FAN
435304495634 Frigidaire Air Conditioner Shroud
44RETAINER, SHUTTER, CABINET SIDES
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top angle
47Screw Kit,top rail mount
48Hardware,mounting ,screws/locks
49Seal kit,foam ,sash & rails
505304504834 Frigidaire Window Filler Kit Air Conditioner
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
54WCI 5304504919
