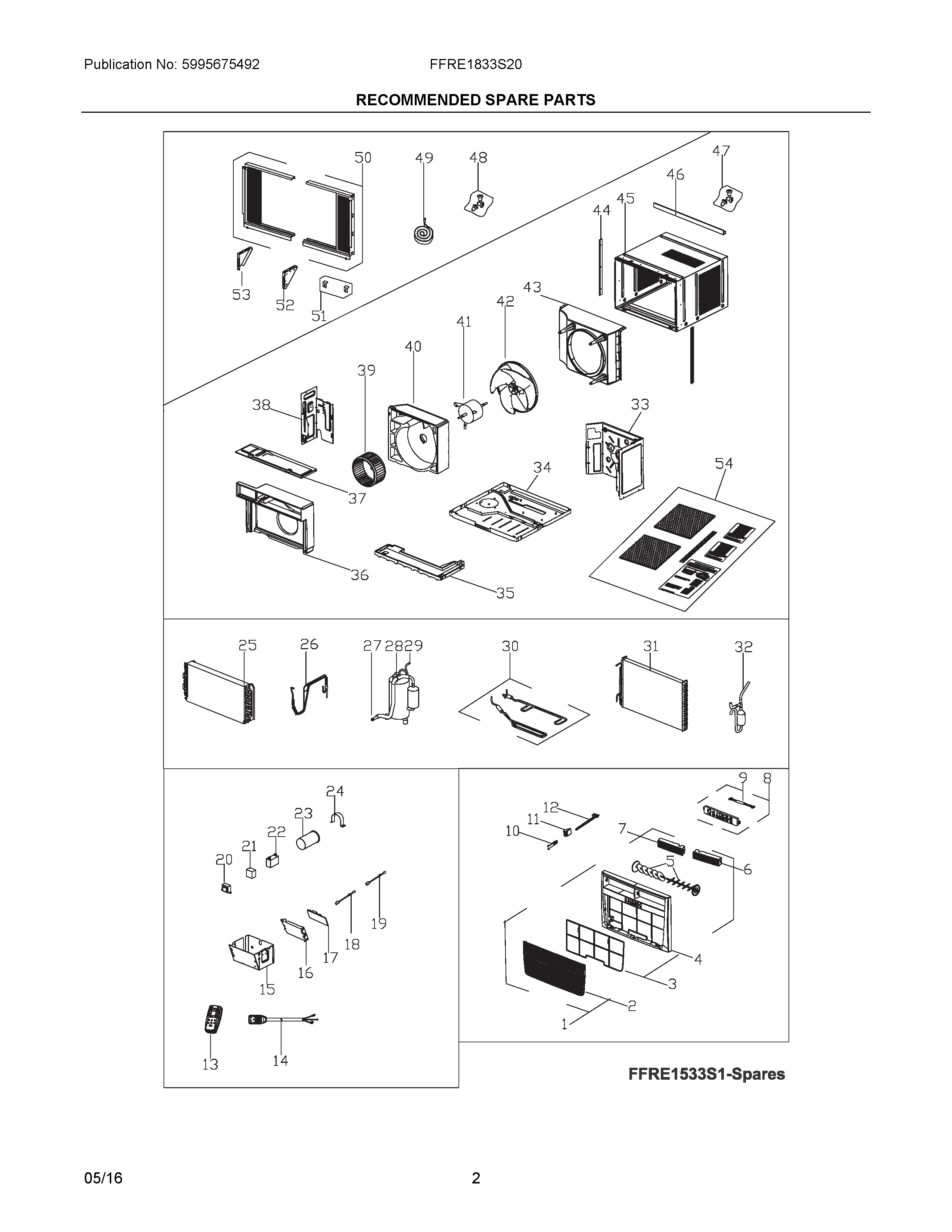

FFRE1833S20 02 – RECOMMENDED SPARE PARTS

FFRE1833S20 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRE1833S20 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476952
2	Panel,front grille ,tilt-out
3	5304525598 Frigidaire Air Conditioner Filter
4	WCI 5304476953
5	5304476946 Frigidaire Louver
6	5304496310 Frigidaire Louver
7	5304496311 Frigidaire Louver Assembly
8	5304496312 Frigidaire Air Conditioner PC Board
9	5304496251 Frigidaire Air Conditioner Wire
10	5304495010 Frigidaire Air Conditioner Handle
11	5304476359 Frigidaire Air Conditioner Link Assembly
12	Door,vent control ,with lever
13	5304501878 Frigidaire Remote Control
14	Power Cord,electric ,LCDI
15	5304495623 Frigidaire Box Control
16	WCI 5304495029
17	5304496252 Frigidaire Air Conditioner PC Board
18	5304504724 Frigidaire Sensor
19	5304512375 Frigidaire Air Conditioner Sensor
20	5304471063 Frigidaire Air Conditioner Transformer
21	5304472418 Frigidaire Air Conditioner IONIZER
22	5304504920 Frigidaire Air Conditioner Capacitor
23	5304495651 Frigidaire Air Conditioner Capacitor
24	Strap,capacitor clamp
25	5304495652 Frigidaire Air Conditioner Evaporator
26	5304495653 Frigidaire Air Conditioner Tube
27	5304495654 Frigidaire Air Conditioner Tube
28	5304504179 Frigidaire Air Conditioner Compressor
29	WCI 5304495656
30	5304495628 Frigidaire Air Conditioner Tube
31	5304495657 Frigidaire Air Conditioner Condenser
32	5304476367 Frigidaire Air Conditioner Filter Drier
33	WCI 5304495630
34	Base,unit chassis
35	Tray,drip pan
36	WCI 5304495631
37	5304495632 Frigidaire Cover
38	BULKHEAD, PARTITION, FRONT/LEFT
39	5304504842 Frigidaire Air Conditioner Blower Wheel
40	Scroll,blower housing ,rear
41	5304504180 Frigidaire Air Conditioner Motor
42	BLADE-FAN
43	5304495634 Frigidaire Air Conditioner Shroud
44	RETAINER, SHUTTER, CABINET SIDES
45	Cabinet,wrapper/sleeve
46	Rail,shutter track ,top angle
47	Screw Kit,top rail mount
48	Hardware,mounting ,screws/locks
49	Seal kit,foam ,sash & rails
50	5304504834 Frigidaire Window Filler Kit Air Conditioner
51	Bracket,sill angle
52	Bracket,mounting ,right window
53	Bracket,mounting ,left window
54	WCI 5304504919
