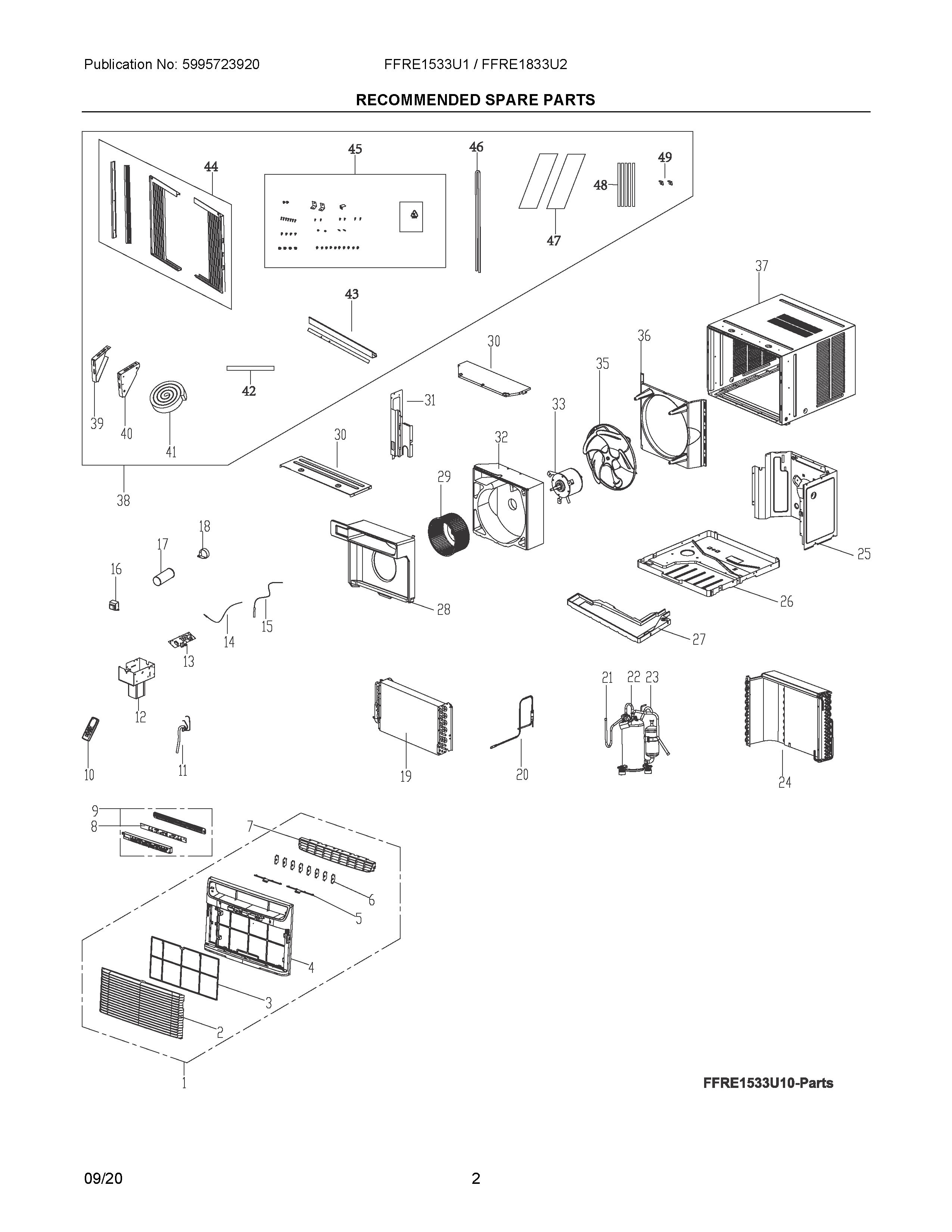

FFRE1833U20 02 – RECOMMENDED SPARE PARTS

FFRE1833U20 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRE1833U20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
15304525634 Frigidaire Panel Front
25304516312 Frigidaire Grille
35304525501 Frigidaire Air Conditioner Filter
4FRAME, FRONT
5LEVER, AIR LOUVER, (2)
65304515942 Frigidaire Louver
75304516316 Frigidaire Louvre
85304516317 Frigidaire Air Conditioner Control Board
9CONTROL PANEL, ASSEMBLY, W/BOARD
105304515943 Frigidaire Air Conditioner Remote Control
115304516319 Frigidaire Air Conditioner Power Cord
12BOX ASSEMBLY, ELECTRICAL
135304516321 Frigidaire Air Conditioner PC Board
14WCI 5304459746
155304459793 Frigidaire Air Conditioner Thermistor
16TRANSFORMER
175304516323 Frigidaire Capacitor
18WCI 5304459182
19EVAPORATOR, ASSEMBLY
20TUBE ASSEMBLY, CAPILARY
21TUBE, DISCHARGE
22COMPRESSOR
23TUBE, SUCTION
245304516330 Frigidaire Air Conditioner Condenser
25BRACKET, CLAPBOARD
26BASE ASSEMBLY, CHASSIS
27TRAY, DRIP
28AIR DUCT, FRONT
295304516336 Frigidaire Wheel Assembly
305304516337 Frigidaire Cover
31BRACKET, CLAPBOARD, SIDE
32AIR DUCT, VOLUTE, REAR
335304516340 Frigidaire Air Conditioner Motor
355304516341 Frigidaire Air Conditioner Blade Assembly
36SHROUD, CONDENSER FAN
37OUTER CABINET, ASSEMBLY
38INSTALLATION KIT, WINDOW MTG, COMPLETE
39BRACKET, CABINET, RH
405304516346 Frigidaire Air Conditioner Bracket
41WCI 5304459559
42RULER
43RAIL, TOP
44FILLER KIT, WINDOW PANEL
45HARDWARE KIT, INSTALLATION
46WCI 5304459560
475304516351 Frigidaire Air Conditioner Insulation Panel
48SEAL KIT, FOAM, SASH FILLER
49SAFETY LOCK, L-SHAPE BRACKET, (2)
