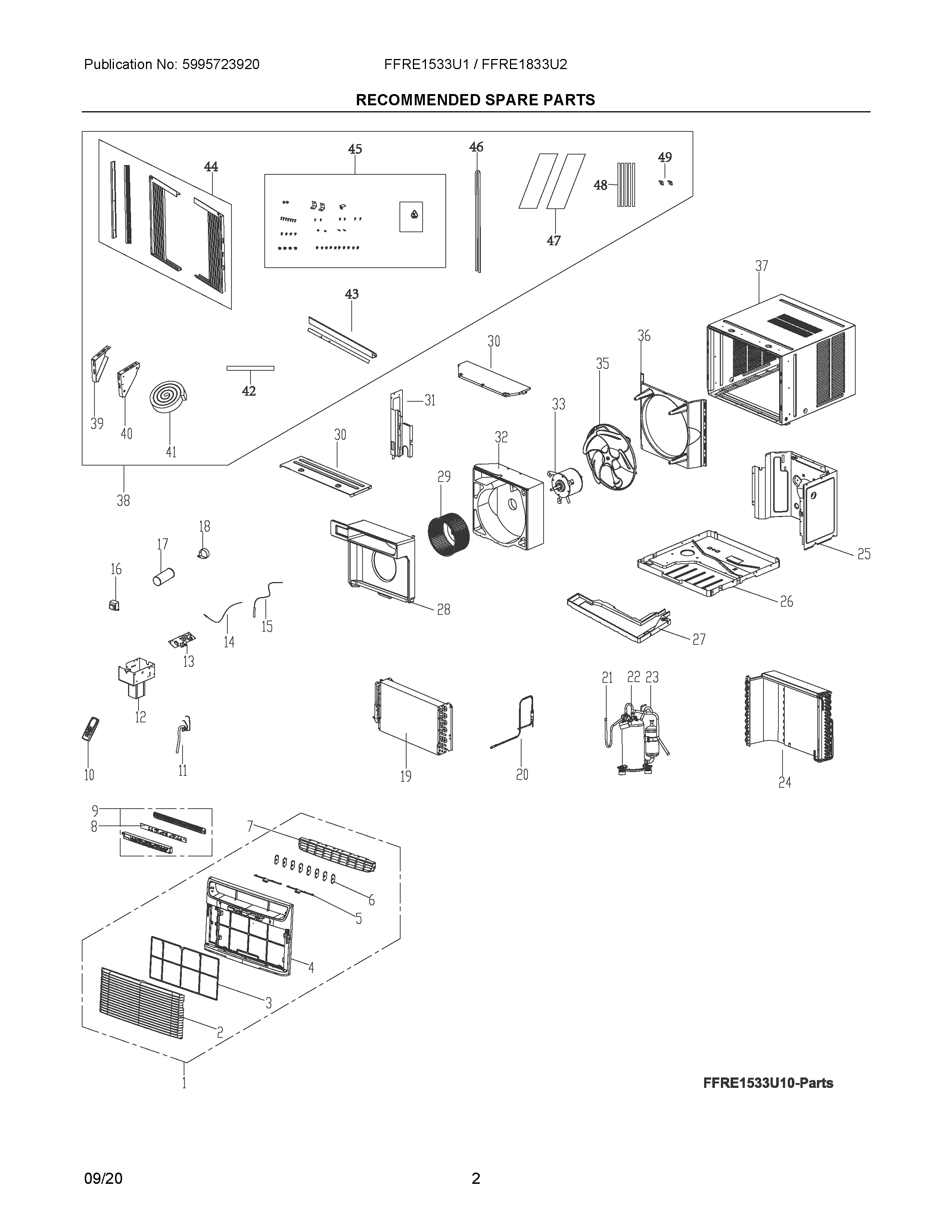

FFRE1833U2E0 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	FRONT PANEL, ASSEMBLY, W/FILTER
2	5304516312 Frigidaire Grille
3	5304525501 Frigidaire Air Conditioner Filter
4	FRAME, FRONT
5	LEVER, AIR LOUVER, (2)
6	5304515942 Frigidaire Louver
7	5304516316 Frigidaire Louvre
8	5304516317 Frigidaire Air Conditioner Control Board
9	5304516353 Frigidaire Air Conditioner Control Panel
10	5304515943 Frigidaire Air Conditioner Remote Control
11	5304516354 Frigidaire Air Conditioner Power Cord
12	BOX ASSEMBLY, ELECTRICAL
13	5304516355 Frigidaire PC Board
14	WCI 5304459746
15	5304459793 Frigidaire Air Conditioner Thermistor
16	TRANSFORMER
17	5304516323 Frigidaire Capacitor
18	WCI 5304459182
19	EVAPORATOR, ASSEMBLY
20	TUBE ASSEMBLY, CAPILARY
21	5304516358 Frigidaire Air Conditioner Tube
22	5304516359 Frigidaire Air Conditioner Compressor
23	5304516360 Frigidaire Air Conditioner Tube
24	5304516361 Frigidaire Air Conditioner Condenser
25	BRACKET, CLAPBOARD
26	BASE ASSEMBLY, CHASSIS
27	TRAY, DRIP
28	AIR DUCT, FRONT
29	WHEEL, BLOWER
30	5304516337 Frigidaire Cover
31	BRACKET, CLAPBOARD, SIDE
32	AIR DUCT, VOLUTE, REAR
33	5304516368 Frigidaire Motor
35	5304516341 Frigidaire Air Conditioner Blade Assembly
36	SHROUD, CONDENSER FAN
37	OUTER CABINET, ASSEMBLY
38	INSTALLATION KIT, WINDOW MTG, COMPLETE
39	BRACKET, CABINET, RH
40	5304516346 Frigidaire Air Conditioner Bracket
41	WCI 5304459559
42	RULER
43	RAIL, TOP
44	FILLER KIT, WINDOW PANEL
45	HARDWARE KIT, INSTALLATION
46	WCI 5304459560
47	5304516351 Frigidaire Air Conditioner Insulation Panel
48	SEAL KIT, FOAM, SASH FILLER
49	SAFETY LOCK, L-SHAPE BRACKET, (2)
