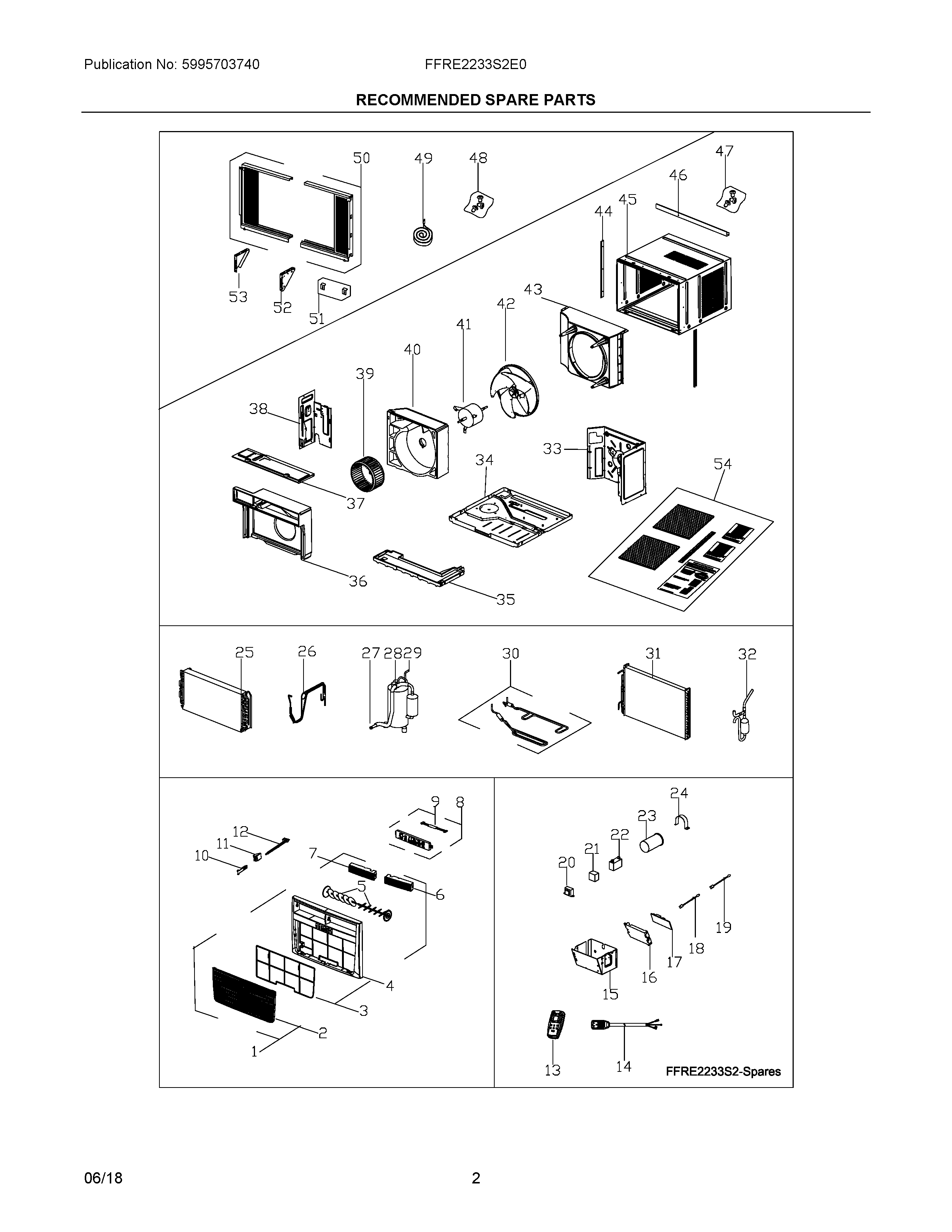

FFRE2233S2E0 02 – RECOMMENDED SPARE PARTS

FFRE2233S2E0 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRE2233S2E0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NIWCI 5304504911
1WCI 5304477142
25304477143 Frigidaire Front Grille
3FILTER
4WCI 5304477145
55304477146 Frigidaire LOUVER
65304477147 Frigidaire Louver
75304477148 Frigidaire LOUVER
85304496250 Frigidaire Air Conditioner PC Board
95304496251 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
125304477149 Frigidaire Air Conditioner Door Assembly
135304501878 Frigidaire Remote Control
145304512370 Frigidaire Air Conditioner Power Cord
15WCI 5304512371
165304512372 Frigidaire Holder
175304512373 Frigidaire Air Conditioner Electrical Control
185304512374 Frigidaire Air Conditioner Sensor
195304512375 Frigidaire Air Conditioner Sensor
205304512376 Frigidaire Air Conditioner Transformer
21WCI 5304512377
225304512378 Frigidaire Air Conditioner Capacitor
235304512379 Frigidaire Air Conditioner Capacitor
24WCI 5304512380
25WCI 5304512381
265304512382 Frigidaire Tube
27WCI 5304482880
285304504909 Frigidaire Compressor Assembly
295304496255 Frigidaire Tube
305304500879 Frigidaire Air Conditioner Tube
315304500880 Frigidaire Air Conditioner Condenser
325304476257 Frigidaire Air Conditioner Filter Drier
33WCI 5304495036
34Base,unit chassis
35Tray,drip pan ,foam
365304495037 Frigidaire Scroll Assembly
37WCI 5304495038
38BULKHEAD, PARTITION, FRONT/LEFT
395304472407 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304482882 Frigidaire Air Conditioner Motor
42BLADE-FAN
435304495040 Frigidaire Air Conditioner Shroud
44RETAINER, SHUTTER, CABINET SIDES
45Cabinet,wrapper/sleeve
46Rail,shutter track ,top channel
47Screw Kit,top rail mount
48Hardware,mounting ,screws/locks
49Seal kit,foam ,sash & rails
50WINDOW FILLER KIT, SLIDER PANEL
51Bracket,sill angle
52Bracket,mounting ,right window
53Bracket,mounting ,left window
