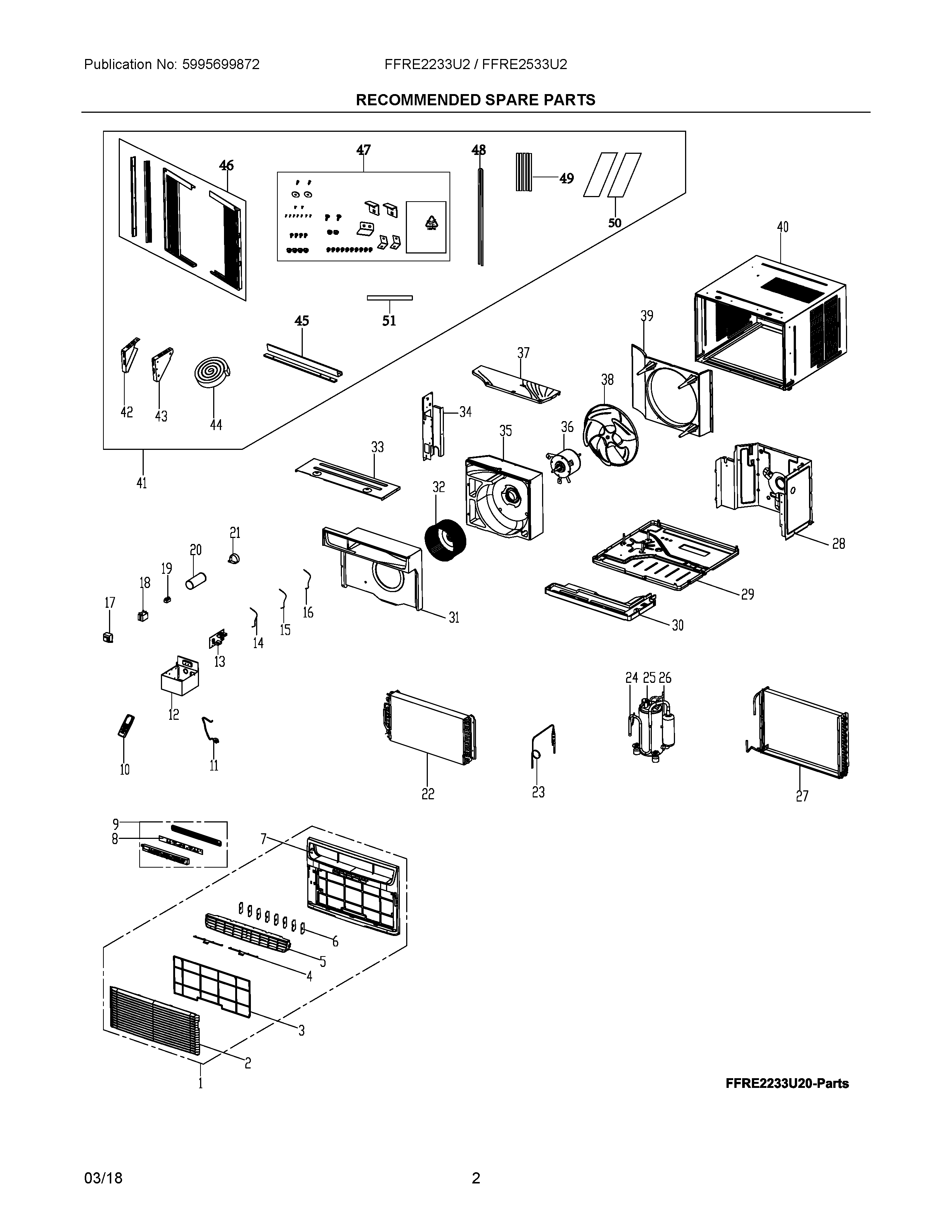

FFRE2233U2E0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304516394
2WCI 5304516395
35304525636 Frigidaire Filter
4WCI 5304516397
5WCI 5304516398
6WCI 5304516399
7WCI 5304516400
85304516317 Frigidaire Air Conditioner Control Board
9CONTROL PANEL, ASSEMBLY, W/BOARD
105304515943 Frigidaire Air Conditioner Remote Control
115304516354 Frigidaire Air Conditioner Power Cord
12WCI 5304516401
135304516402 Frigidaire Air Conditioner Assembly Board
14WCI 5304459746
155304516403 Frigidaire Thermister
165304516404 Frigidaire Thermistor
17TRANSFORMER
185304510697 Frigidaire Relay
195304459674 Frigidaire Air Conditioner Terminal Block
205304516405 Frigidaire Capacitor
21WCI 5304459183
225304516406 Frigidaire Air Conditioner Evaporator Assembly
23WCI 5304516407
245304516408 Frigidaire Tube
255304516409 Frigidaire Compressor
265304516410 Frigidaire Tube
27WCI 5304516411
28WCI 5304516412
29WCI 5304516413
30WCI 5304516414
31WCI 5304516415
325304516336 Frigidaire Wheel Assembly
33WCI 5304516416
34WCI 5304516417
35WCI 5304516418
365304516419 Frigidaire Motor
37WCI 5304459571
385304516341 Frigidaire Air Conditioner Blade Assembly
395304516420 Frigidaire Shroud
40WCI 5304516421
41WCI 5304516422
42BRACKET, CABINET, RH
435304516346 Frigidaire Air Conditioner Bracket
44WCI 5304459559
455304516423 Frigidaire Rail
46WCI 5304516424
47WCI 5304516425
48WCI 5304459560
49WCI 5304516426
50WCI 5304516427
51RULER
