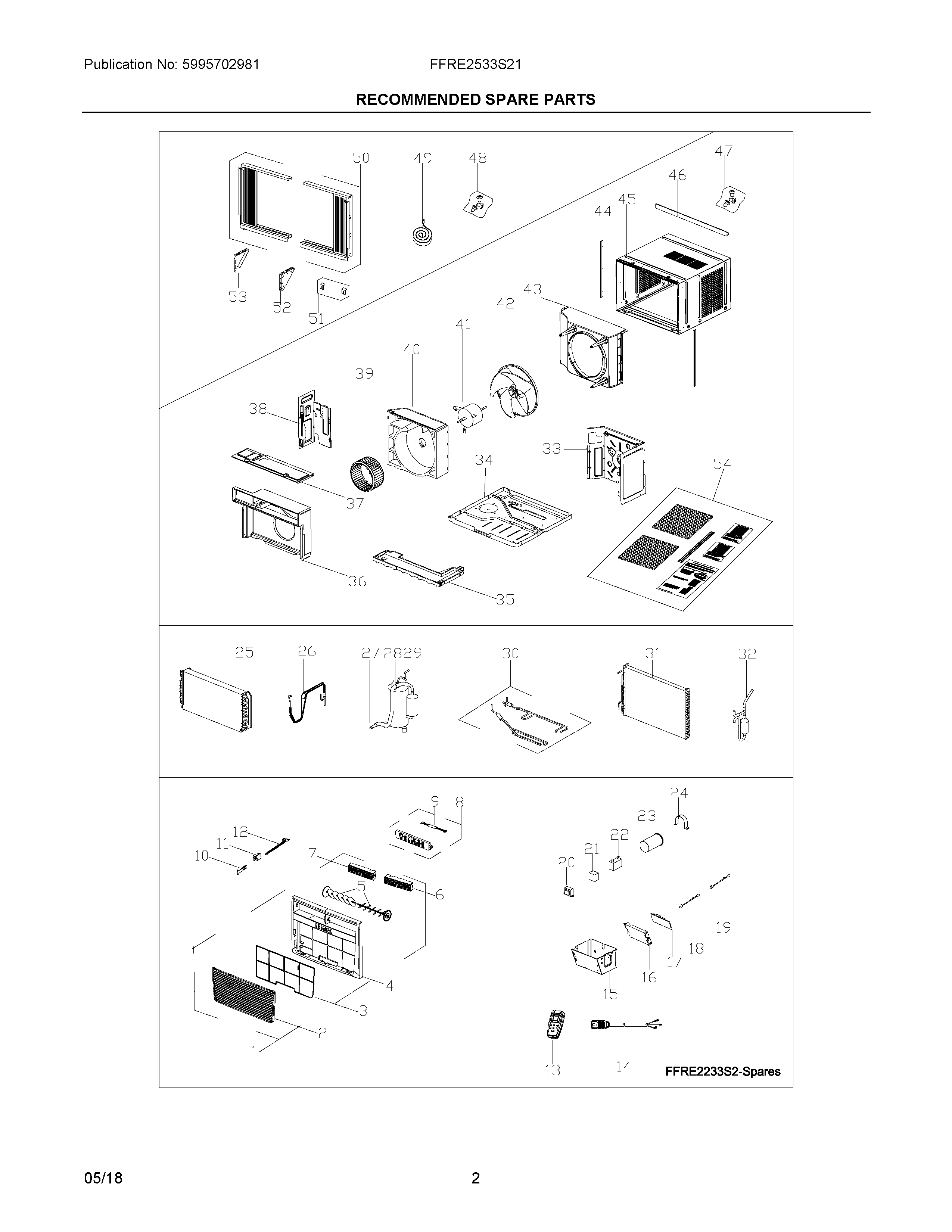

FFRE2533S21 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477142
2	5304477143 Frigidaire Front Grille
3	FILTER
4	WCI 5304477145
5	5304477146 Frigidaire LOUVER
6	5304477147 Frigidaire Louver
7	5304477148 Frigidaire LOUVER
8	5304496250 Frigidaire Air Conditioner PC Board
9	5304496251 Frigidaire Air Conditioner Wire
10	5304495010 Frigidaire Air Conditioner Handle
11	5304476359 Frigidaire Air Conditioner Link Assembly
12	5304477149 Frigidaire Air Conditioner Door Assembly
13	5304501878 Frigidaire Remote Control
14	5304536813 Frigidaire Power Cord
15	WCI 5304512384
16	5304512372 Frigidaire Holder
17	5304512373 Frigidaire Air Conditioner Electrical Control
18	5304512374 Frigidaire Air Conditioner Sensor
19	5304512375 Frigidaire Air Conditioner Sensor
20	5304512376 Frigidaire Air Conditioner Transformer
21	WCI 5304512377
22	5304512378 Frigidaire Air Conditioner Capacitor
23	5304512385 Frigidaire Air Conditioner Capacitor
24	WCI 5304512380
25	5304512386 Frigidaire Air Conditioner Evaporator Assembly
26	5304512387 Frigidaire Air Conditioner Tube
27	5304495033 Frigidaire Air Conditioner Tube
28	5304504182 Frigidaire Air Conditioner Compressor
29	5304495034 Frigidaire Air Conditioner Tube
30	5304500879 Frigidaire Air Conditioner Tube
31	5304500880 Frigidaire Air Conditioner Condenser
32	5304476257 Frigidaire Air Conditioner Filter Drier
33	WCI 5304495036
34	Base,unit chassis
35	Tray,drip pan ,foam
36	5304495037 Frigidaire Scroll Assembly
37	WCI 5304495038
38	BULKHEAD, PARTITION, FRONT/LEFT
39	5304472407 Frigidaire Air Conditioner Blower Wheel
40	Scroll,blower housing ,rear
41	5304482882 Frigidaire Air Conditioner Motor
42	BLADE-FAN
43	5304495040 Frigidaire Air Conditioner Shroud
44	RETAINER, SHUTTER, CABINET SIDES
45	Cabinet,wrapper/sleeve
46	Rail,shutter track ,top channel
47	Screw Kit,top rail mount
48	Hardware,mounting ,screws/locks
49	Seal kit,foam ,sash & rails
50	WINDOW FILLER KIT, SLIDER PANEL
51	Bracket,sill angle
52	Bracket,mounting ,right window
53	Bracket,mounting ,left window
54	WCI 5304504911
