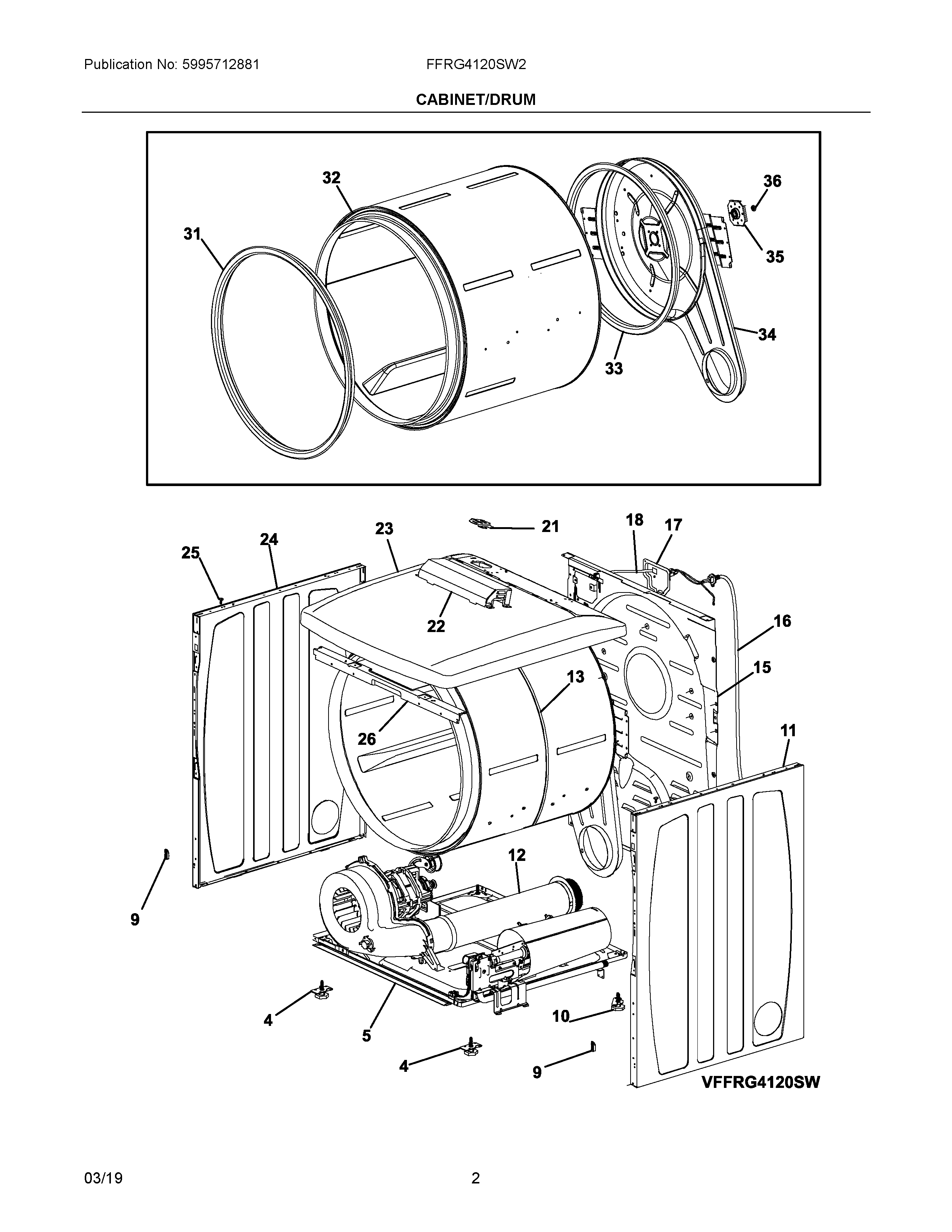

FFRG4120SW2 02 – CABINET/DRUM

FFRG4120SW2 02 – CABINET/DRUM

Written by

in

FFRG4120SW2 02 – CABINET/DRUM

Products

PositionProduct
45304511372 Frigidaire Foot Assembly
5BASE ASSEMBLY, CABINET
95304511376 Frigidaire Pin
105304511377 Frigidaire Foot Assembly
115304511378 Frigidaire Panel
12VENT PICE ASSY REAR
135304511380 Frigidaire Belt
155304521164 Frigidaire Cover
165304511437 Frigidaire Power Cord
175304511438 Frigidaire Cover
185304511439 Frigidaire Harness
21COVER, HOLE, LINE SPEED
225304511386 Frigidaire Cover
235304511387 Frigidaire Top Cover
245304511388 Frigidaire Panel
255304511389 Frigidaire Screw
265304511390 Frigidaire Rail Assembly
315304511391 Frigidaire Felt Seal
325304511392 Frigidaire Drum Assembly
335304511393 Frigidaire Felt Seal
345304511394 Frigidaire Duct Assembly
355304511395 Frigidaire Bearing Housing
365304511396 Frigidaire Nut
