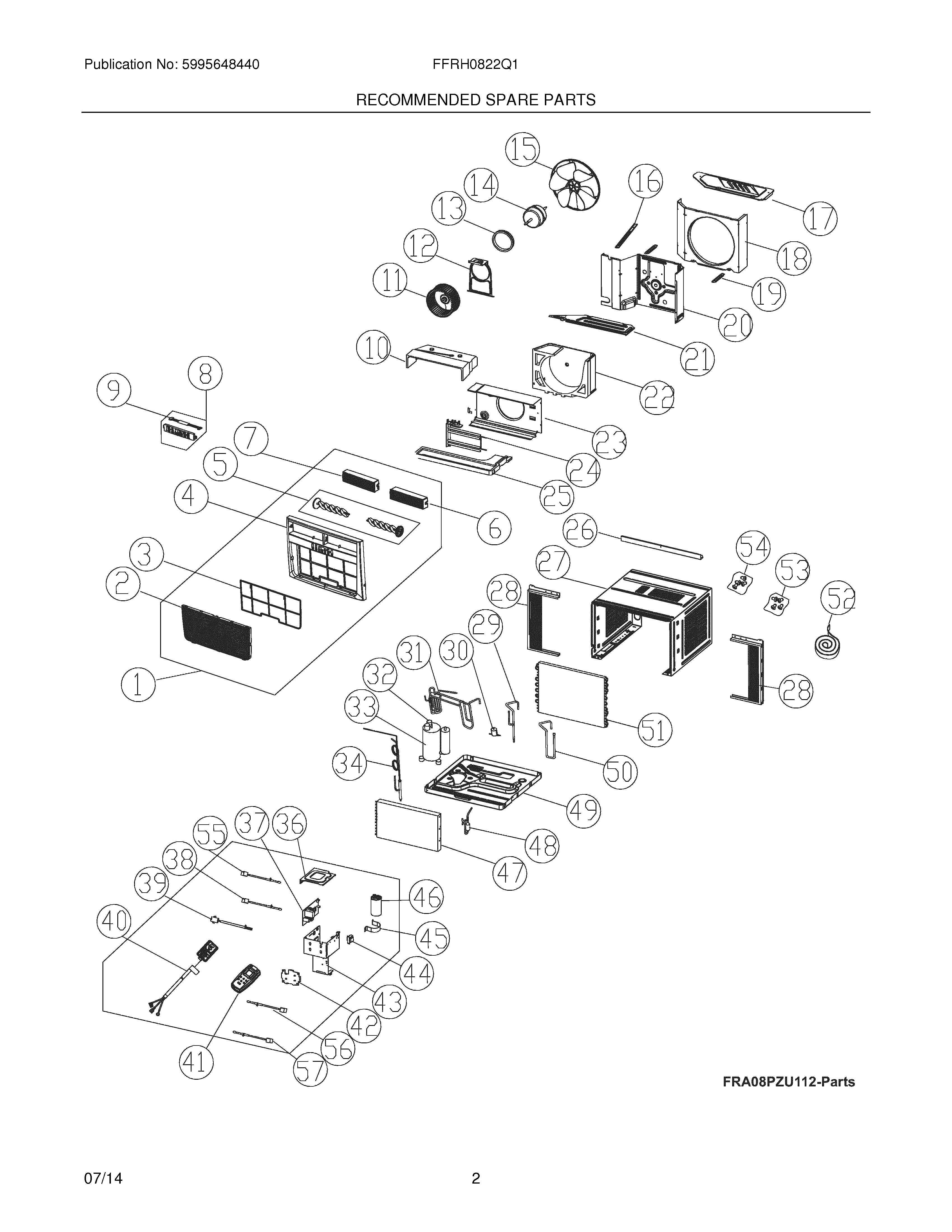

FFRH0822Q11 03 – RECOMMENDED SPARE PARTS

FFRH0822Q11 03 – RECOMMENDED SPARE PARTS

Written by

in

FFRH0822Q11 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1FRONT ASSEMBLY, COMPLETE PANEL
2Panel,front grill
35304535825 Frigidaire Air Filter
4FRAME, FRONT ASSEMBLY
55304483207 Frigidaire Louver
6LOUVER, HORIZONTAL, RIGHT
7LOUVER,HORIZONTAL,LEFT
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
10WCI 5304483210
115304471312 Frigidaire Air Conditioner Blower Wheel
12WCI 5304471285
13WCI 5304471286
14WCI 5304471284
155304471287 Frigidaire Air Conditioner Fan Blade
16WCI 5304471254
17WCI 5304471288
18WCI 5304483211
19WCI 5304471253
20WCI 5304487602
21WCI 5304476388
22WCI 5304471301
23WCI 5304495588
245304477339 Frigidaire Air Conditioner Heater
25WCI 5304471265
26Rail,shutter ,top channel
27Cabinet,wrapper/sleeve
28Window Filler Kit,slider panels ,accordion
29WCI 5304496427
30Valve,drain
31WCI 5304496428
32Overload Protector,compressor
33WCI 5304483171
34WCI 5304487609
36WCI 5304483214
375304496429 Frigidaire Air Conditioner PC Board
385304512374 Frigidaire Air Conditioner Sensor
395304512375 Frigidaire Air Conditioner Sensor
40WCI 5304476457
41REMOTE CONTROL TRANSMITTER
42WCI 5304487610
43WCI 5304483218
445304470989 Frigidaire Air Conditioner Transformer
45Strap,capacitor clamp
46WCI 5304476003
47WCI 5304487611
485304476367 Frigidaire Air Conditioner Filter Drier
49WCI 5304483220
50WCI 5304496430
51WCI 5304496431
52Seal kit,window ,foam strips
53Hardware Kit,installation
54Screw Kit,top rail mount
55SENSOR
565304483216 Frigidaire Air Conditioner Sensor
575304490066 Frigidaire Air Conditioner Sensor
