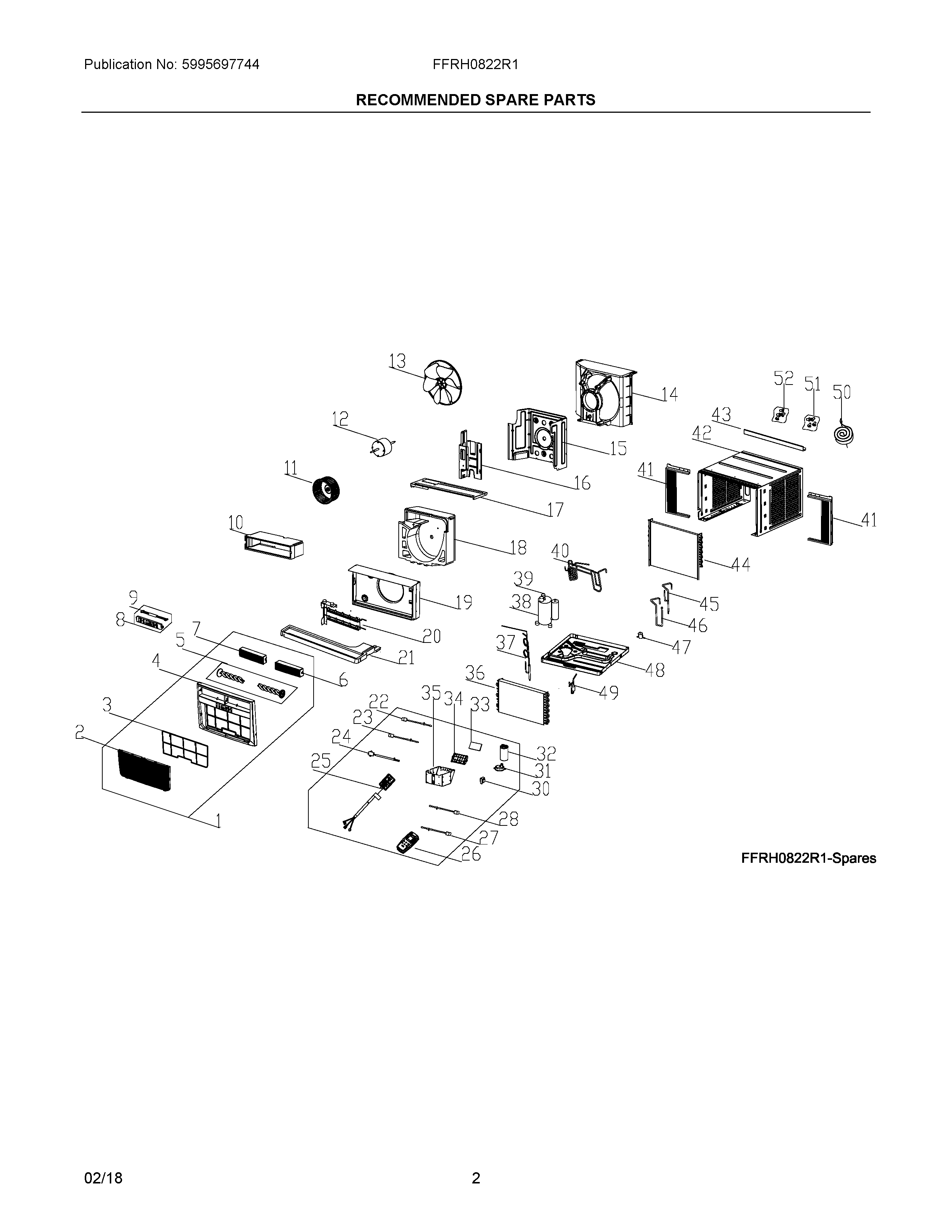

FFRH0822R12 02 – RECOMMENDED SPARE PARTS

FFRH0822R12 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRH0822R12 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1FRONT ASSEMBLY, COMPLETE PANEL
2Panel,front grill
35304535825 Frigidaire Air Filter
4FRAME, FRONT ASSEMBLY
55304483207 Frigidaire Louver
6LOUVER, HORIZONTAL, RIGHT
7LOUVER,HORIZONTAL,LEFT
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
10WCI 5304501888
115304471312 Frigidaire Air Conditioner Blower Wheel
125304501889 Frigidaire Air Conditioner Motor
135304471287 Frigidaire Air Conditioner Fan Blade
14WCI 5304501062
15WCI 5304501063
16WCI 5304501064
17WCI 5304501065
18WCI 5304501890
19WCI 5304501067
205304477339 Frigidaire Air Conditioner Heater
21WCI 5304501068
22SENSOR
235304512374 Frigidaire Air Conditioner Sensor
245304512375 Frigidaire Air Conditioner Sensor
255304501891 Frigidaire Air Conditioner Power Cord
26REMOTE CONTROL TRANSMITTER
275304483216 Frigidaire Air Conditioner Sensor
285304490066 Frigidaire Air Conditioner Sensor
305304512409 Frigidaire Air Conditioner Transformer
315304512422 Frigidaire Clamp
325304512423 Frigidaire Air Conditioner Capacitor
335304512424 Frigidaire Air Conditioner PC Board
345304512372 Frigidaire Holder
35WCI 5304512425
36WCI 5304501892
375304501893 Frigidaire Air Conditioner Tube
385304512426 Frigidaire Air Conditioner Compressor
395304492022 Frigidaire Air Conditioner Overload Protector
405304501894 Frigidaire Valve
41Window Filler Kit,slider panels ,accordion
42Cabinet,wrapper/sleeve
43Rail,shutter ,top channel
44WCI 5304512427
45WCI 5304496434
46WCI 5304496432
47Valve,drain
48WCI 5304501896
495304476367 Frigidaire Air Conditioner Filter Drier
50Seal kit,window ,foam strips
51Hardware Kit,installation
52Screw Kit,top rail mount
