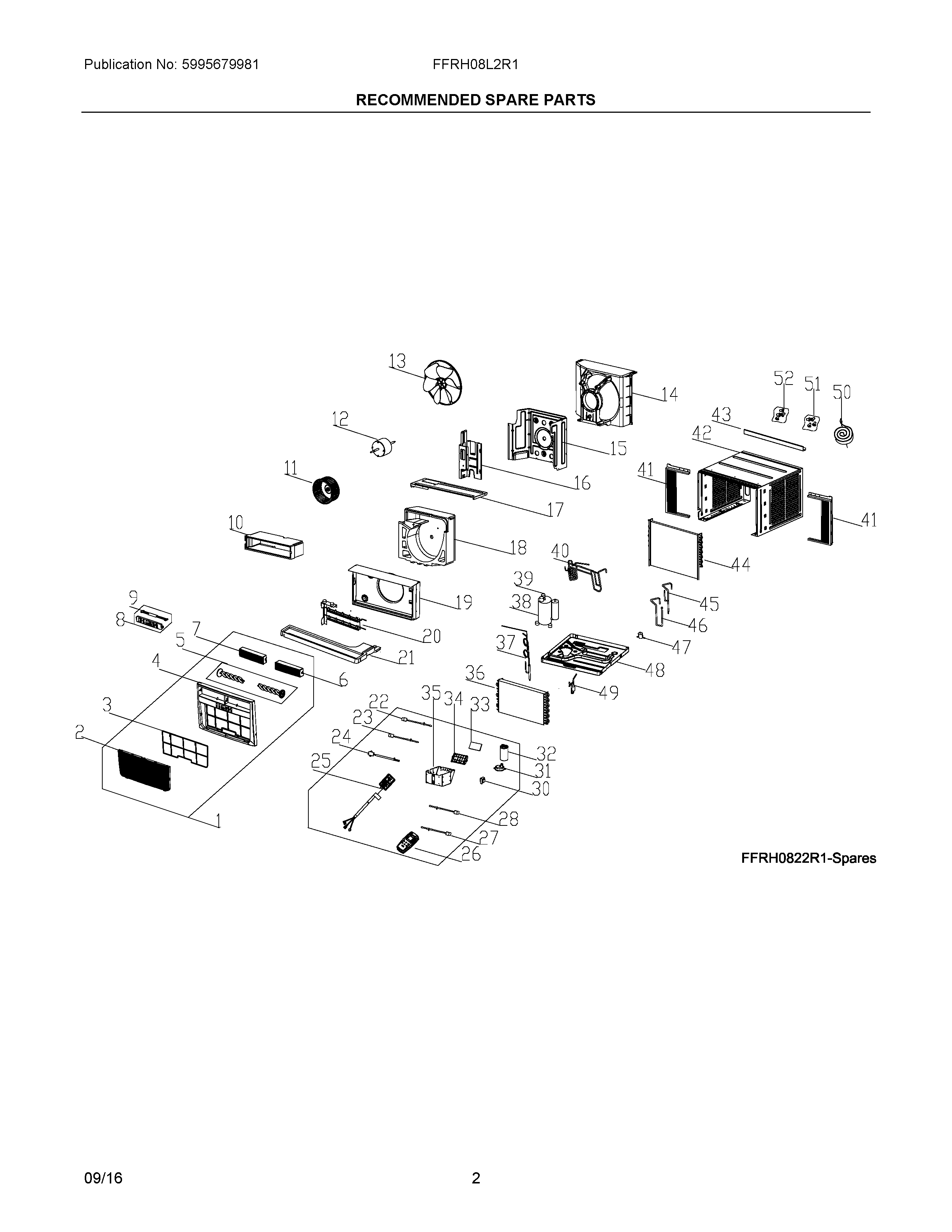

FFRH08L2R11 02 – RECOMMENDED SPARE PARTS

FFRH08L2R11 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRH08L2R11 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Front Assembly,complete panel
2· Panel,front
35304535825 Frigidaire Air Filter
4· Frame,front assembly
55304483226 Frigidaire Air Conditioner Louver
65304483227 Frigidaire Air Conditioner Louver
7· Louver,horizontal ,left
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
10WCI 5304501888
115304471312 Frigidaire Air Conditioner Blower Wheel
125304501889 Frigidaire Air Conditioner Motor
135304507757 Frigidaire Air Conditioner Fan Blade
14WCI 5304501062
15WCI 5304501063
16WCI 5304501064
17WCI 5304501065
18WCI 5304501890
19WCI 5304501067
205304477339 Frigidaire Air Conditioner Heater
21WCI 5304501068
22SENSOR
235304512374 Frigidaire Air Conditioner Sensor
245304512375 Frigidaire Air Conditioner Sensor
255304501891 Frigidaire Air Conditioner Power Cord
265304492053 Frigidaire Air Conditioner Remote Control
275304483216 Frigidaire Air Conditioner Sensor
285304490066 Frigidaire Air Conditioner Sensor
305304470989 Frigidaire Air Conditioner Transformer
31WCI 5304501069
325304471294 Frigidaire CAPACITOR
335304496429 Frigidaire Air Conditioner PC Board
34WCI 5304495029
35WCI 5304501070
36WCI 5304501892
375304501893 Frigidaire Air Conditioner Tube
38WCI 5304493827
39WCI 5304495930
40WCI 5304501954
41Window Filler Kit,slider panels ,accordion
42Cabinet,wrapper/sleeve
43Rail,shutter ,top channel
44WCI 5304501895
45WCI 5304496430
46WCI 5304496427
47Valve,drain
48WCI 5304501896
495304476367 Frigidaire Air Conditioner Filter Drier
50Seal kit,window ,foam strips
51Hardware Kit,installation
52Screw Kit,top rail mount
