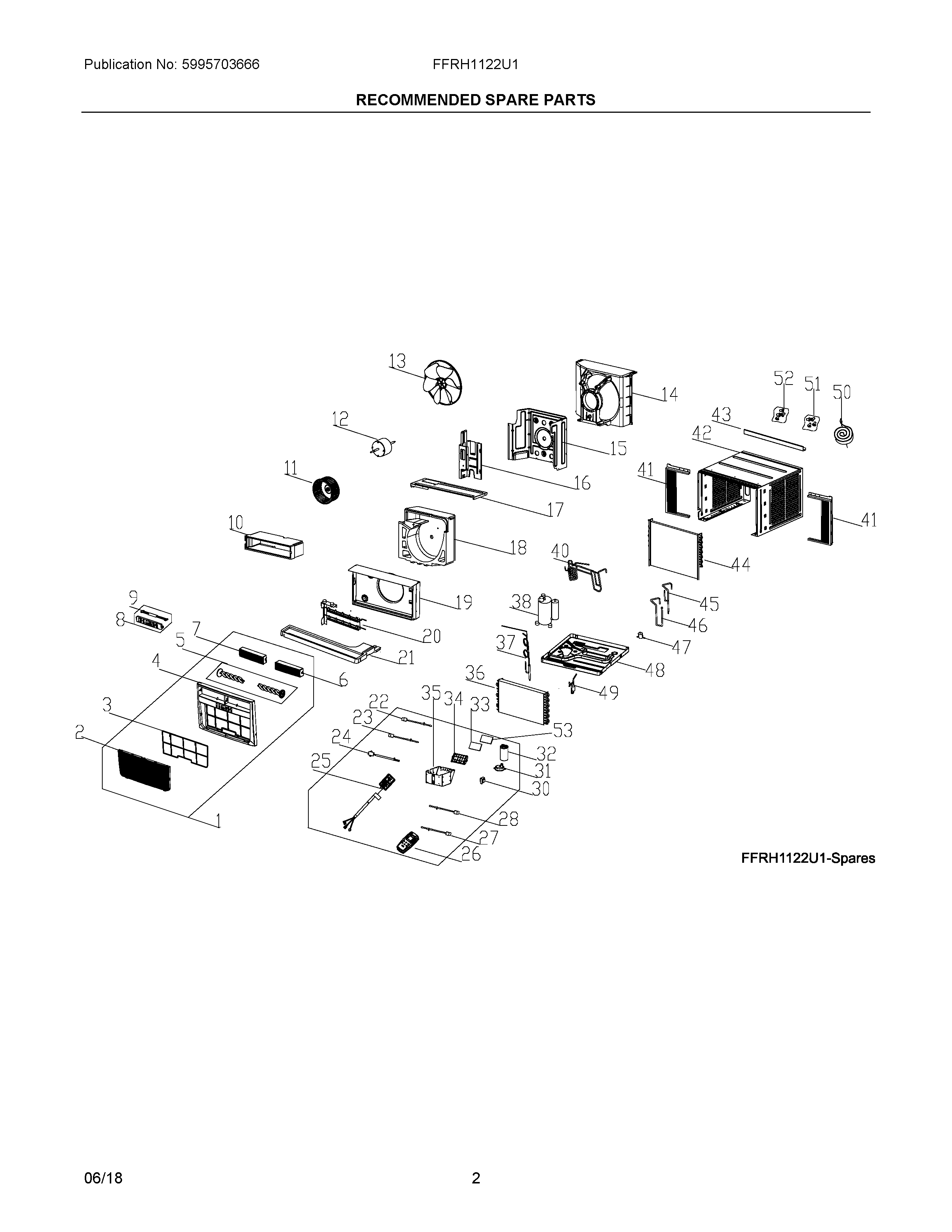

FFRH1122U1E0 02 – RECOMMENDED SPARE PARTS

FFRH1122U1E0 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRH1122U1E0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Front Assembly,complete panel
2· Panel,front
35304535825 Frigidaire Air Filter
4· Frame,front assembly
55304483226 Frigidaire Air Conditioner Louver
65304483227 Frigidaire Air Conditioner Louver
7· Louver,horizontal ,left
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
10WCI 5304501888
115304471312 Frigidaire Air Conditioner Blower Wheel
125304501955 Frigidaire Air Conditioner Motor
135304471287 Frigidaire Air Conditioner Fan Blade
14WCI 5304501062
15WCI 5304501063
16WCI 5304501064
17WCI 5304501065
18WCI 5304501066
19WCI 5304501067
205304477339 Frigidaire Air Conditioner Heater
21WCI 5304501068
22SENSOR
235304512374 Frigidaire Air Conditioner Sensor
245304512375 Frigidaire Air Conditioner Sensor
255304501891 Frigidaire Air Conditioner Power Cord
265304492053 Frigidaire Air Conditioner Remote Control
275304483216 Frigidaire Air Conditioner Sensor
285304490066 Frigidaire Air Conditioner Sensor
305304512409 Frigidaire Air Conditioner Transformer
315304512422 Frigidaire Clamp
325304512435 Frigidaire Air Conditioner Capacitor
335304512436 Frigidaire Air Conditioner PC Board
345304512372 Frigidaire Holder
35WCI 5304517038
365304501957 Frigidaire Air Conditioner Evaporator
37TUBE, CAPILLARY
385304512438 Frigidaire Air Conditioner Compressor
405304501958 Frigidaire Air Conditioner Valve
41Window Filler Kit,slider panels ,accordion
42Cabinet,wrapper/sleeve
43Rail,shutter ,top channel
445304501959 Frigidaire Air Conditioner Condenser
45TUBE, DISCHARGE
46TUBE, SUCTION
47Valve,drain
48WCI 5304501896
495304476367 Frigidaire Air Conditioner Filter Drier
50Seal kit,window ,foam strips
51Hardware Kit,installation
52Screw Kit,top rail mount
53WCI 5304512404
