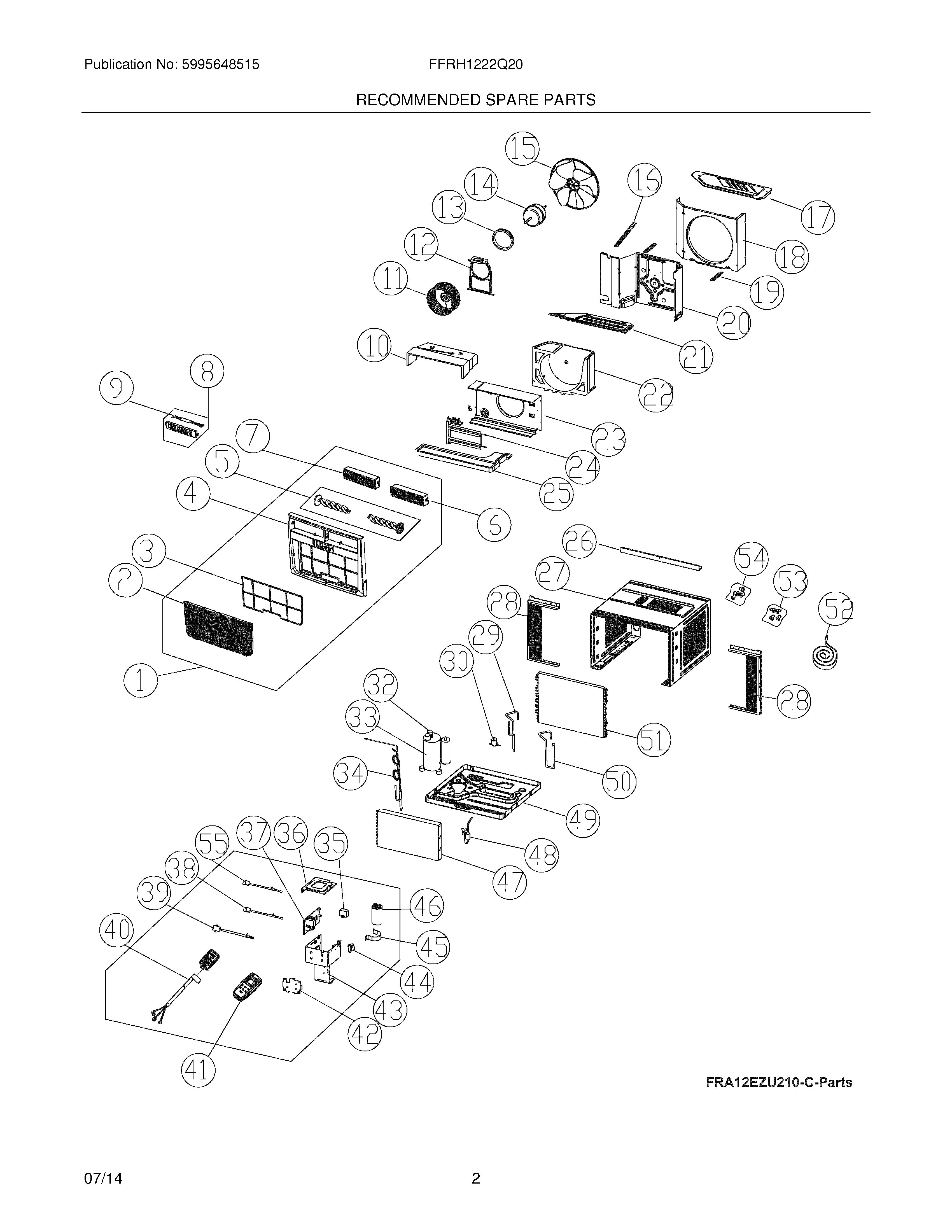

FFRH1222Q20 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	FRONT ASSEMBLY, COMPLETE PANEL
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	FRAME, FRONT ASSEMBLY
5	5304483207 Frigidaire Louver
6	LOUVER, HORIZONTAL, RIGHT
7	LOUVER,HORIZONTAL,LEFT
8	PC Board,display/input
9	5304495009 Frigidaire Air Conditioner Wire
10	WCI 5304483210
11	5304471312 Frigidaire Air Conditioner Blower Wheel
12	WCI 5304471285
13	WCI 5304471286
14	WCI 5304483231
15	5304471287 Frigidaire Air Conditioner Fan Blade
16	WCI 5304471254
17	WCI 5304471288
18	WCI 5304483211
19	WCI 5304471253
20	WCI 5304487602
21	WCI 5304476388
22	WCI 5304471301
23	WCI 5304495588
24	5304476390 Frigidaire Air Conditioner Heater Assembly
25	WCI 5304471265
26	Rail,shutter ,top channel
27	Cabinet,wrapper/sleeve
28	Window Filler Kit,slider panels ,accordion
29	WCI 5304495589
30	Valve,drain
32	WCI 5304476298
33	WCI 5304475747
34	WCI 5304482528
35	5304471077 Frigidaire Air Conditioner Capacitor
36	WCI 5304483214
37	PC Board,main ,control/power
38	5304512374 Frigidaire Air Conditioner Sensor
39	5304512375 Frigidaire Air Conditioner Sensor
40	Power Cord,electric ,LCDI
41	REMOTE CONTROL TRANSMITTER
42	WCI 5304487610
43	WCI 5304483218
44	5304471063 Frigidaire Air Conditioner Transformer
45	Strap,capacitor clamp
46	WCI 5304493242
47	WCI 5304495593
48	5304476367 Frigidaire Air Conditioner Filter Drier
49	WCI 5304476402
50	WCI 5304495594
51	WCI 5304495595
52	Seal kit,window ,foam strips
53	Hardware Kit,installation
54	Screw Kit,top rail mount
55	SENSOR
