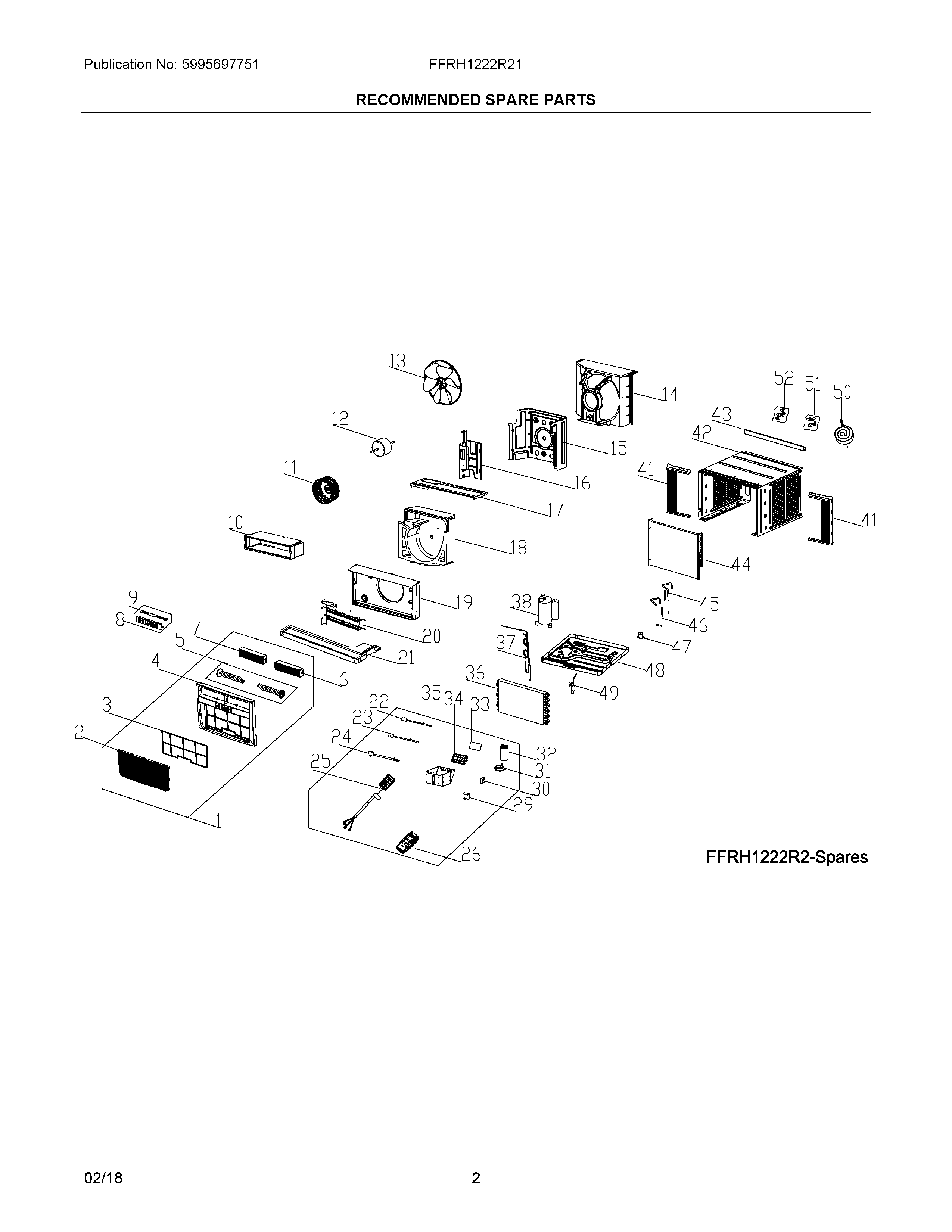

FFRH1222R21 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1FRONT ASSEMBLY, COMPLETE PANEL
2Panel,front grill
35304535825 Frigidaire Air Filter
4FRAME, FRONT ASSEMBLY
55304483207 Frigidaire Louver
6LOUVER, HORIZONTAL, RIGHT
7LOUVER,HORIZONTAL,LEFT
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
10WCI 5304501888
115304471312 Frigidaire Air Conditioner Blower Wheel
125304499948 Frigidaire Air Conditioner Motor
135304471287 Frigidaire Air Conditioner Fan Blade
14WCI 5304501062
15WCI 5304501063
16WCI 5304501064
17WCI 5304501065
18WCI 5304501066
19WCI 5304501067
205304476390 Frigidaire Air Conditioner Heater Assembly
21WCI 5304501068
22SENSOR
235304512374 Frigidaire Air Conditioner Sensor
245304512375 Frigidaire Air Conditioner Sensor
255304500875 Frigidaire Air Conditioner Power Cord
26REMOTE CONTROL TRANSMITTER
29CAPACITOR, FAN MOTOR
305304512376 Frigidaire Air Conditioner Transformer
315304512422 Frigidaire Clamp
325304512431 Frigidaire Capacitor
335304512432 Frigidaire Air Conditioner PC Board
345304512372 Frigidaire Holder
35WCI 5304512433
365304501071 Frigidaire Evaporator
375304501072 Frigidaire Tube
38COMPRESSOR, BUILT-IN OVLD
41Window Filler Kit,slider panels ,accordion
42Cabinet,wrapper/sleeve
43Rail,shutter ,top channel
445304501055 Frigidaire Condenser
45WCI 5304501073
46WCI 5304501074
47Valve,drain
48WCI 5304501896
495304476367 Frigidaire Air Conditioner Filter Drier
50Seal kit,window ,foam strips
51Hardware Kit,installation
52Screw Kit,top rail mount
