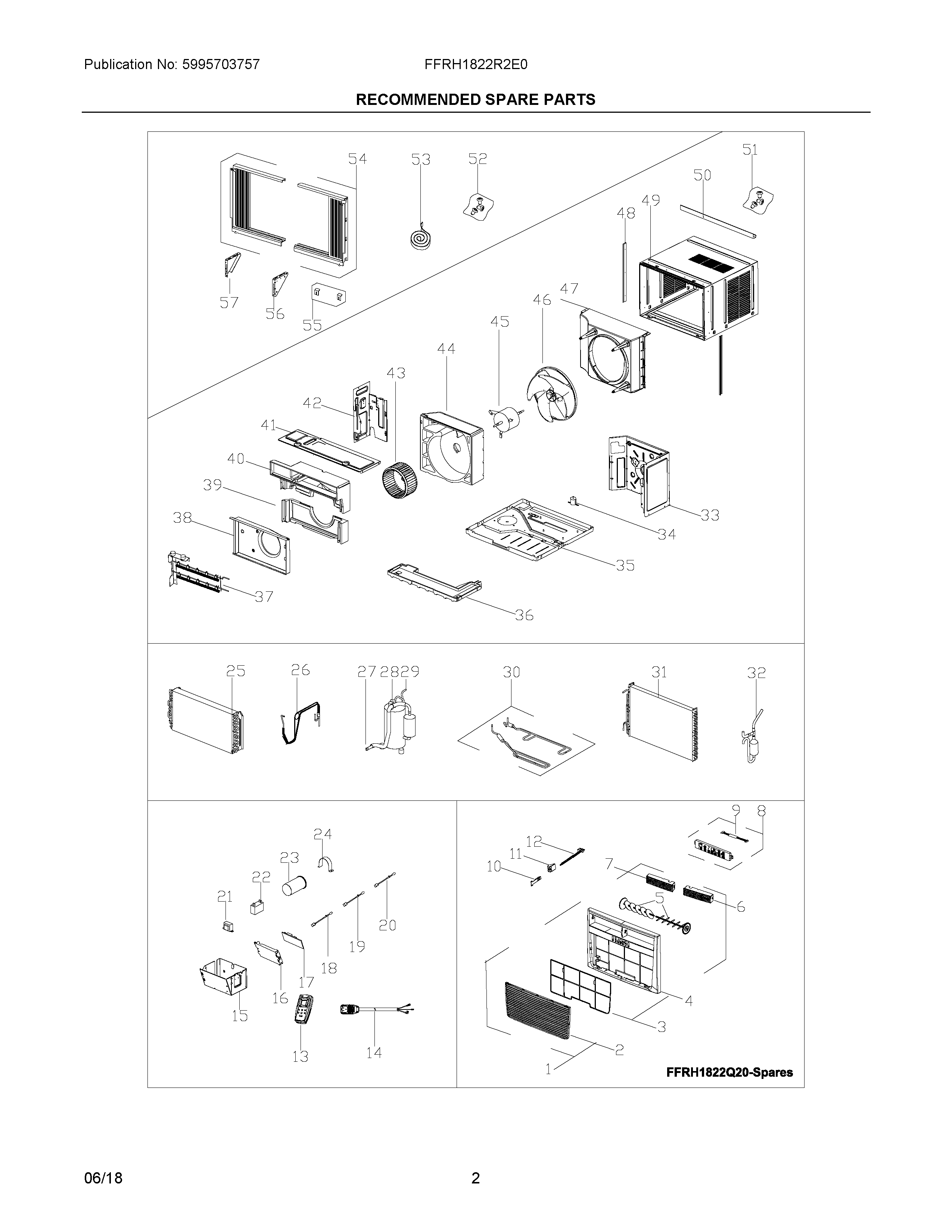

FFRH1822R2E0 02 – RECOMMENDED SPARE PARTS

FFRH1822R2E0 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRH1822R2E0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NIWCI 5304512404
1WCI 5304483061
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304483062
55304476946 Frigidaire Louver
6LOUVER, HORIZONTAL, LEFT
75304483063 Frigidaire Louver Assembly
8PC Board,display/input
95304512412 Frigidaire Air Conditioner Electrical Harness
10WCI 5304512405
11LINK, LEVER/VENT DOOR, DETENTE
125304512407 Frigidaire Guide Sleeve
13REMOTE CONTROL TRANSMITTER
145304500901 Frigidaire Air Conditioner Power Cord
155304512408 Frigidaire Control Box
165304512372 Frigidaire Holder
17WCI 5304512353
185304504724 Frigidaire Sensor
195304512375 Frigidaire Air Conditioner Sensor
20SENSOR
215304512376 Frigidaire Air Conditioner Transformer
225304482883 Frigidaire Air Conditioner Capacitor
235304499940 Frigidaire Air Conditioner Capacitor
24WCI 5304500876
255304500890 Frigidaire Air Conditioner Evaporator
265304500891 Frigidaire Air Conditioner Tube
275304495654 Frigidaire Air Conditioner Tube
285304512413 Frigidaire Air Conditioner Compressor
295304500892 Frigidaire Air Conditioner Tube
305304495628 Frigidaire Air Conditioner Tube
315304512411 Frigidaire Air Conditioner Condenser
325304476257 Frigidaire Air Conditioner Filter Drier
33WCI 5304495630
34Valve,drain
35Base,unit chassis
36Tray,drip pan
375304529410 Frigidaire Heater
38WCI 5304495739
39WCI 5304495740
405304496322 Frigidaire Scroll
415304495632 Frigidaire Cover
42WCI 5304495633
435304529414 Frigidaire Blower-Fan
44Scroll,blower housing ,rear
455304499941 Frigidaire Air Conditioner Motor
46BLADE-FAN
475304495634 Frigidaire Air Conditioner Shroud
48Retainer,shutter ,cabinet sides
49Cabinet,wrapper/sleeve
50Rail,shutter track ,top angle
51Screw Kit,top rail mount
52Hardware,mounting ,screws/locks
53Seal kit,foam ,sash & rails
54Window Filler Kit,slider panel
55Bracket,sill angle
56Bracket,mounting ,right window
57Bracket,mounting ,left window
