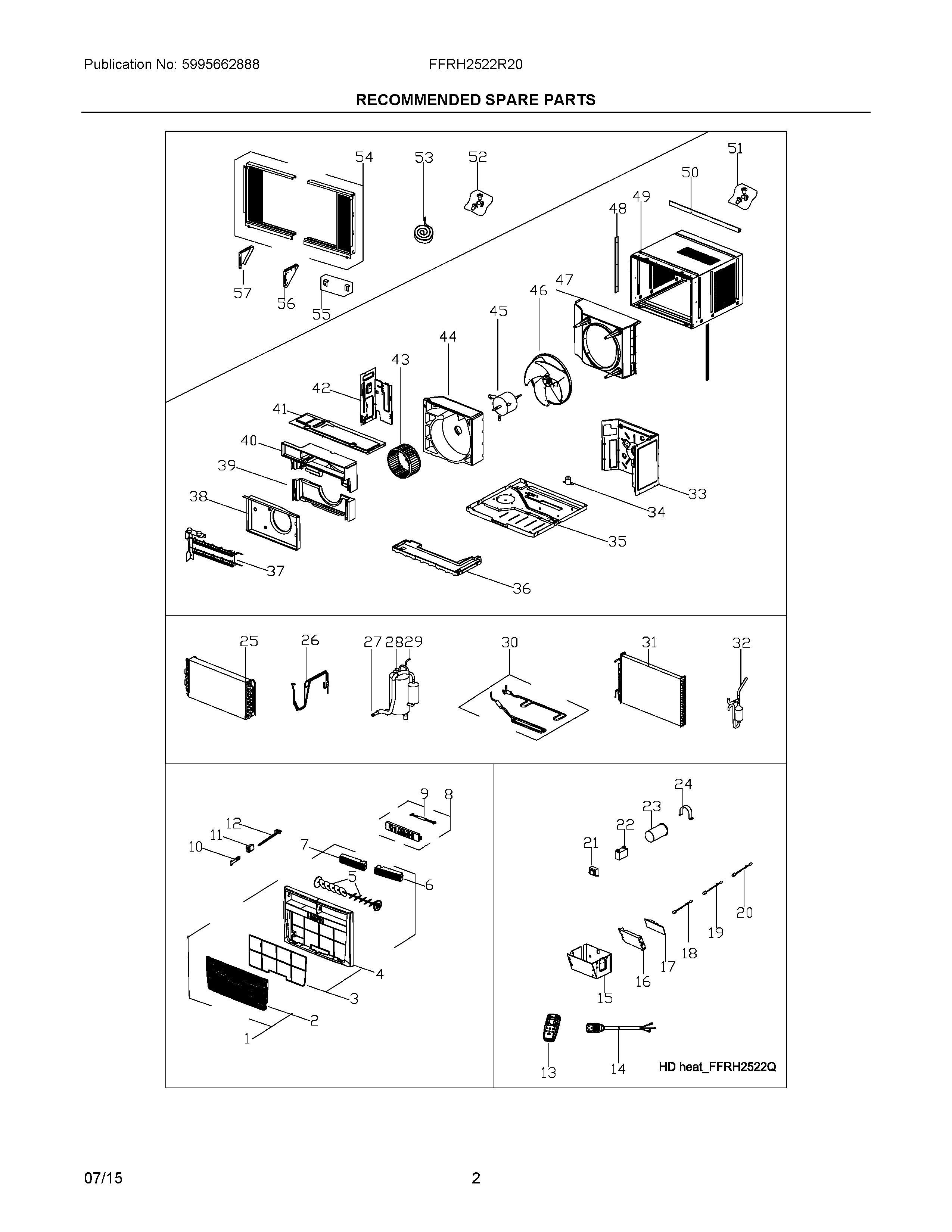

FFRH2522R20 02 – RECOMMENDED SPARE PARTS

FFRH2522R20 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRH2522R20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304482932
25304477143 Frigidaire Front Grille
3FILTER
4WCI 5304482933
55304477146 Frigidaire LOUVER
65304482934 Frigidaire LOUVER
75304482935 Frigidaire LOUVER
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
125304477149 Frigidaire Air Conditioner Door Assembly
13REMOTE CONTROL TRANSMITTER
145304500901 Frigidaire Air Conditioner Power Cord
15WCI 5304495028
16WCI 5304495029
17WCI 5304501863
185304512374 Frigidaire Air Conditioner Sensor
195304512375 Frigidaire Air Conditioner Sensor
20SENSOR
215304471063 Frigidaire Air Conditioner Transformer
225304482883 Frigidaire Air Conditioner Capacitor
235304493844 Frigidaire Air Conditioner Capacitor
24WCI 5304500876
255304500877 Frigidaire Air Conditioner Evaporator
265304500878 Frigidaire Air Conditioner Tube
275304495033 Frigidaire Air Conditioner Tube
285304499945 Frigidaire Air Conditioner Compressor
295304495034 Frigidaire Air Conditioner Tube
305304500879 Frigidaire Air Conditioner Tube
315304500880 Frigidaire Air Conditioner Condenser
325304476257 Frigidaire Air Conditioner Filter Drier
33WCI 5304495036
34Valve,drain
35WCI 5304482939
36Tray,drip pan ,foam
375304529410 Frigidaire Heater
38WCI 5304496265
39WCI 5304496266
40WCI 5304496267
41WCI 5304495038
42WCI 5304495039
435304529414 Frigidaire Blower-Fan
44WCI 5304483708
455304482882 Frigidaire Air Conditioner Motor
46BLADE-FAN
475304495040 Frigidaire Air Conditioner Shroud
48Retainer,shutter ,cabinet sides
49Cabinet,wrapper/sleeve
50Rail,shutter track ,top channel
51Screw Kit,top rail mount
52Hardware,mounting ,screws/locks
53Seal kit,foam ,sash & rails
54Window Filler Kit,slider panels ,accordion
55Bracket,sill angle
56Bracket,mounting ,right window
57Bracket,mounting ,left window
