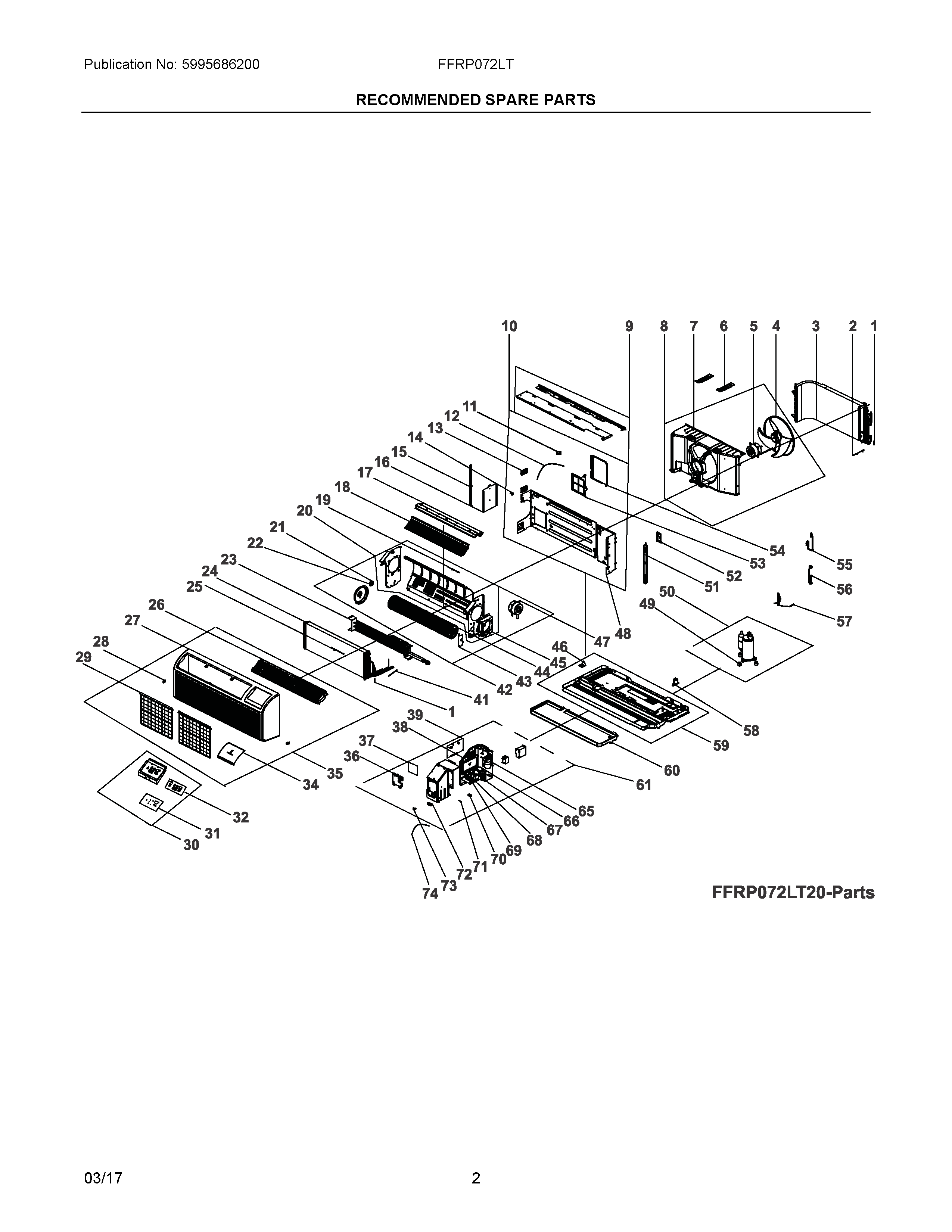

FFRP072LT30 02 – RECOMMENDED SPARE PARTS

FFRP072LT30 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRP072LT30 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	SLEEVE, TEMP SENSOR
2	WCI 5304510599
3	WCI 5304510600
4	5304483797 Frigidaire Air Conditioner Fan Blade
5	5304510604 Frigidaire Assembly Shroud
6	WCI 5304510602
7	WCI 5304510603
9	WCI 5304510605
10	WCI 5304510606
11	CLAMP, PLASTIC, (2)
12	WCI 5304510608
13	WCI 5304510609
14	WCI 5304510610
15	SUPPORT, BULKHEAD, OUTER LEFT
16	WCI 5304510611
17	WCI 5304510612
18	WCI 5304510613
19	WCI 5304510614
20	WCI 5304510615
21	HOUSING, BEARING BLOCK
22	WCI 5304510616
23	WCI 5304510648
24	WCI 5304510618
25	5304483971 Frigidaire Air Conditioner Sensor
26	5304483944 Frigidaire Air Conditioner Grill
27	5304483945 Frigidaire Air Conditioner Panel
28	CLIP, MOUNTING, FRONT PANEL
29	5304525609 Frigidaire Air Conditioner Filter
30	5304510619 Frigidaire Air Conditioner Control Panel
31	WCI 5304510620
32	5304510621 Frigidaire Air Conditioner Board
34	5304483961 Frigidaire Air Conditioner Cover
35	5304510622 Frigidaire Front Panel
36	WCI 5304510623
37	5304510624 Frigidaire Air Conditioner PC Board
38	WCI 5304510625
39	5304510626 Frigidaire Air Conditioner PC Board
41	5304459793 Frigidaire Air Conditioner Thermistor
43	WCI 5304510628
44	5304510629 Frigidaire Wheel
45	BRACKET, MOTOR SUPPORT
46	WCI 5304510630
47	5304510649 Frigidaire Duct Air
48	WCI 5304510650
49	WCI 5304510633
50	WCI 5304510634
51	SUPPORT, BULKHEAD, OUTER RIGHT
52	WCI 5304510635
53	WCI 5304510636
54	WCI 5304510637
55	WCI 5304510638
56	WCI 5304510639
57	WCI 5304510640
58	VALVE, DRAIN
59	WCI 5304510641
60	WCI 5304510642
61	WCI 5304510643
65	WCI 5304510644
66	5304483969 Frigidaire TRANSFORMER
67	5304510645 Frigidaire Capacitor
68	5304508681 Frigidaire Air Conditioner Capacitor
69	5304459674 Frigidaire Air Conditioner Terminal Block
70	5304484110 Frigidaire Air Conditioner Heat Sink
71	5304510646 Frigidaire Air Conditioner Fuse
72	5304483950 Frigidaire Air Conditioner Connector
73	5304483970 Frigidaire Air Conditioner Terminal
74	5304510651 Frigidaire Air Conditioner Power Cord
